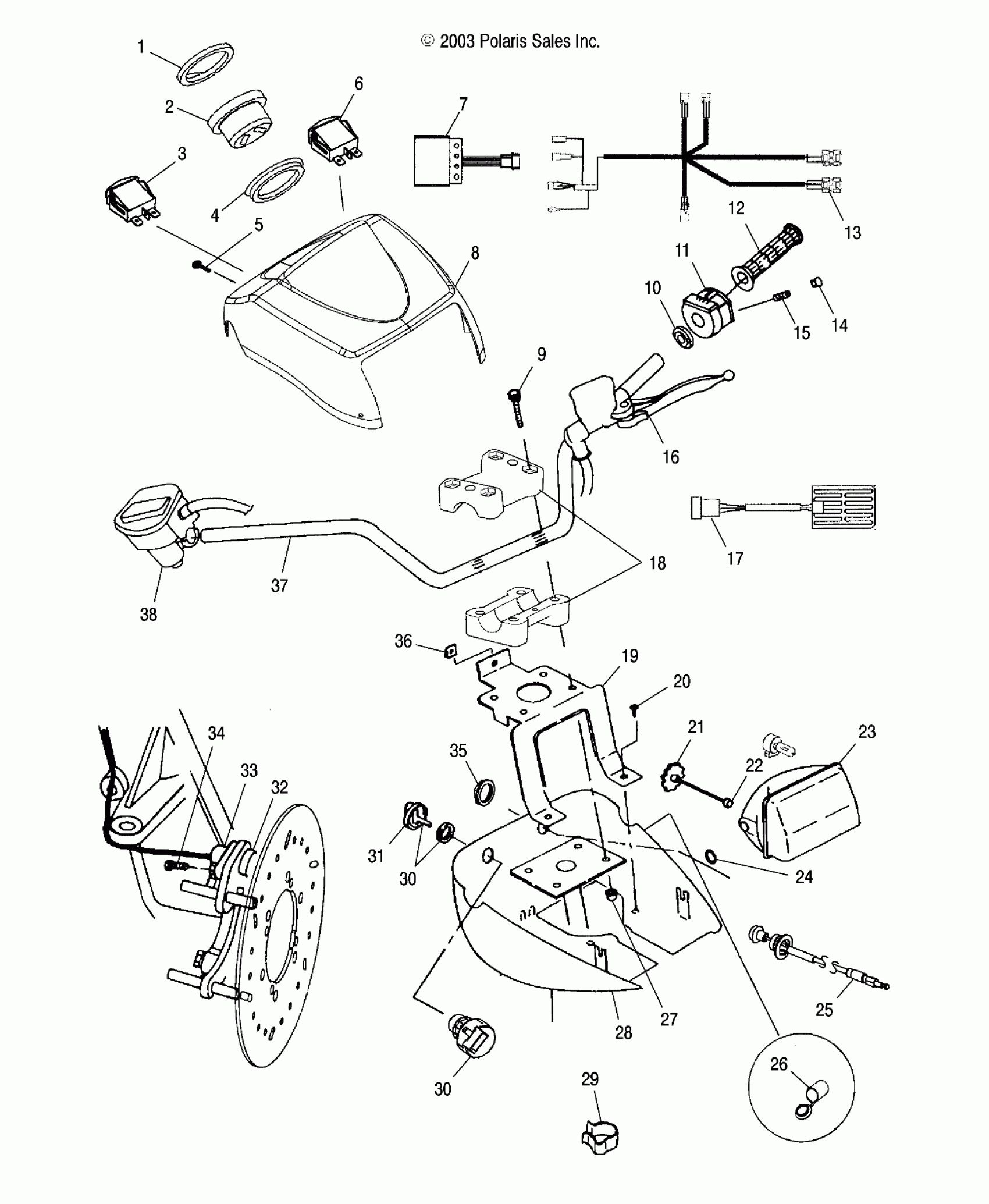

Polaris A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV HANDLEBAR AND HEADLIGHT POD - A04CH42AQ/AR/AS/AT/AV (4987258725C01) Diagram

#

Description
Price

1

Bezel

5434380

Unavailable

2

Cluster

3280431

$343.99

3

Switch, Thumb Warmer, Hi/Lo

4010964

$64.75

4

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

5

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

6

Switch, Hand Warmer, Hi/Lo (AT)(AV)

4010963

$60.70

7

Module, Load Shed (AT)(AV)

4010970

Unavailable

8

Pod, Headlight, Upper [AQ]

5434706-400

Unavailable

8

Pod, Headlight, Upper (AR)

5434706-053

Unavailable

8

Pod, Headlight, Upper (AS)

5434706-341

Unavailable

8

Pod, Headlight, Upper [AT]

5435330-455

Unavailable

8

Pod, Headlight, Upper [AV]

5435330-456

Unavailable

9

SCREW

7517238

$4.79

10

Spacer, Switch, LH

5433903

Unavailable

11

Switch, Handlebar, Hi/Lo/Off

4010592

$38.60

12

Grip, Handlebar

5433834-070

$24.27

13

Harness, Wire, Warmers

2461213

$99.99

14

Plug

5432952

$5.59

15

SCREW, SET

7517625

$4.79

16

ASM., MASTER CYLINDER [SEE CONTROLS - MASTER CYLINDER/BRAKE LINE PG. B5 FOR DETAILS]

-------

Unavailable

17

Asm., Hand Warmer (AT)(AV)

2410418

Unavailable

18

Block, Handlebar (If built after 9/29/03)

5631973

$27.99

18

Block, Handlebar, Pegged (If built after 9/29/03)

5631972

$27.99

18

Block, Handlebar, Pegged (If built before 9/29/03)

5631146

$10.71

18

Block, Handlebar (If built before 9/29/03)

5631147

Unavailable

19

Bracket, Pod Mounting

5244969-067

$44.99

20

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

21

KNOB, ADJUSTING

4032079

$23.99

22

Rod, Adjusting

4032078

Unavailable

23

KIT-HARNESS,HEADLIGHT

2204143

$71.99

23

BULB-HEADLIGHT,50 WATT

4010253

$34.99

23

Asm., Headlamp

2410268

$109.27

24

O-RING

5410163

$1.60

25

Cable, Choke (If built before 8/11/03)

7081008

$79.99

25

Cable, Choke (If built after 8/11/03)

7081176

$77.21

26

Receptacle, Pod Mount, 12V

4010638

$24.27

27

Nut, Nylok

7542122

$1.49

28

Pod, Headlight

5433762-070

$114.99

29

Clip, Cable Retaining

7080631

$6.29

30

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

30

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

30

Switch, Key, 3 Position [Incl. Key]

4011002

Unavailable

30

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

30

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

30

Switch, Key, 3 Position [Incl. Key]

4011002

Unavailable

31

KEY SWITCH KEY COVER

5433534

$12.35

32

CAP

5132382

$23.99

33

Sensor

4010298

$111.99

34

Screw

7517658

$5.59

35

Nut, Choke

7080922

$3.19

36

CLIP, SCREW

7670127

$9.59

37

Tube, Handlebar

5242987-067

$114.99

38

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B6, REF. 5]

-------

Unavailable
