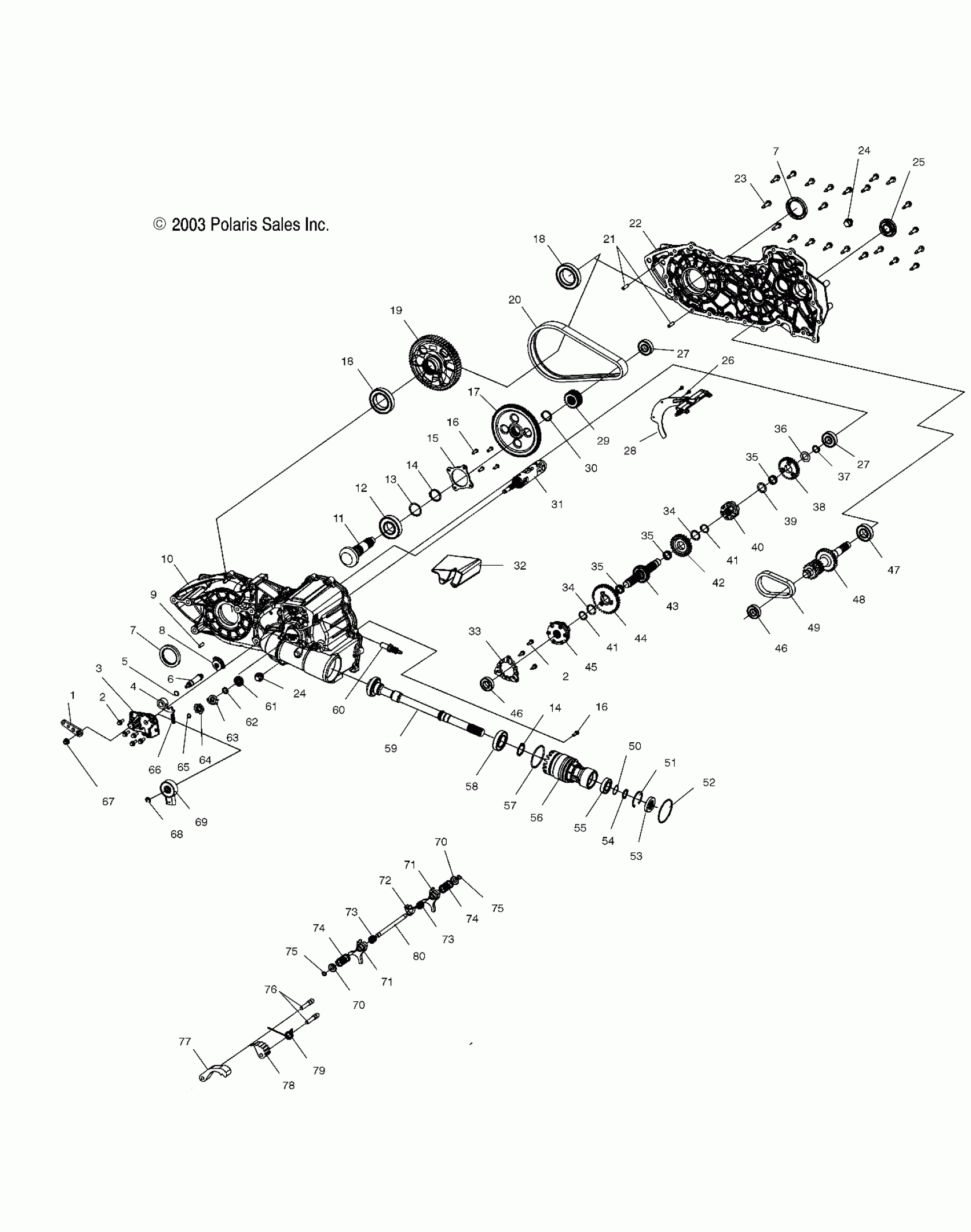

Polaris A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV GEARCASE - A04CH42AQ/AR/AS/AT/AV (4987258725C13) Diagram

#

Description
Price

-

Asm., Gearcase

1341450

Unavailable

1

Bellcrank

3233906

Unavailable

2

SCREW

3233826

$9.52

2

SCREW

3233826

$9.52

3

Cover, Gear

3233827

$113.32

4

Pawl, Detent

3233829

$36.41

5

O-RING

3233869

$5.65

6

SHAFT, SHIFT

3233831

$60.70

7

SEAL, TRIPLE LIP

3233878

$32.37

7

SEAL, TRIPLE LIP

3233878

$32.37

8

GEAR-SECTOR,31T

3233832

$36.41

9

TUBE, VENT

3233524

$9.99

10

Gearcase, RH

3234059

Unavailable

11

Shaft, Center Drive

3234066

$216.67

12

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

13

Spacer

3234064

$3.41

14

RING, RETAINING

3233364

$6.46

14

RING, RETAINING

3233364

$6.46

15

Cover, Bearing

3234063

$32.37

16

SCREW

3234086

$5.56

16

SCREW

3234086

$5.56

17

GEAR, OUTPUT, 91T

3234062

$267.13

18

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

18

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

19

Subasm., Shaft, 59T, Final Output w/Bearings [Incl. 2 of Ref. 18]

3234421

$999.99

20

CHAIN

3234057

$279.27

21

PIN, DOWEL

3233247

$8.99

22

Gearcase, LH

3234056

Unavailable

23

Screw

3233846

$7.14

24

PLUG, MAGNETIC

3234529

$15.37

24

PLUG

3233794

$15.37

24

PLUG, MAGNETIC

3234529

$15.37

24

PLUG

3233794

$15.37

25

Seal, Dual Lip

3233874

$32.37

26

SCREW

3233749

$5.65

27

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

27

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

28

DEFLECTOR, OIL

3234061

$28.32

29

SPROCKET, 19T

3234060

$242.84

30

RING, RETAINING

3233699

$7.27

31

DRUM, SHIFT

3234360

$182.13

32

Baffle, Oil

3234088

$30.32

33

PLATE, PARK

3233915

$40.46

34

WASHER

3233851

$10.32

34

WASHER

3233851

$10.32

35

BEARING, NEEDLE

3233718

$35.71

35

BEARING, NEEDLE

3233718

$35.71

35

BEARING, NEEDLE

3233718

$35.71

36

WASHER, THRUST

3233176

$9.52

37

RING, RETAINING

3234067

$7.94

38

Gear, 28T

3234068

Unavailable

39

WASHER

3233855

$10.32

40

Dog, Engagement

3234070

$97.13

41

RING, RETAINING

3233850

$10.32

41

RING, RETAINING

3233850

$10.32

42

Sprocket, 24T

3233854

$169.99

43

Shaft, Reverse, 26T

3234071

$250.94

44

GEAR, 33T

3233852

$246.89

45

Dog, Engagement

3234069

$153.79

46

Bearing, Ball

3234074

Unavailable

46

Bearing, Ball

3234074

Unavailable

47

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

48

Asm., Input Shaft

3234075

$409.99

49

Chain, Silent

3233036

Unavailable

50

SPACER

3233357

$24.99

51

Ring, Retaining

3234092

$12.99

52

O-Ring

3234076

$11.99

53

Seal, Triple Lip

3233788

$32.37

54

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

55

Bearing, Ball

3233305

$31.75

56

Tube, Snorkel

3234085

Unavailable

57

O-Ring

3234084

Unavailable

58

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.68

59

Shaft, Snorkel

3234083

$294.49

60

Asm., Park Lockout

3233917

Unavailable

61

GEAR, 16T

3233839

$36.41

62

O-Ring

3233548

$33.24

63

DISC, LOCKOUT

3234081

$9.52

64

Star, Detent

3234082

$42.74

65

O-RING

3233076

$6.46

66

SPRING, COMPRESSION

3233830

$10.32

67

NUT, LOCK

3233961

$3.32

68

RING, RETAINING

3233834

$10.32

69

SWITCH

3233835

$142.49

70

WASHER-CUP

3234091

$9.52

70

WASHER-CUP

3234091

$9.52

71

FORK, SHIFT

3234077

$182.13

71

FORK, SHIFT

3234077

$182.13

72

COLLAR-SHIFT

3234073

$31.75

73

SPRING, COMPRESSION

3234089

$28.32

73

SPRING, COMPRESSION

3234089

$28.32

74

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

74

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

75

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

75

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

76

PIN, DOWEL

3233432

$7.14

77

SHOE, CHAIN TENSIONER

3233433

$32.37

78

CAM, CHAIN TENSIONER

3233434

$13.75

79

SPRING, TORSION

3233431

$24.27

80

RAIL, SHIFT SHAFT

3234079

$28.32
