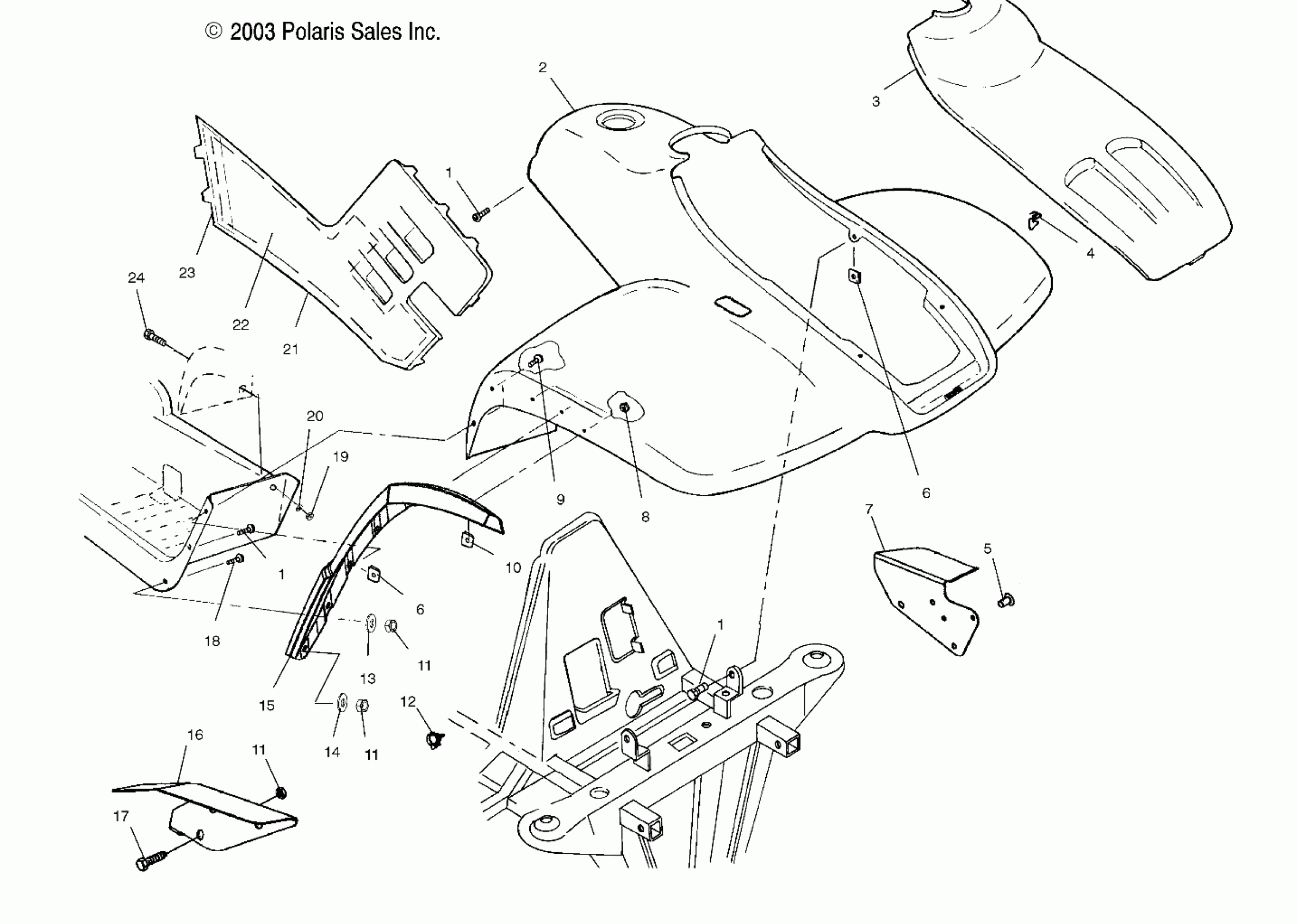

Polaris A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV FRONT CAB - A04CH42AQ/AR/AS/AT/AV (4987258725A05) Diagram

#

Description
Price

1

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

1

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

1

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

2

Cab, Front, Camo Green Met [AQ]

2632748-400

Unavailable

2

Cab, Front, Break-Up [AT]

2632818-455

$559.99

2

Cab, Front, Shadowgrass [AV]

2632818-456

$559.99

2

Cab, Front,Med. Yellow (AR)

2632748-053

Unavailable

2

Cab, Front, Sonic Blue Met. (AS)

2632748-341

Unavailable

3

Cover, Front, Camo Green Met [AQ]

5435110-400

Unavailable

3

Cover, Front, Break-Up [AT]

5435166-455

$246.89

3

Cover, Front, Shadowgrass [AV]

5435166-456

Unavailable

3

Cover, Front, Med. Yellow (AR)

5435110-053

Unavailable

3

Cover, Front,Sonic Blue Met. (AS)

5435110-341

Unavailable

4

Clip, Spring

7670085

$3.51

5

Rivet, Plasti-Loc

7621509

$1.49

6

NUT, U-TYPE SPEED

7670057

$1.49

6

NUT, U-TYPE SPEED

7670057

$1.49

7

Guard, Splash, LH/Pump Mount

5246872

$44.99

8

Nut, Speed

7670135

$4.79

9

SCREW

7512232

$1.49

10

Clip, Retaining

7670156

Unavailable

11

Nut, Nylok

7542122

$1.49

11

Nut, Nylok

7542122

$1.49

11

Nut, Nylok

7542122

$1.49

12

CLIP, ROSEBUD

4020139

$4.79

13

WASHER

7556034

$2.39

14

Washer, Flat

7555859

$1.49

15

Guard, Mud, Front, LH

5434702-070

Unavailable

15

Guard, Mud, Front, RH

5434703-070

Unavailable

16

Guard, Splash, RH

5246021-067

$28.15

17

SCREW

7512126

$4.79

18

Screw

7515158

$4.79

19

Nut, Nylok

7541925

$1.49

20

WASHER

7555792

$4.79

21

Foam, LH

5812138

$6.39

21

Panel, Side, Green Met, LH [AQ]

5435322-400

$87.30

21

Panel/Foil, Green Met, RH [AQ]

2632471-400

Unavailable

21

Panel, Side, Break-Up, LH [AT]

5435335-455

Unavailable

21

Panel/Foil, Break-Up, RH [AT]

2632819-455

$165.86

21

Panel, Side, Shadowgrass, LH [AV]

5435335-456

$186.65

21

Panel/Foil, Shadowgrass, RH [AV]

2632819-456

Unavailable

21

Panel, Side, Med. Yellow, LH (AR)

5435322-053

$95.19

21

Panel/Foil, Med. Yellow, RH (AR)

2632471-053

Unavailable

21

Panel, Side, Sonic Blue Met., LH (AS)

5435322-341

Unavailable

21

Panel/Foil, Sonic Blue Met., RH (AS)

2632471-341

Unavailable

22

Foil, Side Panel, RH [AT][AV]

5812326

Unavailable

22

Foil

5812327

Unavailable

23

Foil, Side Panel, RH

5811491

Unavailable

24

Screw

7512085

Unavailable
