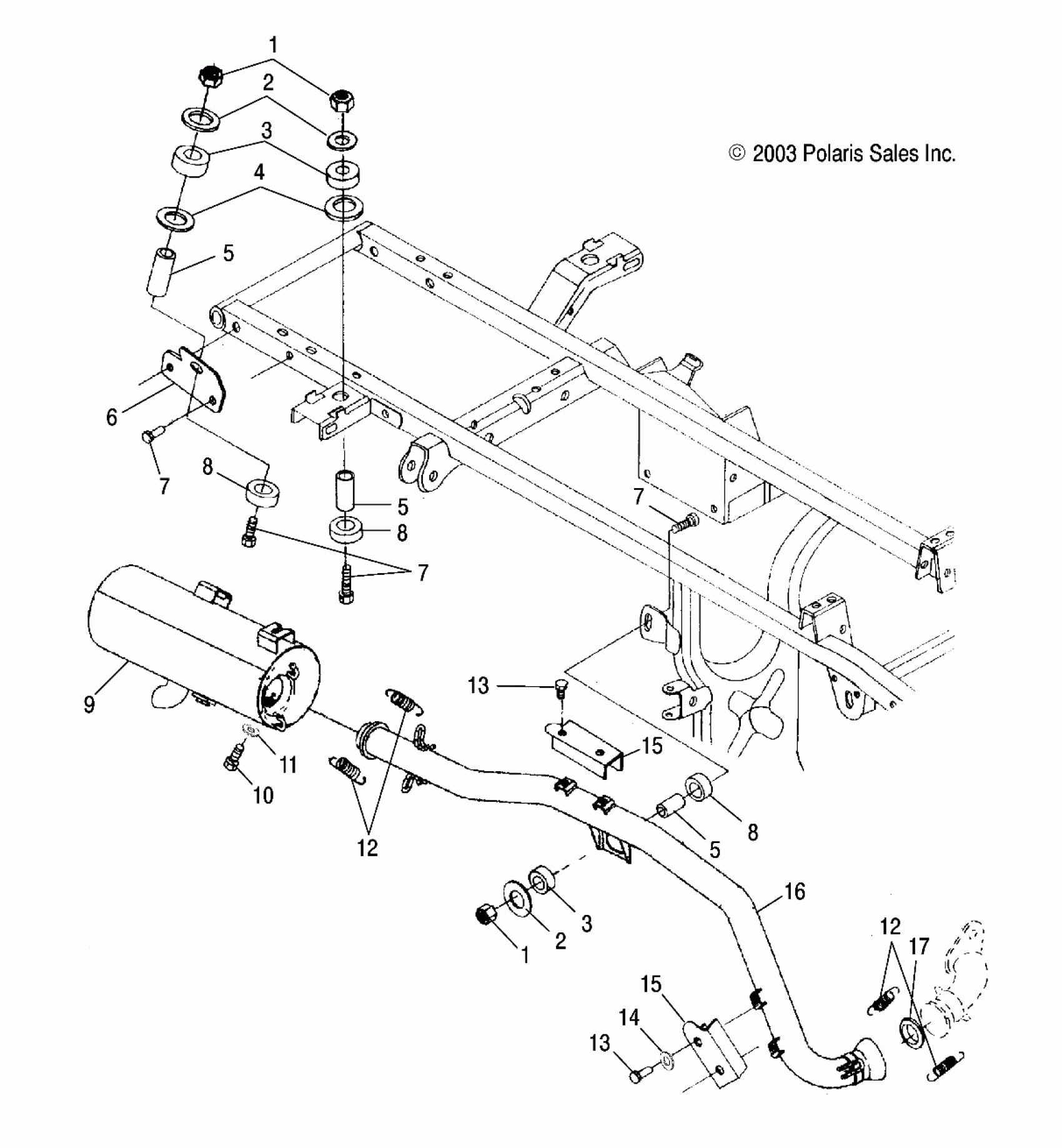

Polaris A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV EXHAUST SYSTEM - A04CH42AQ/AR/AS/AT/AV (4987258725B01) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER, FLAT

7555716

$1.59

2

WASHER, FLAT

7555716

$1.59

3

WASHER, RUBBER

5410436

$1.59

3

WASHER, RUBBER

5410436

$1.59

4

Washer

7555863

$2.39

5

BUSHING

5010192

$6.39

5

BUSHING

5010192

$6.39

5

BUSHING

5010192

$6.39

6

BRACKET, SILENCER, FRAME

5241663

$10.39

7

BOLT, CARRIAGE

7515316

$2.39

7

BOLT, CARRIAGE

7515316

$2.39

7

BOLT, CARRIAGE

7515316

$2.39

8

Dampener, Vibration (If built before 11/03/03)

5410241

Unavailable

8

Dampener, Vibration (If built after 11/03/03)

5412508

$4.79

8

Dampener, Vibration (If built before 11/03/03)

5410241

Unavailable

8

Dampener, Vibration (If built after 11/03/03)

5412508

$4.79

8

Dampener, Vibration (If built before 11/03/03)

5410241

Unavailable

8

Dampener, Vibration (If built after 11/03/03)

5412508

$4.79

9

Silencer, Exhaust

1261042-029

Unavailable

10

BOLT

7512666

$2.39

11

WASHER, CLEAN OUT

7556230

$1.49

12

SPRING, EXHAUST

7041804

$7.99

12

SPRING, EXHAUST

7041804

$7.99

13

Screw

7515197

$1.49

13

Screw

7515197

$1.49

14

Washer

7555935

$2.39

15

Shield, Heat, Exhaust

5241678

Unavailable

15

Shield, Heat, Exhaust

5241678

Unavailable

16

Pipe, Exhaust

1261246-029

Unavailable

17

Seal, Exhaust

5243518

$27.99
