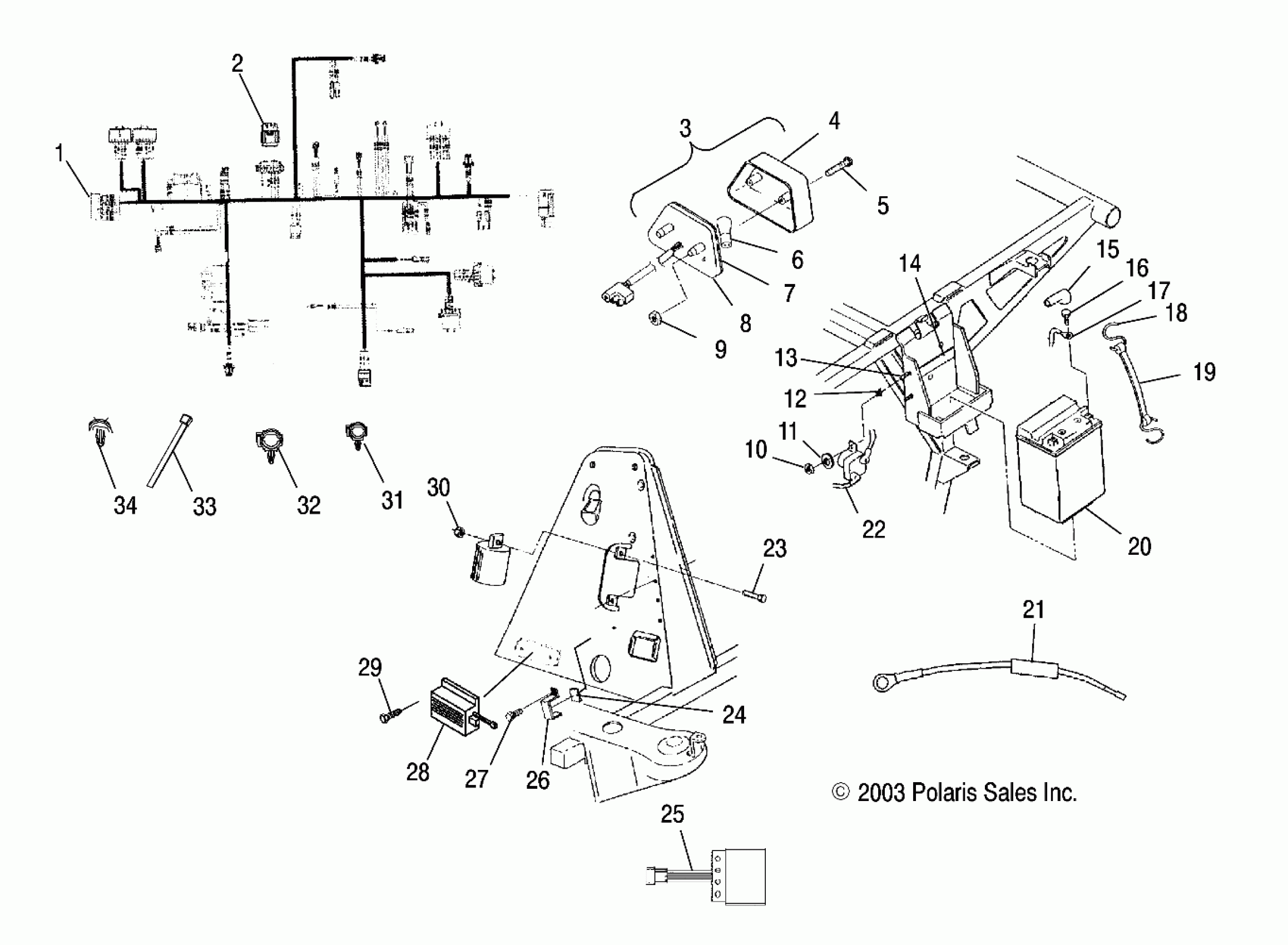

Polaris A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV ELECTRICAL/TAILLIGHT - A04CH42AQ/AR/AS/AT/AV (4987258725C12) Diagram

#

Description
Price

1

Kit, Fusible Link, .5MM

2202147

$79.99

1

Harness, Main

2461192

Unavailable

2

Kit, Harness, Resistor Module

2204890

$127.99

3

Asm., Taillight 12V [Incl. 4-9]

2410320

$63.99

4

Lens, Taillight

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

Bulb, Taillight

4030043

$6.46

7

Gasket, Taillight

4032045

$4.03

8

Backing, Taillight/Brakelight

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

NUT

7542105

$3.99

11

WASHER, SPRING LOCK

7552801

$1.59

12

Washer

7571602

$4.79

13

Screw

7512027

$1.49

14

PAD-BATTERY

5810290

$7.27

15

Cable, Battery/Solenoid [AQ]

4010094

Unavailable

16

Kit, Battery Bolt, Short

2200361

$3.99

17

Cable, Battery/Engine

4010095

Unavailable

18

Hook, Battery Strap

7010032

$1.59

19

Strap, Battery Holddown (If built after 8/18/03)

5412499

$4.62

19

Strap, Battery Holddown (If built before 8/18/03)

5410424

Unavailable

20

Battery

4010774

$107.99

21

Kit, Fusible Link

2202147

$79.99

22

Cable, Solenoid/Starter

4010093

$47.99

23

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

24

PAD, RACK MOUNT

5810455

$3.19

25

Module, Load Shed [AT][AV]

4010970

Unavailable

26

BRACKET, CDI

5246747

$7.99

27

SCREW

7512024

$4.79

28

Module, Controller

4010937

Unavailable

29

SCREW

7512024

$4.79

30

Nut, Nylok

7541925

$1.49

31

CLIP, ROSEBUD

4020139

$4.79

32

Clip, Rosebud

4020149

$6.39

33

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

MOUNT, CABLE TIE

7080965

$7.19
