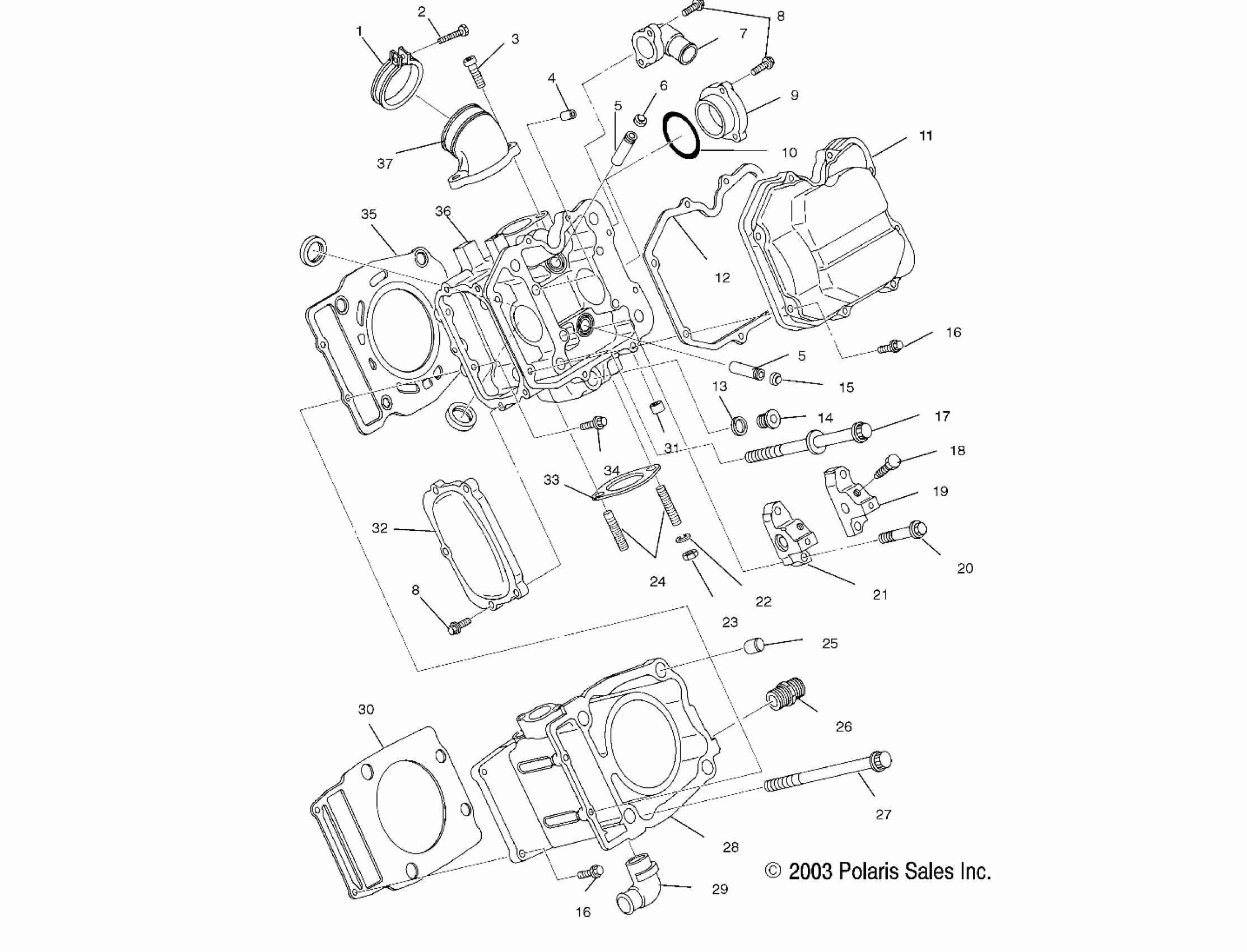

Polaris A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV CYLINDER - A04CH42AQ/AR/AS/AT/AV (4987258725D03) Diagram

#

Description
Price

1

Asm., Band, Adapter [Incl. 2]

3083166

$19.84

2

SCREW

3081497

$2.38

3

BOLT, SOCKET HEAD

3081330

$3.97

4

Pin, Straight

3084857

Unavailable

5

GUIDE, VALVE

3084994

Unavailable

5

GUIDE, VALVE

3084994

Unavailable

6

Seal, Intake Valve

3084858

$13.75

7

Adapter, Water Out

3085072

$64.75

8

BOLT, FLANGE

3084877

Unavailable

8

BOLT, FLANGE

3084877

Unavailable

9

ADAPTER, CAMSHAFT

3084866

Unavailable

10

O-RING

3084867

$24.27

11

COVER, ROCKER

3085073

$80.94

12

GASKET, ROCKER COVER

3085074

$32.37

13

GASKET

3084861

$4.84

14

PLUG

3084860

$7.14

15

SEAL, EXHAUST VALVE

3084859

$24.27

16

BOLT, FLANGE

3084874

Unavailable

16

BOLT, FLANGE

3084874

Unavailable

17

Bolt, Cylinder Head

3084875

Unavailable

18

BOLT, ROCKER SHAFT

3085854

Unavailable

19

SUPPORT, VALVE ROCKER SHAFT

3084864

Unavailable

20

BOLT

3084876

$4.76

21

SUPPORT, VALVE ROCKER SHAFT

3084863

$93.08

22

Washer, Lock

3080530

$3.17

23

Nut

3087199

Unavailable

24

Stud

3085326

Unavailable

25

PIPE, KNOCK

3087266

Unavailable

26

Union, Oil Pump

3084849

Unavailable

27

BOLT, FLANGE

3084873

Unavailable

28

Cylinder [Incl. 29]

3089241

Unavailable

29

Pipe, Elbow, 2

3084130

Unavailable

30

Gasket, Cylinder

3085370

$40.46

31

PLUG, BLIND

3084862

Unavailable

32

COVER, CAMSHAFT

3089242

$60.70

33

Gasket, Exhaust

3085075

$40.46

34

Bolt, Flange

3084215

$4.76

35

GASKET, HEAD

3085337

$66.49

36

Head, Cylinder [Incl. 4-6,13-15,24,31]

3085527

$849.99

37

ADAPTER

3084879

Unavailable
