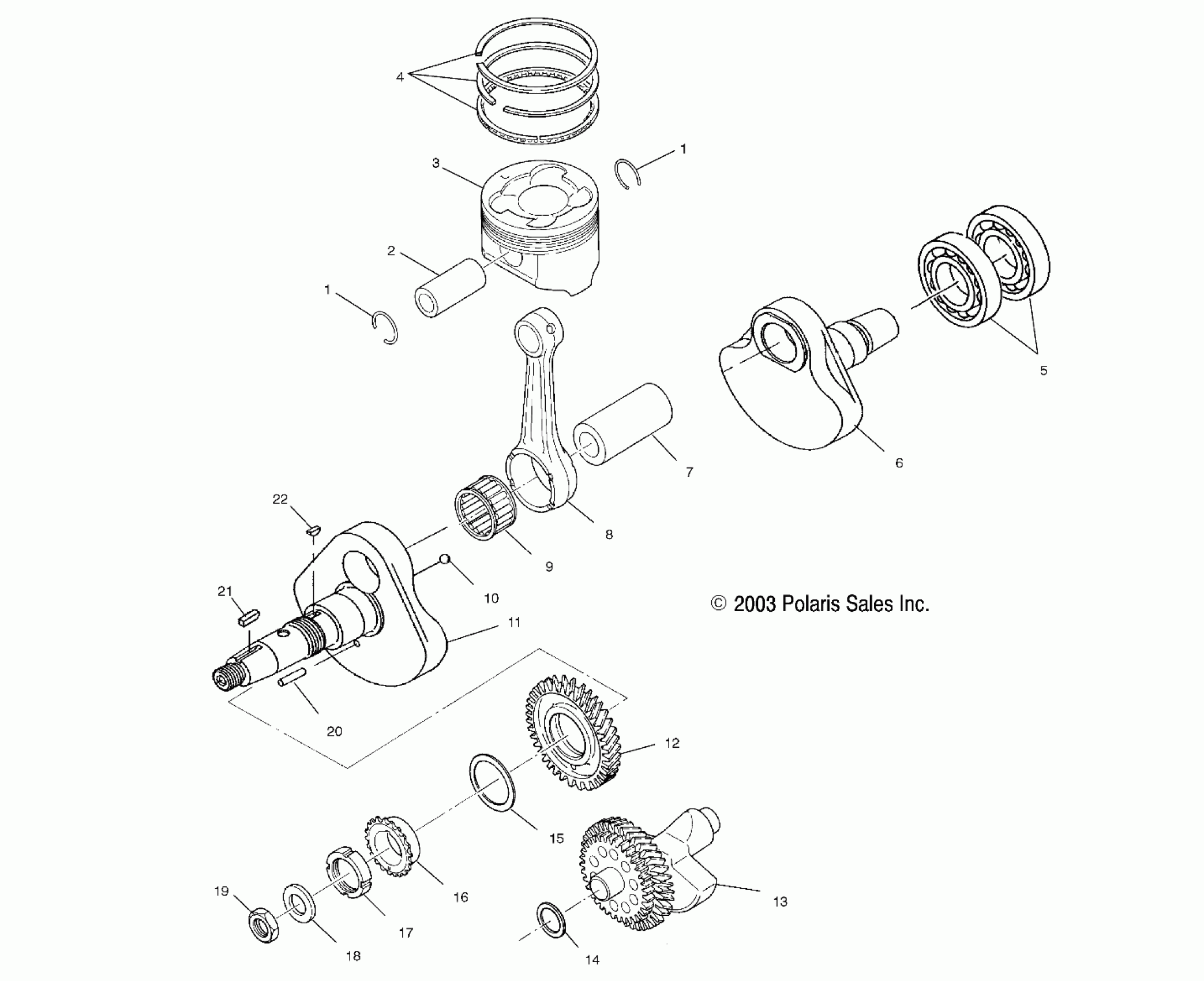

Polaris A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV CRANKSHAFT AND PISTON - A04CH42AQ/AR/AS/AT/AV (4987258725D04) Diagram

#

Description
Price

1

CLIP

3085534

Unavailable

1

CLIP

3085534

Unavailable

2

PIN, PISTON

-------

Unavailable

3

Piston Set [Std][Incl. 1,2]

3087230

Unavailable

3

Piston Set [0.25 mm O/S][Incl. 1,2]

3087231

Unavailable

3

Piston Set [0.50 mm O/S][Incl. 1,2]

3087232

Unavailable

4

Ring Set, Piston [Std]

3087233

$63.99

4

Ring Set, Piston [0.25 mm O/S]

3087234

$63.99

4

Ring Set, Piston [0.50 mm O/S]

3087235

$63.99

5

BEARING, BALL

3085815

$43.99

6

Crankshaft 2

3088719

$401.69

7

Pin, Crank

3085341

Unavailable

8

Rod, Connecting

3086206

Unavailable

9

Bearing, Large End

3085400

$78.56

10

BALL, STEEL

3085024

$5.59

11

Asm., Crankshaft [Incl. 6-12,20]

3089243

$615.08

11

Crankshaft 1

3089244

Unavailable

12

BALANCER, GEAR 1

3089245

Unavailable

13

Shaft, Balancer

3085404

Unavailable

14

Spacer [1.2]

3084897

$6.39

14

Spacer [0.8]

3084895

$6.39

14

Spacer [1.0]

3084896

$6.39

15

Spacer [1.2]

3084894

$19.99

15

Spacer [0.6]

3240088

$10.39

15

Spacer [1.0]

3084893

$19.99

15

Spacer [0.8]

3084892

$12.79

16

SPROCKET 1

3084882

Unavailable

17

NUT, SLIT

3085528

$35.99

18

WASHER

3086767

Unavailable

19

NUT, LOCK

3083905

Unavailable

20

PIN, DOWEL

3086838

$7.19

21

KEY

3081447

Unavailable

22

Key, Woodruff

3080130

Unavailable
