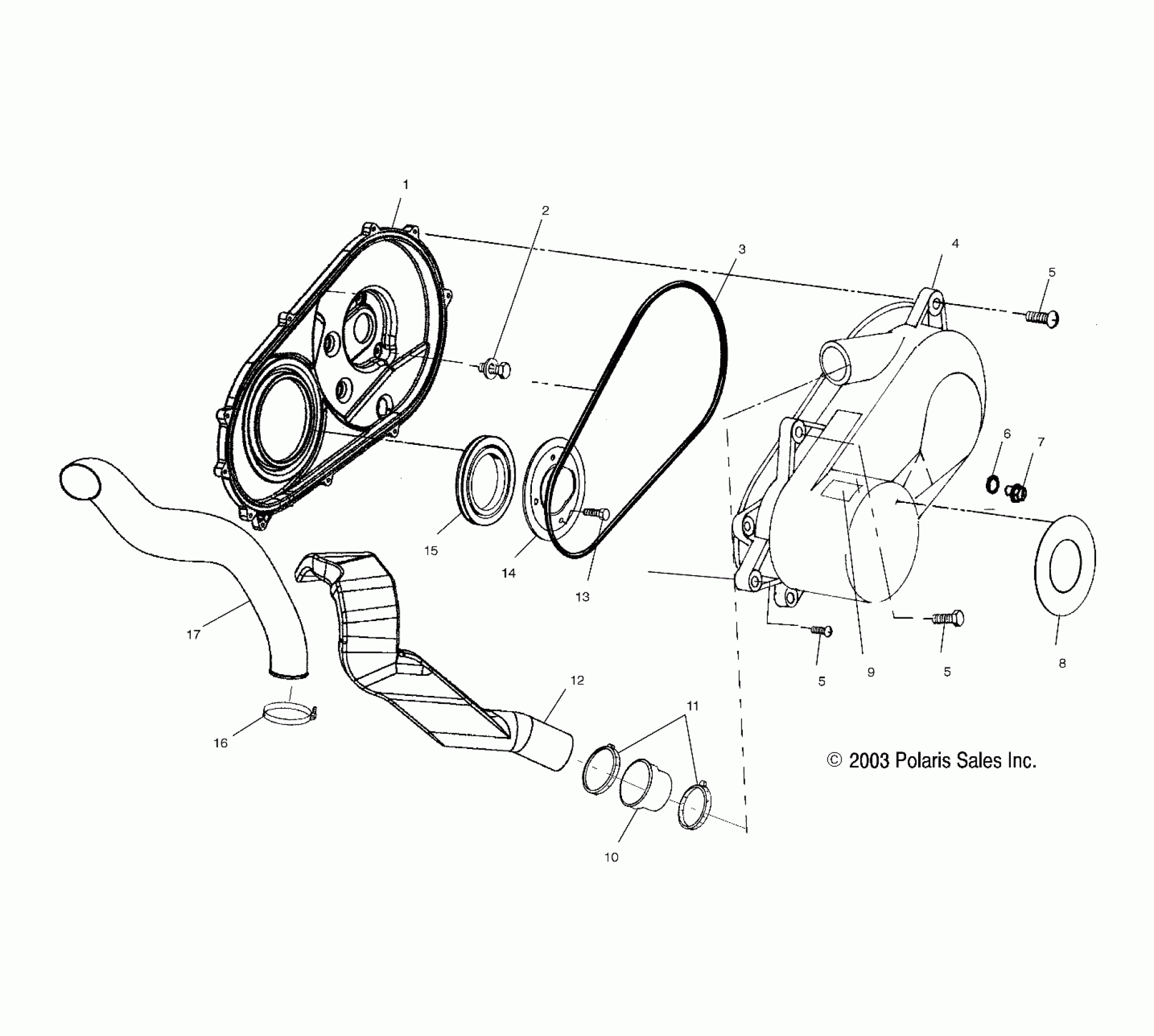

Polaris A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV CLUTCH COVER - A04CH42AQ/AR/AS/AT/AV (4987258725C08) Diagram

Description

Price

Kit, Inner Clutch Cover [Incl. 5]

2201851

$133.56

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.56

Seal, Cover, Clutch

5521578

$44.51

Asm., Clutch Cover, Outer

2633262

$186.17

SCREW

7512094

$1.59

SCREW

7512094

$1.59

SCREW

7512094

$1.59

O RING-.364X.504X.07

5410542

$4.84

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

Decal, "Automatic Transmission"

7074782

Unavailable

Decal, Warning, Clutch Cover

7078689

Unavailable

Boot, Duct

5411489

Unavailable

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

Duct, Clutch Outlet

5435235

Unavailable

SCREW AND WASHER [SEE CRANKCASE PG. D2, REF. 6]

----

Unavailable

BRACKET, CLUTCH, SEAL

5242046

$36.41

Seal, Cover Case

5410575

$44.51

Clamp, Narrow Band

7080511

$4.76

Duct, Clutch Air Inlet

5435236

$61.74
