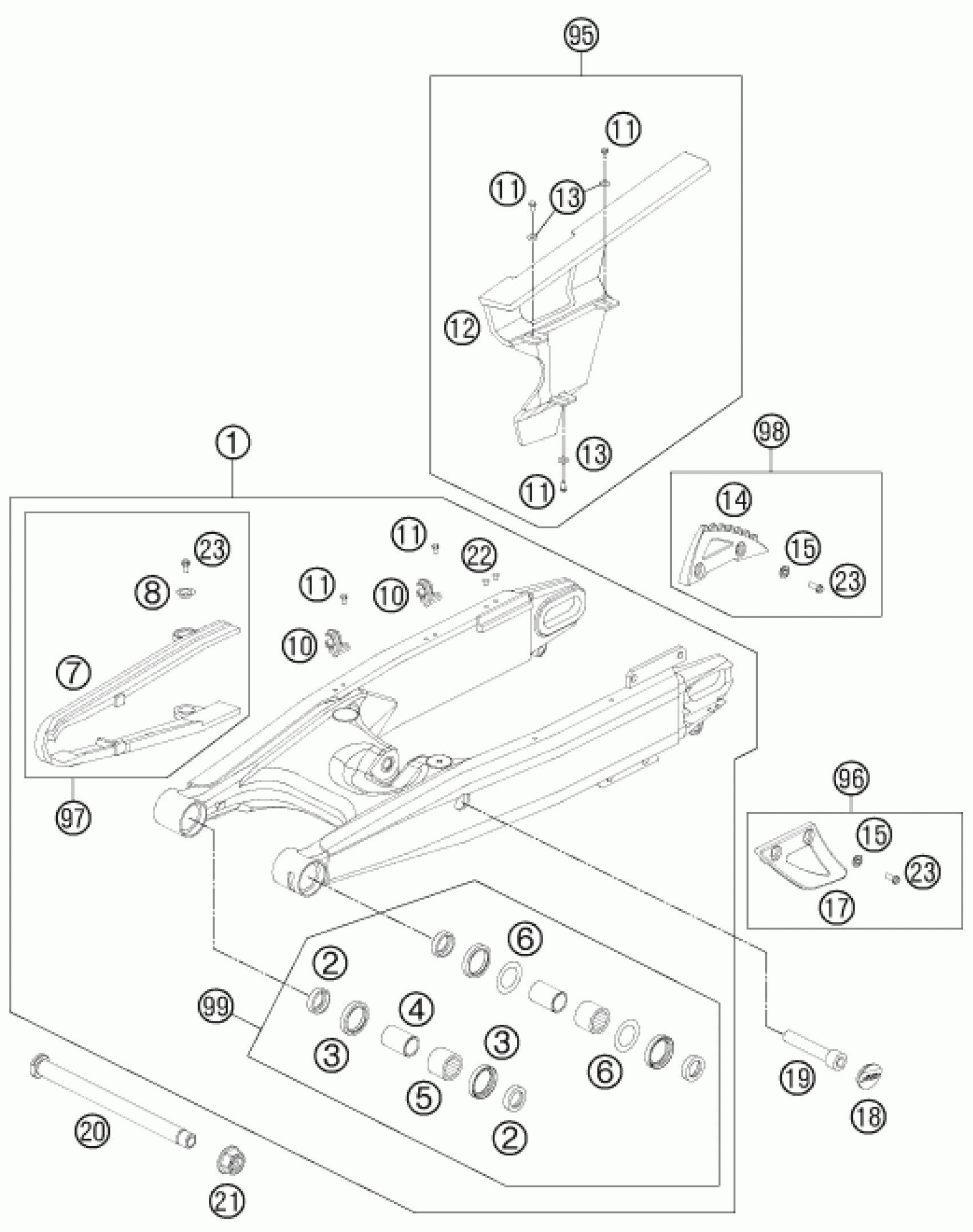

KTM 990 ADVENTURE BAJA 2013 SWING ARM Diagram

#

Description
Price

7

CHAIN SLID. GUARD SWINGARM 03

60004066000

$26.64

96

CHAIN GUIDE KIT REAR

60004070010

Unavailable

97

CHAIN GUARD KIT ADV

60004066010

Unavailable

2

Bucket f. shaft seal ring 03

60004034000

$8.03

1

SWINGARM CPL. LC8 AD. BLACK 09

6000403024433

$1,173.69

3

Radial shaft seal 30X40X7

0760304073

$4.11

4

INNER RING JR20X25X38,5 03

60004032000

$18.13

5

NEEDLE BUSH HK2526B 03

60004031000

$10.65

6

Stop disk 03

60004033000

$2.05

8

BUCKET

72210079000

$3.00

10

RET. CLAMP F. BRAKE HOSE

60104042000

$4.11

11

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

12

CHAINGUARD 06

60004061100

$11.59

13

washer DIN 9021 A - 5.3

0021050003

$1.49

14

REAR SPROCKET GUARD 03

60004075000

$4.01

15

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

17

CHAIN GUIDE 03

60004070000

$5.60

18

PLUG SWINGARM 03

60004041000

$6.72

19

SCREW M14X1,5 L=73MM 03

60004017000

$5.23

20

SWINGARM BOLT CPL.

60004037244

$59.69

21

COLLAR NUT M19X1,5 WS=27MM

60004038000

$17.94

22

PLUG 06

60104043000

$1.49

23

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

98

SPROCKET GUARD KIT

60004075010

Unavailable

99

SWINGARM REP. KIT

60004230010

Unavailable

95

CHAIN PROTECTION KIT ADV 07-12

60004060010

Unavailable
