1968 Suzuki 80K10P Piston-Crankshaft Diagram

← All diagrams

Find the part on the Piston-Crankshaft diagram for your 1968 Suzuki 80K10P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

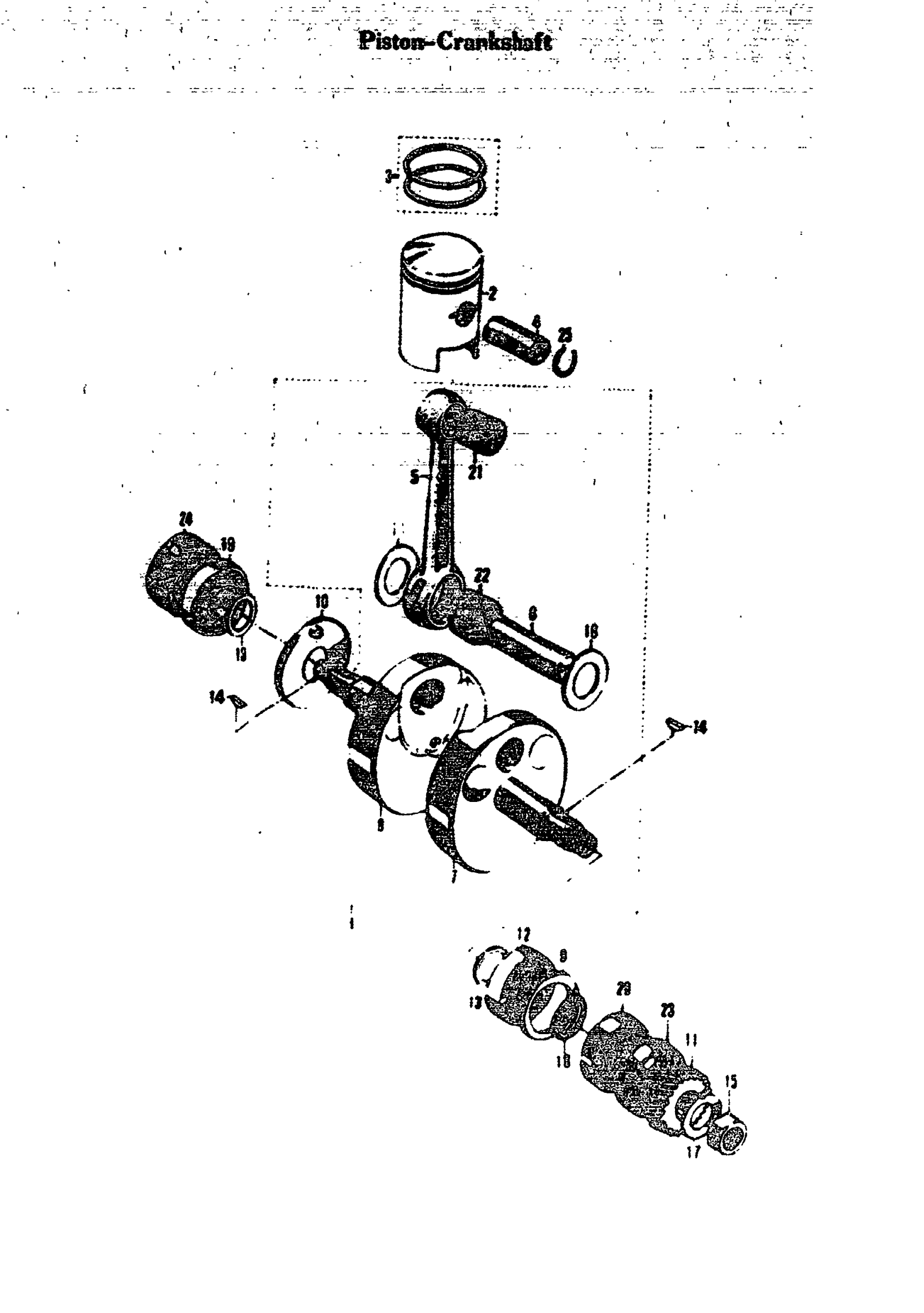

1968 Suzuki 80K10P Piston-Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASS'Y | P

12000-03830

—
Out of stock

2

PISTON | P; STANDARD

12110-03100

—
Out of stock

2

PISTON | P; OPTIONAL OVER SIZE 05(0

12110-03700

—
Out of stock

2

PISTON | P; OPTIONAL OVER SIZE 1.0(

12110-03710

—
Out of stock

3

PISTON RING SET | P; STANDARD

12140-03111

1
Out of stock

3

NO DESCRIPTION AVAILABLE | P; OPTIONAL OVER SIZE 0.5( This part replaces 12140-03701.

12140-03111-050

1
Out of stock

3

NO DESCRIPTION AVAILABLE | P; OPTIONAL OVER SIZE 1.0( This part replaces 12140-03711.

12140-03111-100

1
Out of stock

4

PISTON PIN | P; O.D.=14(0.55),I.D.=10.535.4(0.38)

12151-03000

1
Out of stock

5

CONNECTING RED | P

12161-03001

1
Out of stock

6

CRANK PIN | P; O.D.=19(0.75) L.=50(1.9

12211-03300

1
Out of stock

7

RIGHT CRANKSHAFT | P

12220-03100

—
Out of stock

8

LEFT CRANKSHAFT | P

12260-03100

—
Out of stock

9

CRANKSHAFT BEARING SPACER | P; O.D.=47(1.85),I.D =35(l.0(0.16)

12351-03010

1
Out of stock

10

OIL GUIDE PLATE | P

12511-03100

1
Out of stock

11

PRIMARY PINION | P; NT.=19

21111-03000

—
Out of stock

12

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

1
Out of stock

13

SHIM (20X28X0.5) This part replaces 08221-20285.

09181-20158

2
Out of stock

14

KEY

08341-31039

2
Out of stock

15

PRIMARY PINION NUT | P

09140-14002

1
Out of stock

16

CONNECTING RED THRUST WASHER | P; O.D.=35(1.38),I.D.=19=1 0(0.04)

09160-19003

2
Out of stock

17

PRIMARY PINSON WASHER | P; O.D.=2(0.79)

09166-14003

—
Out of stock

18

CRANKSHAFT HEARING LOWER SPAC | P; O.D.=33.5(1.32),I.D.=29P; O.D.=33.5(1.32),I.D.=29=4(0.16)

09180-20012

1
Out of stock

19

LEFT CRANKSHAFT BEARING | P; O.D =52(2.04),I.D =20(0.79)

09262-20003

1
Out of stock

20

CRANKSHAFT OUTER BEARING | P; O.D=47(1.85),I.D.20(0.79))

09262-20004

—
Out of stock

21

ROLLR BRG,14X18 | P; O.D=18(0.71),I.D=19(0.75)P; W.=16(0.63) This part replaces 09263-14001.

09263-14022

1
Out of stock

22

BEARING | P; O.D.=25(0.98),I.D.=20(0.79)27) This part replaces 09263-19001.

09263-19009

1
Out of stock

23

RIGHT CRANKSHAFT OIL SEAL | P;

09283-20006

1
Out of stock

24

LEFT CRANKSHAFT OIL SEAL | P;

09283-20015

1
Out of stock
