1968 Suzuki 80K10P Exhaust Pipe-Muffler Diagram

← All diagrams

Find the part on the Exhaust Pipe-Muffler diagram for your 1968 Suzuki 80K10P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

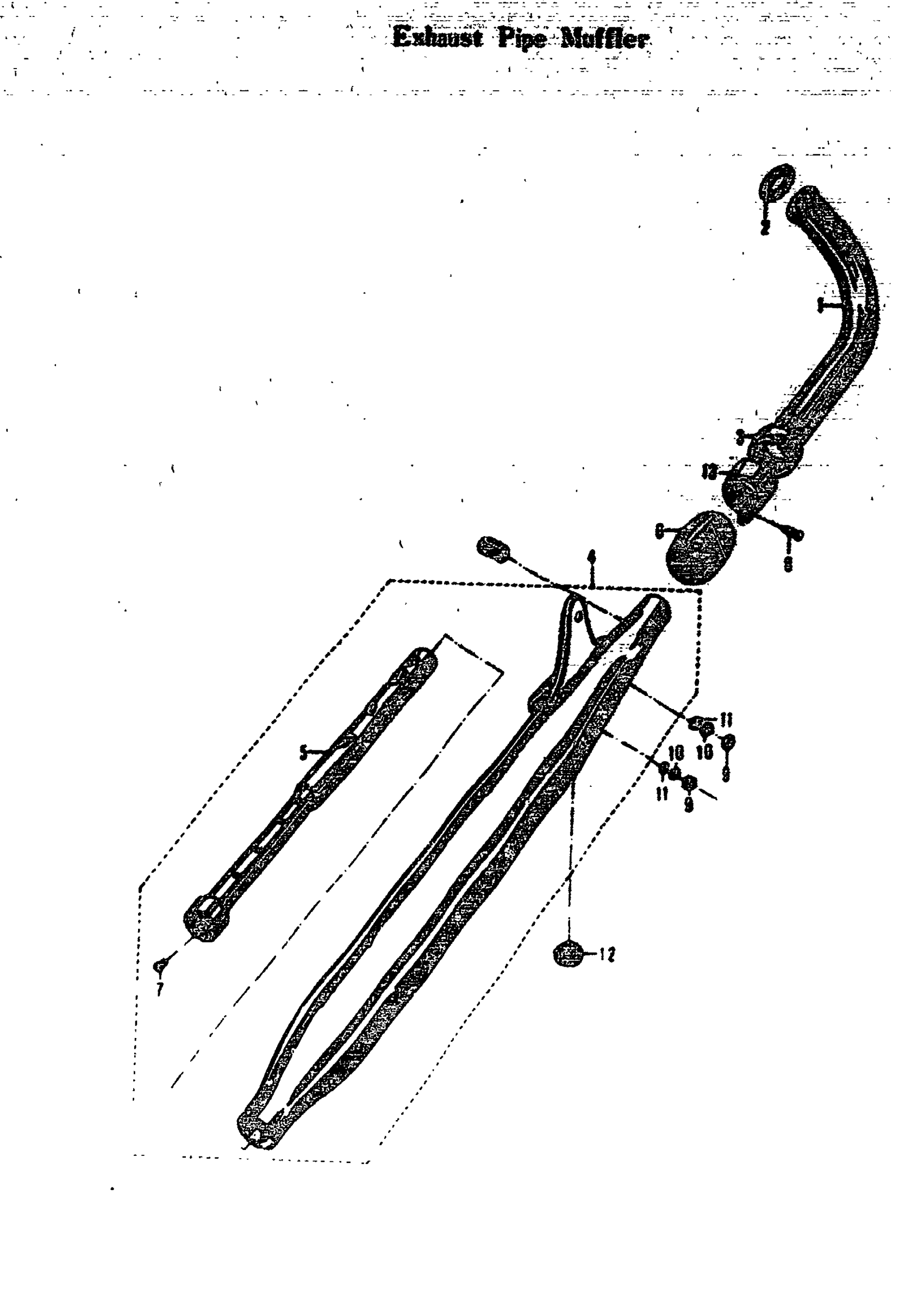

1968 Suzuki 80K10P Exhaust Pipe-Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE

14151-03600

—
Out of stock

2

GASKET, EXHAUST PIPE | P; O.D.=37(1.46) I.D.=29.5=2.5(0.29) This part replaces 14181-03310.

14181-37D00

1
Out of stock

3

EXHAUST PIPE CLAMP | P

14182-03300

—
Out of stock

4

MUFFLER ASS'Y

14301-03002

—
Out of stock

5

MUFFLER BAFFLE PIPE

14510-03001

—
Out of stock

6

MUFFLER CONNECTOR | P

14771-09044

—
Out of stock

7

CROSS HEAD SCREW

02111-05088

—
Out of stock

7

CROSS HEAD SCREW

02111-05081

—
Out of stock

8

CROSS HEAD SCREW

02111-06208

—
Out of stock

9

NUT This part replaces 08312-11088.

08310-00087

2
Out of stock

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

2
Out of stock

11

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

12

CENTER STAND BUFFER | P

09321-10002

1
Out of stock
