2005 Kawasaki 800 SX-R JET Pump Diagram

← All diagrams

Find the part on the JET Pump diagram for your 2005 Kawasaki 800 SX-R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

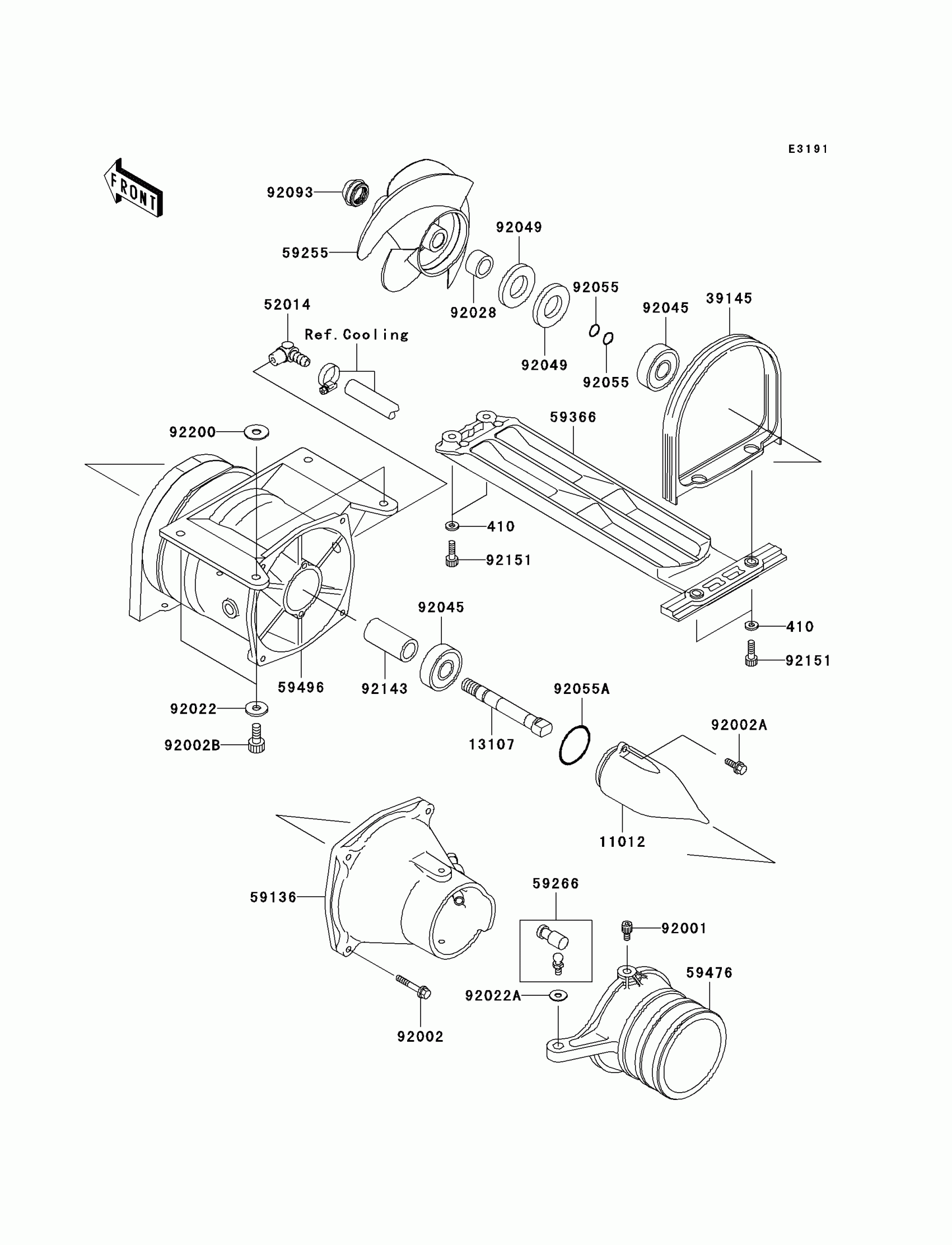

2005 Kawasaki 800 SX-R JET Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

1

$0.80

In stock

11012

CAP,JET PUMP

11012-3712

1

$62.69

In stock

13107

SHAFT,JET PUMP

13107-3721

1

$84.95

In stock

39145

TRIM-SEAL

39145-3735

1

$53.20

In stock

52014

ELBOW

52014-3724

1

$46.37

In stock

59136

NOZZLE-PUMP

59136-3730

1

$143.37

In stock

59255

IMPELLER-COMP

59255-3726

1

$634.22

In stock

59266

JOINT-BALL

59266-3707

1

$60.75

In stock

59366

GRATE

59366-3721

1

$106.23

In stock

59476

NOZZLE-STRG

59476-3713

1

$95.17

In stock

59496

VANE-GUIDE

59496-3752

1
Out of stock

92001

BOLT,SOCKET,6X11

92001-3701

1

$14.49

In stock

92002

BOLT,6X35

92002-3715

1
Out of stock

92002A

BOLT,6X16

92002-3728

1
Out of stock

92002B

BOLT,SOCKET,8X20

92002-3771

1
Out of stock

92022

WASHER,8.4X23X2.5

92022-3744

1
Out of stock

92022A

WASHER

92022-567

1
Out of stock

92028

BUSHING,17X25X15

92028-3717

1

$36.09

In stock

92045

1

$36.45

In stock

92049

SEAL-OIL,TBY25X47X6

92049-3714

1
Out of stock

92055

RING-O,13.0X1.9

92055-1011

1

$6.06

In stock

92055A

RING-O

92055-3706

1

$3.70

In stock

92093

SEAL

92093-3749

1

$3.94

In stock

92143

COLLAR,17.4X25.4X53

92143-3708

1

$23.59

In stock

92151

BOLT,SOCKET,6X20

92151-3774

1

$1.56

In stock

92200

WASHER,8.5X25X1.5

92200-3717

1
Out of stock
