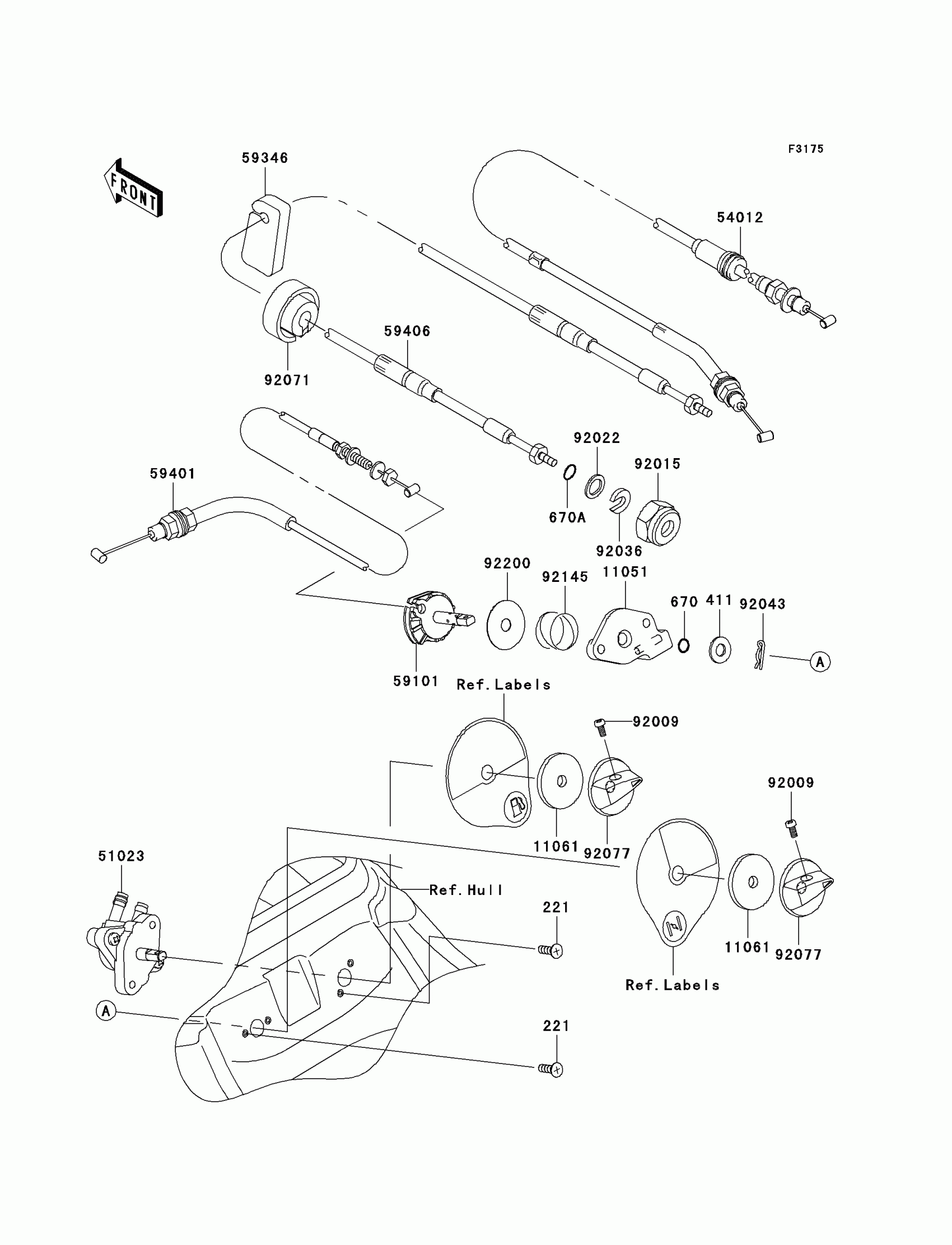

Find the part on the Cables diagram for your 2005 Kawasaki 800 SX-R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki 800 SX-R Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

221

1

$2.51

In stock

411

WASHER-PLAIN,8MM

411S0800

1

$2.49

In stock

670

O RING,8MM

670B1508

1

$1.17

In stock

670A

O RING,11MM

670B2011

1
Out of stock

11051

1

$24.12

In stock

11061

GASKET

11061-3734

1

$4.64

In stock

51023

TAP-ASSY,FUEL

51023-3738

1
Out of stock

54012

CABLE-THROTTLE

54012-3773

1

$52.59

In stock

59101

REEL

59101-3716

1

$74.64

In stock

59346

DETENT

59346-504

1

$8.73

In stock

59401

CABLE-CHOKE

59401-3725

1

$34.02

In stock

59406

CABLE-STRG

59406-3776

1

$130.35

In stock

92009

SCREW,4X8

92009-3729

1
Out of stock

92015

NUT,20MM

92015-526

1

$30.30

In stock

92022

WASHER

92022-535

1
Out of stock

92036

RING-SNAP

92036-501

1
Out of stock

92043

PIN

92043-3752

1

$3.27

In stock

92071

GROMMET

92071-3774

1

$8.39

In stock

92077

KNOB,CABLE

92077-3733

1

$21.25

In stock

92145

SPRING

92145-3712

1

$5.85

In stock

92200

WASHER,8.5X34X0.5

92200-3770

1
Out of stock
