2005 Kawasaki 800 SX-R Electrical Equipment Diagram

← All diagrams

Find the part on the Electrical Equipment diagram for your 2005 Kawasaki 800 SX-R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

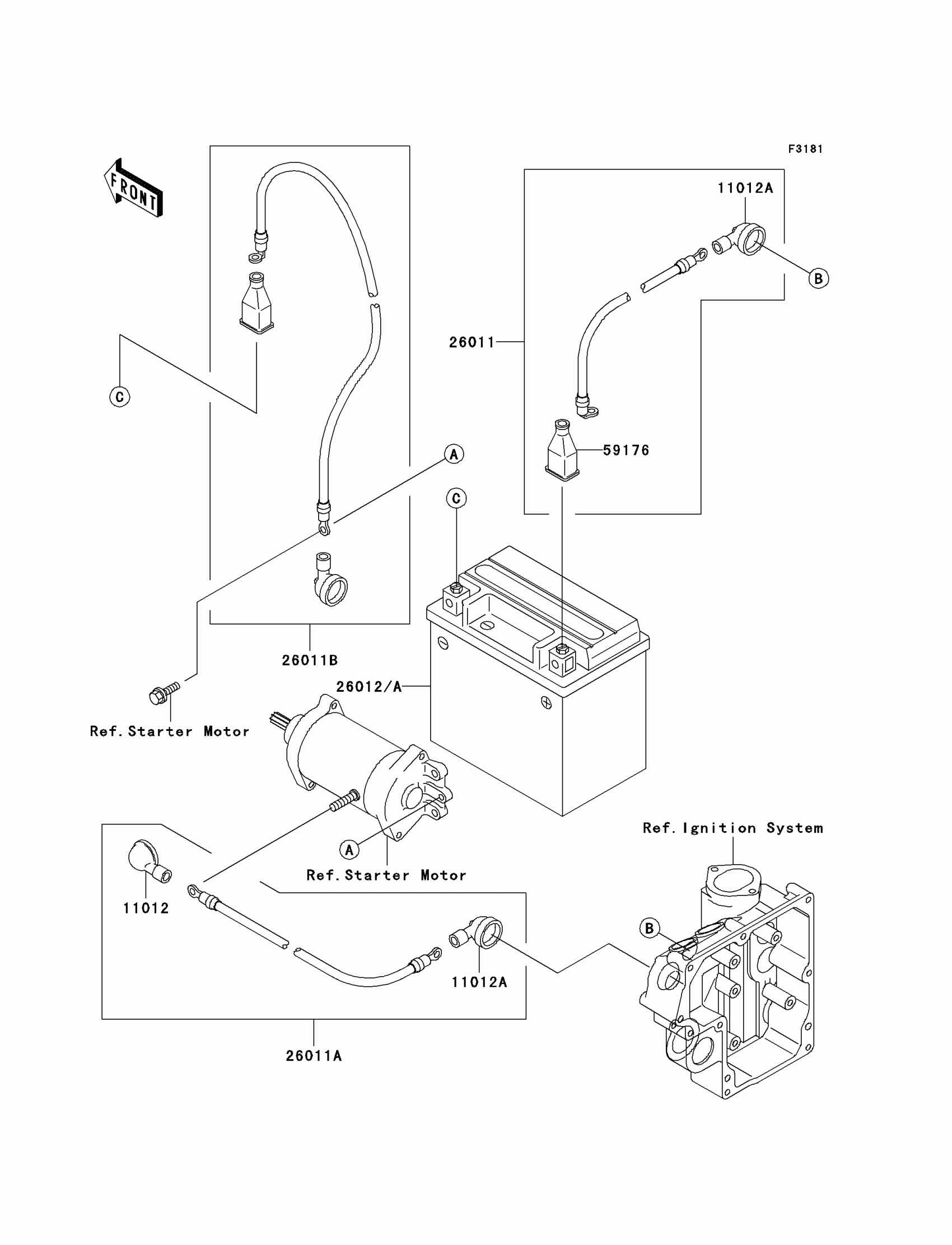

2005 Kawasaki 800 SX-R Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-3004

1

$7.44

In stock

11012A

CAP,LEAD WIRE

11012-3726

1

$7.71

In stock

26011

WIRE-LEAD,BATTERY-SWITCH

26011-3789

1
Out of stock

26011A

1

$59.92

In stock

26011B

1

$65.22

In stock

26012A

BATTERY,YTX20L-BS,12V 18AH

26012-3730

1
Out of stock

59176

CAP.,TERMINAL

59176-501

1
Out of stock
