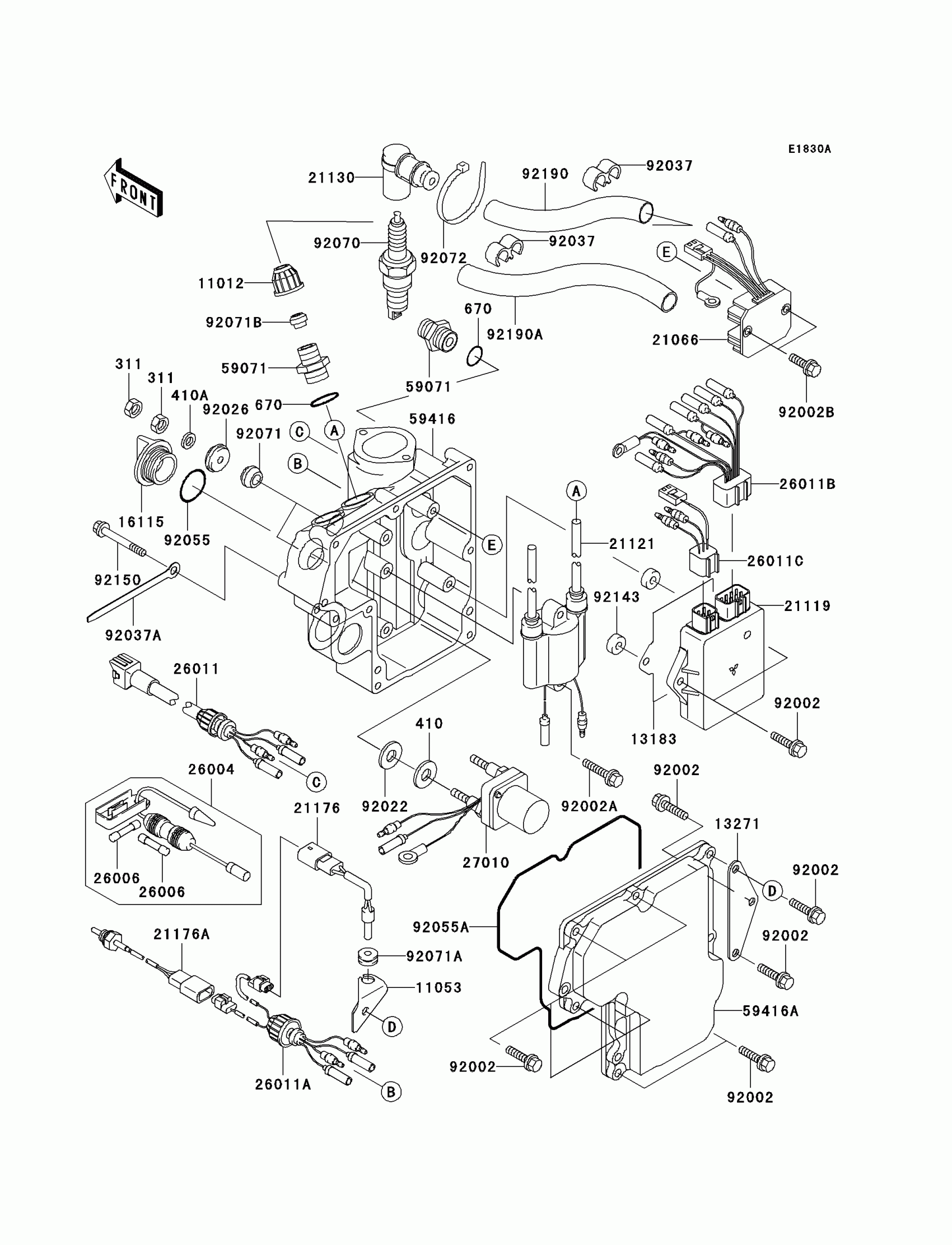

Kawasaki 800 SX-R Ignition System(A2/A3) Diagram

#

Description
Price

311

NUT-HEX,6MM

311R0600

$0.75

11012

CAP

11012-3005

$4.39

11053

BRACKET,AIR TEMP SENSOR

11053-3775

$8.03

13183

PLATE

13183-3811

$7.19

13271

PLATE

13271-3870

$10.34

16115

CAP-OIL FILLER

16115-1009

$11.32

21066

REGULATOR-VOLTAGE

21066-3709

$218.98

21119

IGNITER

21119-3764

$757.81

21121

COIL-IGNITION

21121-3713

$122.35

21130

CAP-SPARK PLUG

21130-3707

$64.17

21176

SENSOR,INTAKE AIR TEMP

21176-3730

$86.67

21176A

SENSOR,TEMP

21176-3758

$134.52

26004

FUSE-ASSY

26004-3712

$58.36

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-0003

$5.02

26011

WIRE-LEAD

26011-3792

$139.45

26011A

WIRE-LEAD,SENSOR

26011-3906

$169.42

26011B

WIRE-LEAD

26011-3907

$123.41

26011C

WIRE-LEAD

26011-3908

$73.89

27010

SWITCH,STARTER RELAY

27010-3760

$118.46

59071

JOINT

59071-3001

$4.98

59416

CASE-ELECTRIC,LWR

59416-3762

$96.28

59416A

CASE-ELECTRIC,UPP

59416-3763

$54.08

92002

BOLT,6X25

92002-3714

$3.97

92002A

BOLT,6X30

92002-3726

$3.72

92002B

BOLT,6X20

92002-3755

$3.72

92022

WASHER

92022-3035

$2.92

92026

SPACER

92026-3703

$3.72

92037

CLAMP,HOSE

92037-1603

$4.42

92037A

CLAMP,L=100

92037-3736

$4.85

92055

RING-O,31.5X2.6

92055-049

$3.43

92055A

RING-O,ELECTRIC CASE

92055-3731

$24.34

92070

PLUG-SPARK,BR8ES(NGK),SOLID

92070-3702

Unavailable

92071

GROMMET

92071-3004

$3.18

92071A

GROMMET

92071-3733

$3.71

92071B

GROMMET

92071-527

$5.44

92072

BAND,L=99

92072-3871

Unavailable

92143

COLLAR,6.5X16X6

92143-1496

$9.15

92150

BOLT,6X85

92150-3763

$8.41

92190

TUBE,HIGH TENSION,L=210

92190-3708

$12.02

92190A

TUBE,8X10X295

92190-3960

$13.08

410

WASHER PLAIN 10MM

410B1000

Unavailable

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.80

670

O RING,16MM

670B2016

$1.20
