2004 Kawasaki 800 SX-R Decals Diagram

← All diagrams

Find the part on the Decals diagram for your 2004 Kawasaki 800 SX-R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

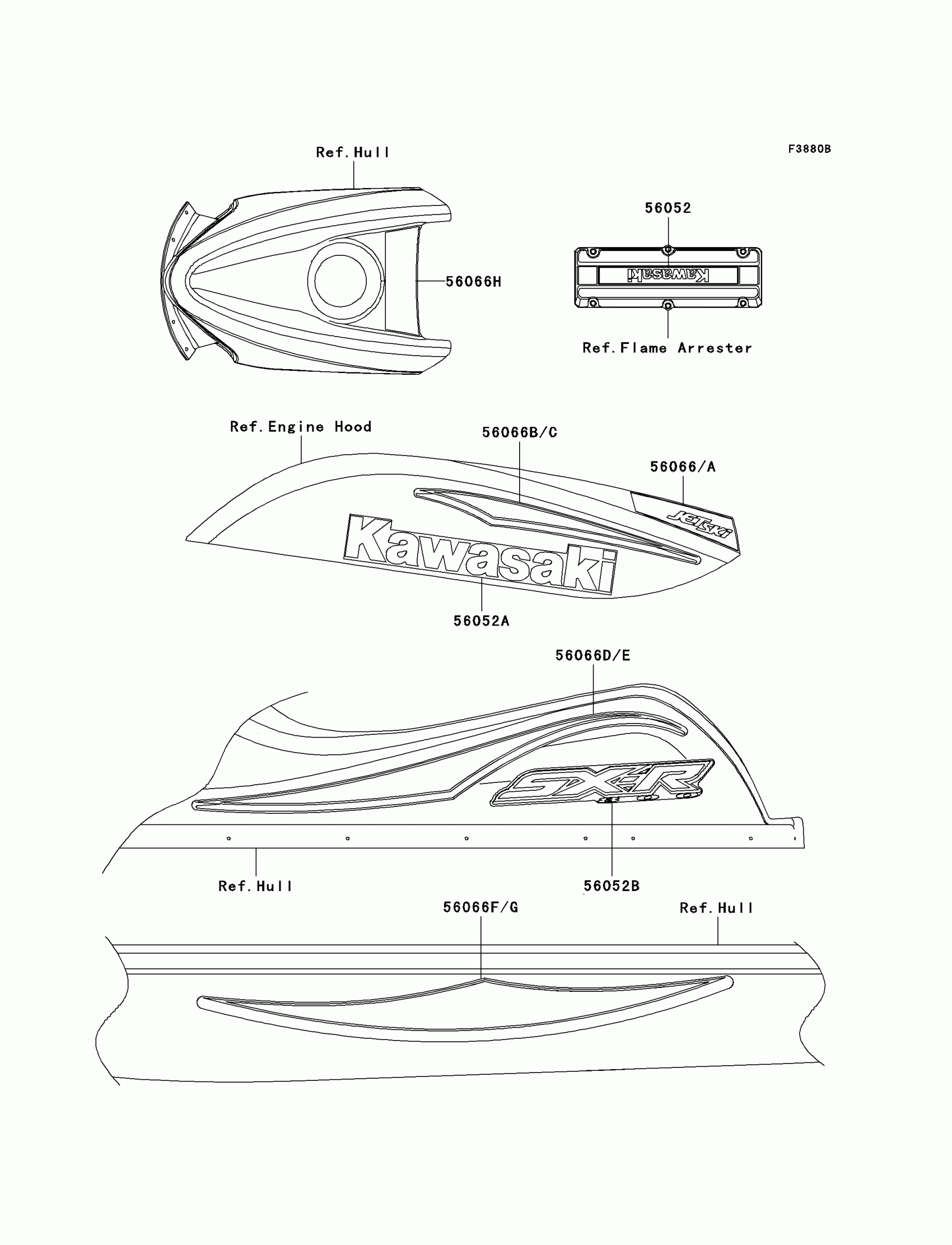

2004 Kawasaki 800 SX-R Decals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56052

MARK,KAWASAKI

56052-3807

1

$21.64

In stock

56052A

1

$76.78

In stock

56052B

MARK,DECK,SX-R 800

56052-3825

1

$53.53

In stock

56066

PATTERN,ENGINE HOOD,UPP,LH

56066-3794

1
Out of stock

56066A

PATTERN,ENGINE HOOD,UPP,RH

56066-3795

1
Out of stock

56066B

PATTERN,ENGINE HOOD,LWR,LH

56066-3802

1
Out of stock

56066C

PATTERN,ENGINE HOOD,LWR,RH

56066-3803

1
Out of stock

56066D

PATTERN,DECK,LH

56066-3804

1

$119.72

In stock

56066E

PATTERN,DECK,RH

56066-3805

1

$109.98

In stock

56066F

PATTERN,HULL,LH

56066-3806

1

$47.01

In stock

56066G

PATTERN,HULL,RH

56066-3807

1

$47.01

In stock

56066H

PATTERN,NOSE COVER

56066-3808

1

$12.41

In stock
