2005 Kawasaki 800 SX-R Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 2005 Kawasaki 800 SX-R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

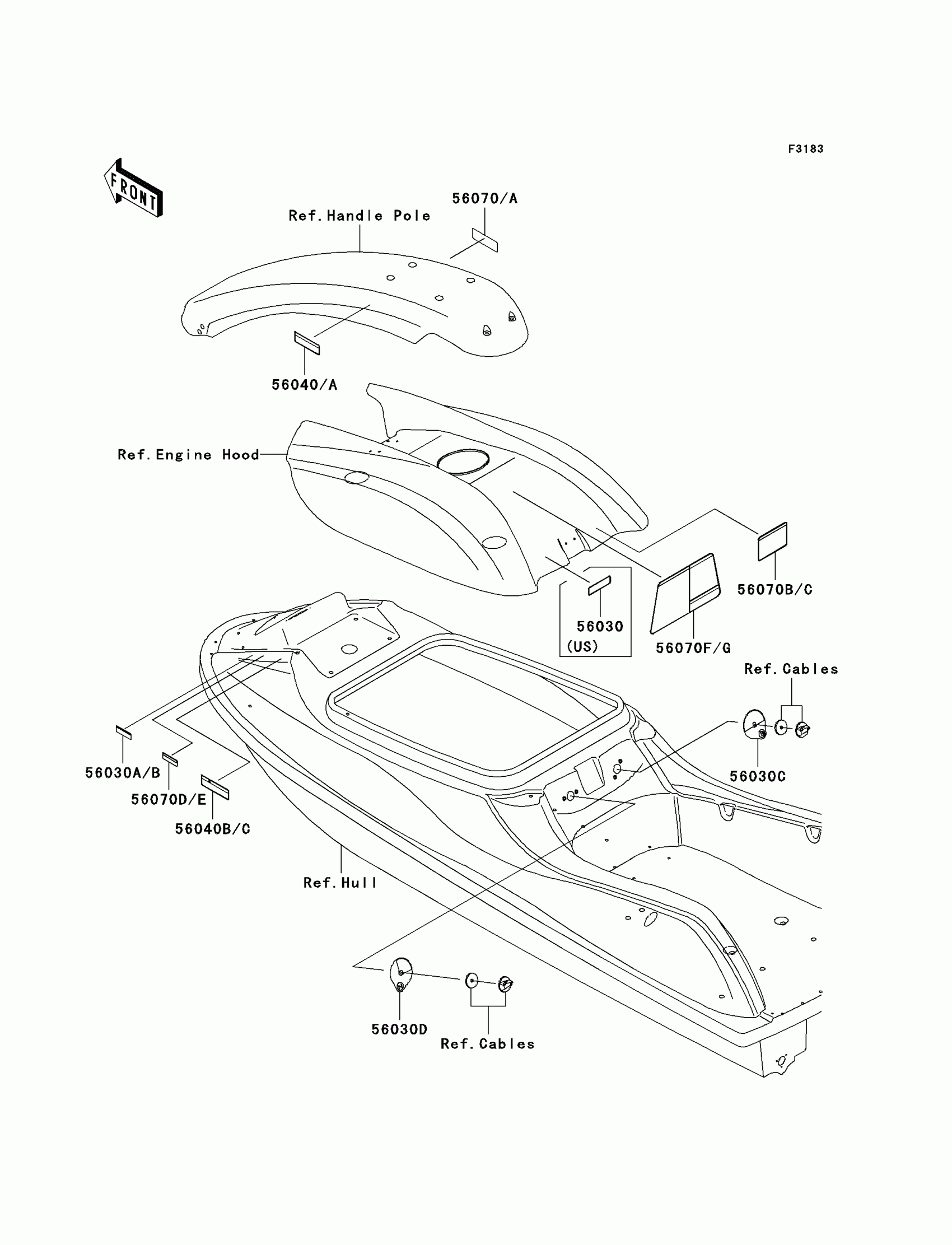

2005 Kawasaki 800 SX-R Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56030B

LABEL,OIL RECOMMENDED

56030-3852

1
Out of stock

56030C

LABEL,FUEL

56030-3856

1
Out of stock

56030D

LABEL,CHOKE

56030-3857

1
Out of stock

56040

LABEL-WARNING,CAUTION SAFETY

56040-3944

1
Out of stock

56040B

LABEL-WARNING,GASOLINE

56040-3972

1
Out of stock

56070

LABEL-WARNING,CAUTION SAFETY

56070-3723

1
Out of stock

56070B

LABEL-WARNING,CAUTION SAFETY

56070-3834

1
Out of stock

56070D

LABEL-WARNING,MIX RATIO

56070-3857

1
Out of stock

56070F

LABEL-WARNING,IMPORTANT SAFETY

56070-3976

1
Out of stock

56030

LABEL,FIRE EXTINGUISHER

56030-3755

1
Out of stock

56030A

LABEL,OIL RECOMMENDED(FRENCH)

56030-3765

1
Out of stock

56040A

LABEL-WARNING,CAUTION SAFETY

56040-3952

1
Out of stock

56040C

LABEL,GASOLINE,FRN

56040-3978

1
Out of stock

56070A

LABEL,CAUTION SAFETY(FRENCH)

56070-3725

1
Out of stock

56070C

LABEL-WARNING,CAUTION SAFETY

56070-3836

1
Out of stock

56070E

LABEL-WARNING,MIX RATIO(FRENCH)

56070-3858

1
Out of stock

56070G

LABEL-WARNING,IMPORTANT SAFETY

56070-3977

1
Out of stock
