2005 Kawasaki 800 SX-R Pads Diagram

← All diagrams

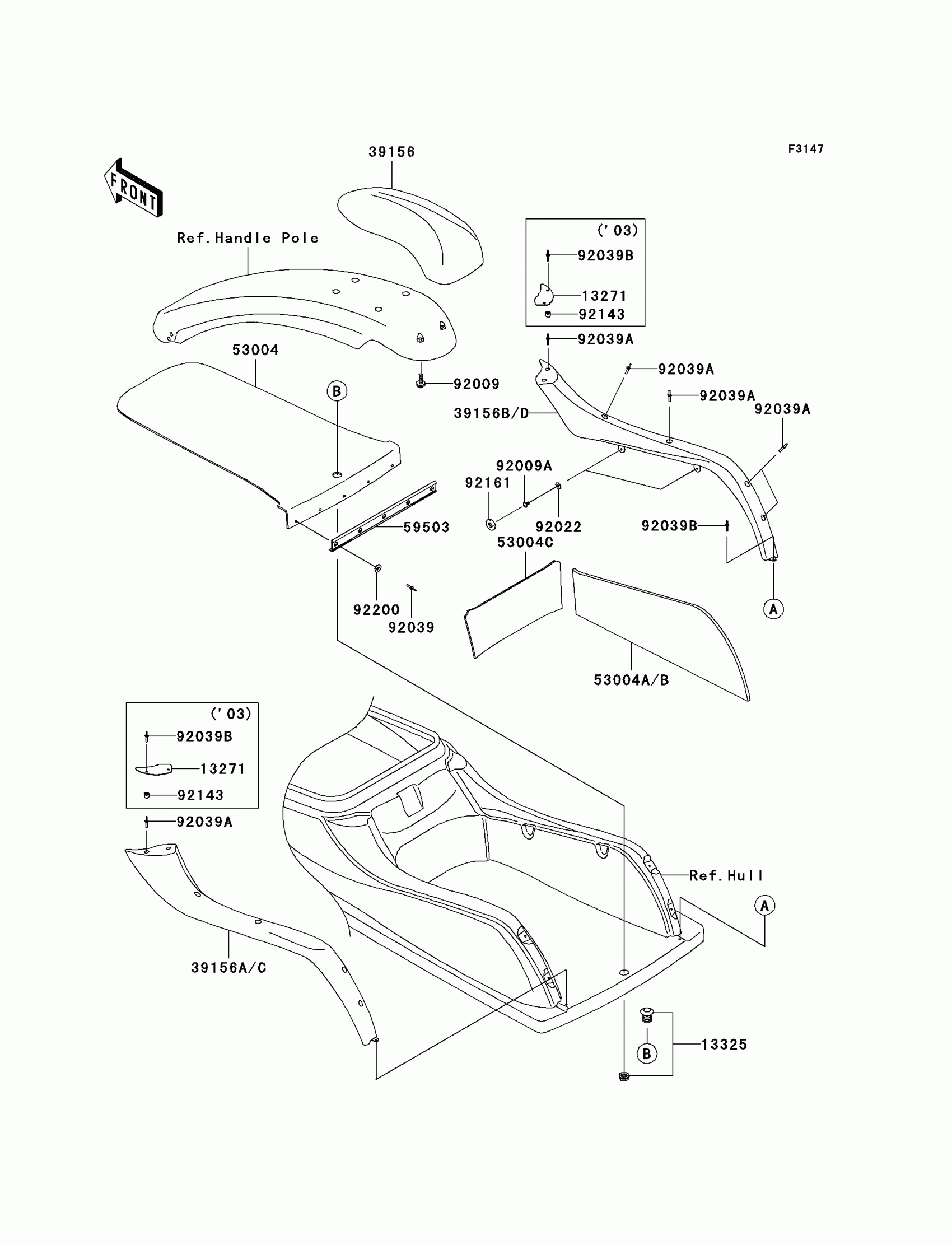

Find the part on the Pads diagram for your 2005 Kawasaki 800 SX-R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki 800 SX-R Pads Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13325

BUSHING-ASSY,BLACK

13325-3705

1

$7.32

In stock

39156

1

$345.07

In stock

39156C

PAD,DECK FIN,LH,BLACK

39156-3842-MA

1

$410.91

In stock

39156D

PAD,DECK FIN,RH,BLACK

39156-3843-MA

1

$410.91

In stock

53004

MAT,DECK

53004-3868

1
Out of stock

53004A

MAT,DECK,LH

53004-3877

1

$134.96

In stock

53004B

MAT,DECK,RH

53004-3878

1

$134.96

In stock

53004C

MAT,DECK,CNT

53004-3879

1

$54.81

In stock

59503

FENDER-BOAT,F.BLACK

59503-3708-6Z

1
Out of stock

92009

SCREW,TAPPING,5X20

92009-3716

1
Out of stock

92009A

SCREW,6X16

92009-3771

1
Out of stock

92022

WASHER,6.5X20X1.5

92022-3710

1
Out of stock

92039

RIVET

92039-3778

1
Out of stock

92039A

RIVET

92039-3780

1
Out of stock

92039B

RIVET

92039-3781

1
Out of stock

92161

DAMPER

92161-3747

1

$3.67

In stock

92200

WASHER

92200-3790

1
Out of stock
