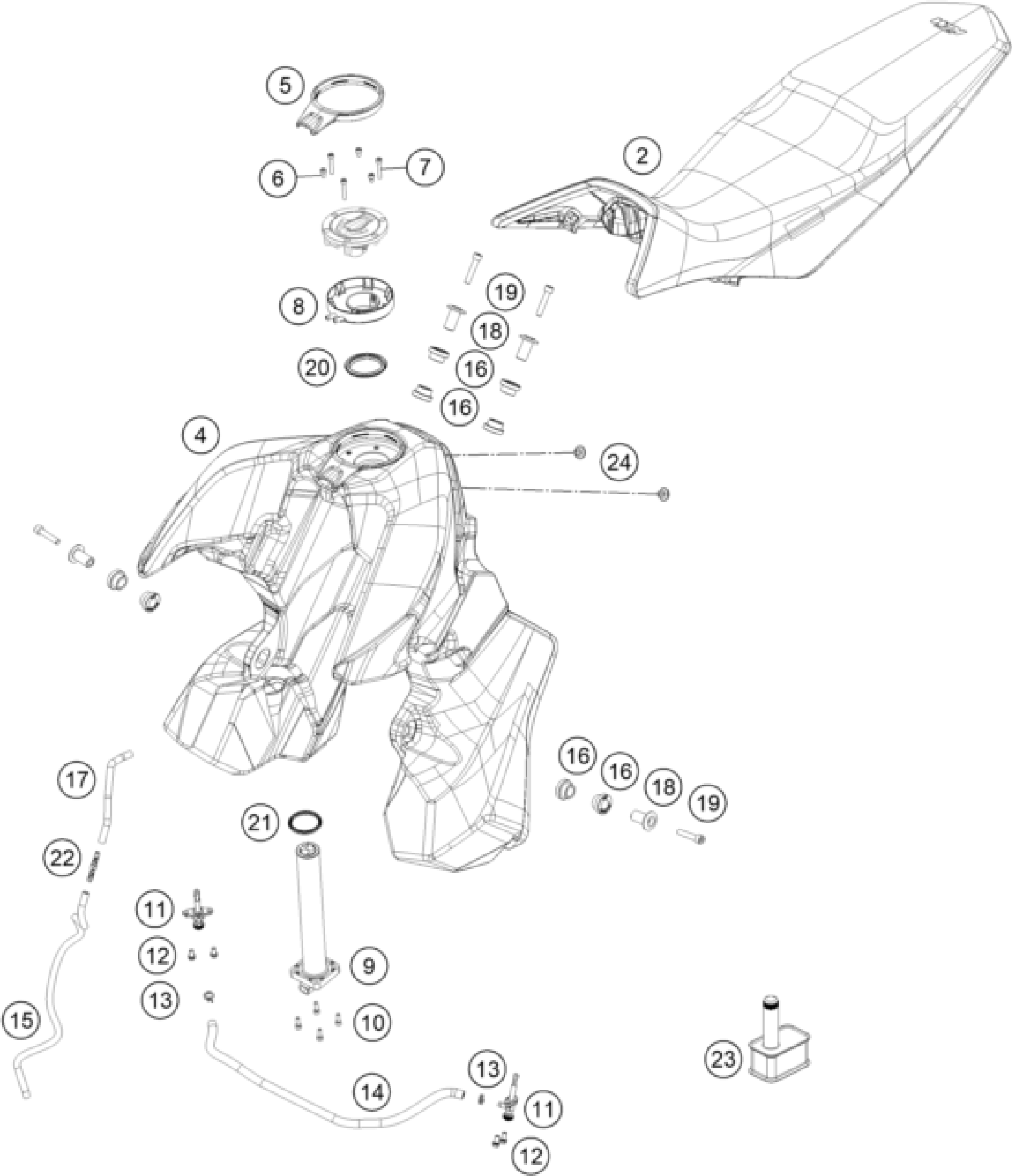

KTM 790 Adventure R 2019 TANK, SEAT Diagram

#

Description
Price

2

Sitzbank 800 Adv. R

63507140000

$219.16

4

Fuel tank

63507113000C1

$1,581.73

5

Fuel tank fairing

63507058000

$7.85

6

SHCS DIN 912 M5x8

0912050083

$1.49

7

AH SCREW DIN0912-M 5X30

0912050303

$1.49

8

Fuel filler cap

63507008050

$13.46

9

Fuel level sensor

63507080100

$140.15

10

AH collar screw DIN 912 M5x16

0912050163

$1.49

11

Fuel cock cmpl.

58507003200

$26.55

12

HH collar screw M6x12 TX30

0025060126

$3.08

13

CLAMP YDNAC 10128 12MM

58031005000

$3.08

14

Interconnection hose

63507016000

$21.03

15

hose tank overrun 140 mm

63515026000

$13.36

16

collar bushing, front tank hol

61007065000

$7.85

17

hose tank overrun 570 mm

63515027000

$33.93

18

collar bushing, bearing, outsi

61007060000

$9.90

19

AH collar screw DIN0912 M8x40

0912080403

$2.05

20

gasket tank insert

21007008151

$14.02

21

Gasket fuel lever sensor

60307080090

$50.67

22

HOSE CONNECTION STRAIGHT

69015019010

$5.23

23

Motorex Fuel Stabilizer 125ml

00001000015

$19.81

24

Seat screw M6x11.5 ISA30

0900000601200

$4.11
