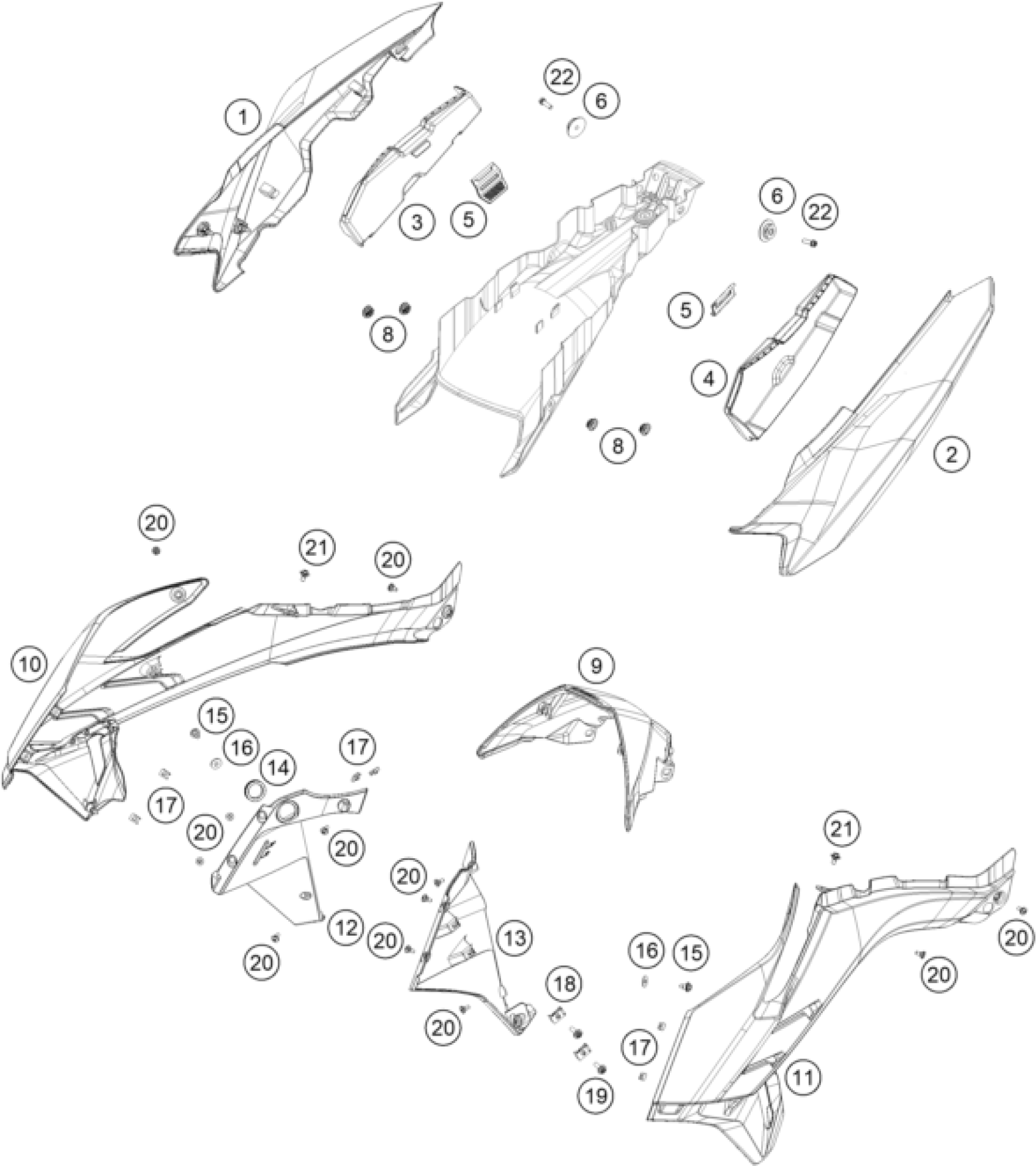

KTM 790 Adventure R 2019 SIDE TRIM Diagram

#

Description
Price

1

Side fairing right

63508042000C1

$48.27

2

Side fairing left

63508041000C1

$48.27

3

storage box right

63508042050

$14.19

4

storage box left

63508041050

$15.55

5

Closing rubber

63508041055

$2.80

6

Socket sliding seat

63508040120

$5.23

8

quick release rubber grommet

47106003160

$4.11

9

battery cover

63511054010

$39.35

10

Fuel tank spoiler right

63508051000ABB

$103.10

11

Fuel tank spoiler left

63508050000ABB

$106.16

12

inner lining right

63508024000

$15.89

13

inner lining left

63508023000

$15.89

14

rubber gromet inner fairing

63508024010

$5.23

15

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

16

Washer DIN9021-A 6.4

0021060003

$2.05

17

clip nut M5

69008021080

$3.08

18

clip nut M6

54603048100

$4.11

19

HH collar screw M6x20 TX30

0024060206

$3.08

20

special screw M5x12

69008021160

$4.11

21

special screw M6x12x3

83008000012

$3.08

22

HH collar screw M6x20 TX30

0025060206

$3.08
