Description

Price

1

Ball joint bearing kit top 12m

R12012

Unavailable

2

Bearing bush 12x15/18/24,5x13,

46180064

$16.73

3

Compression adjuster cpl. Natu

50180213S28

$88.16

4

HS cylinder-head screw R1/8 l8

50180095

$2.42

5

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

6

PLUG SCREW M5X6 CPL.

36120151S

$4.11

7

Rubber cap do not open 22x5,5

46811208

$3.08

8

Sticker set XPLOR PDS 90x40

52000214

$32.25

9

Preload-Adjuster D46mm s10mm r

15000S23

$247.30

10

REP. KIT WASHERS

R15020

$33.36

11

Main Spring (59) 95-210 shock

91010366

$61.61

12

Rubber pad 17x50x54

50181080

$23.65

13

Distance bush 12x15/18/24,5x10

46180007

$17.76

15

O-ring 27x1,5 Viton70 green IS

50180217

$2.05

16

shock upper part KTM 790 ADV R

46181324S1

$464.97

17

shock bottom part KTM 790 ADV

46181327S1

$465.62

18

Distance bush 10x15/18/24,5x10

46180010

$4.11

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Repair kit ADV. R

RP10013

Unavailable

11

mainspring (59) 88-210 shock w

91010425

Unavailable

11

Main spring (59) 102-210 dampe

91010426

Unavailable

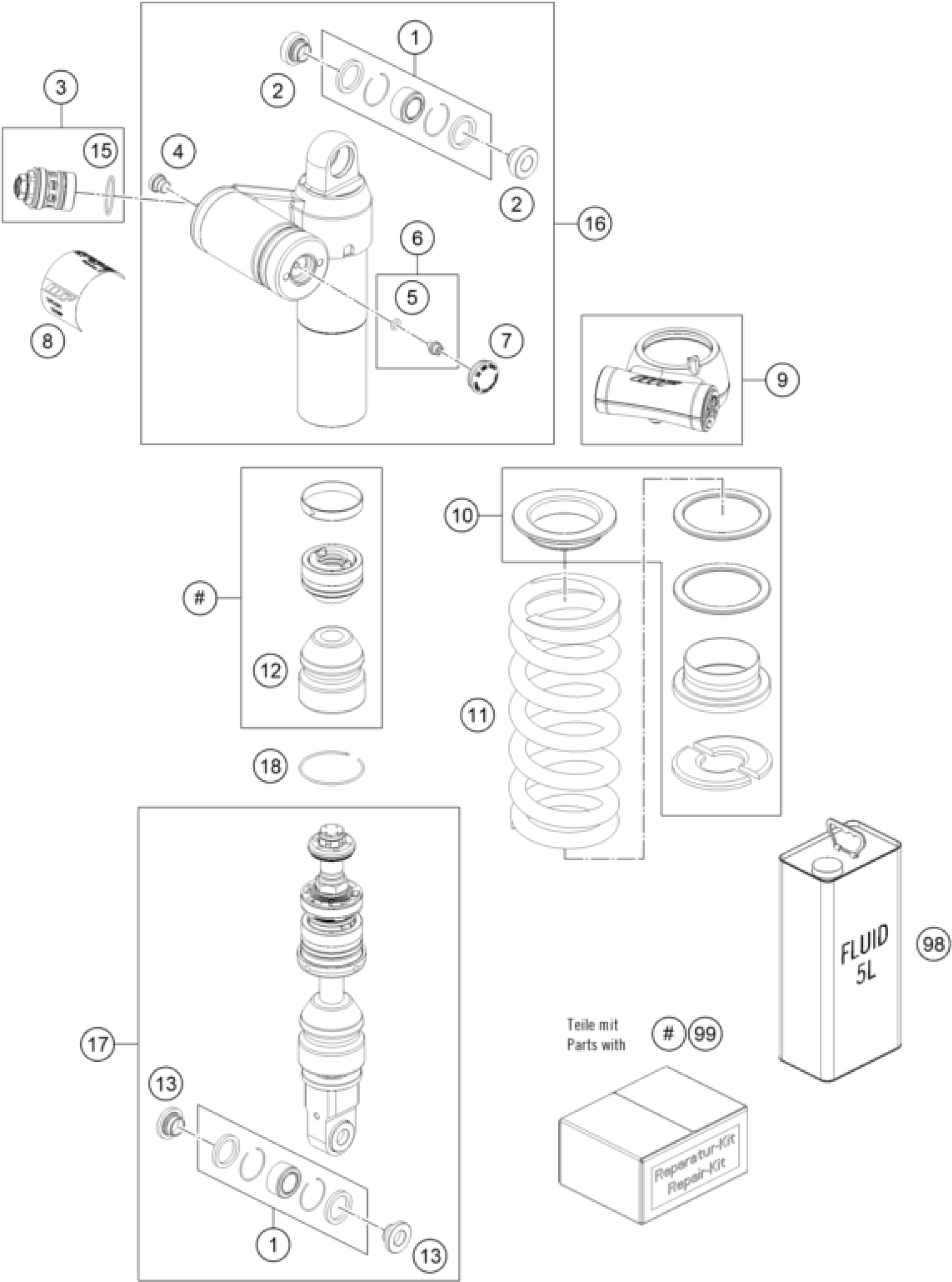

KTM 790 Adventure R 2019 SHOCK ABSORBER DISASSEMBLED Diagram

Ball joint bearing kit top 12m

Bearing bush 12x15/18/24,5x13,

Compression adjuster cpl. Natu

HS cylinder-head screw R1/8 l8

O-ring 5,28x1,78 NBR70 black

PLUG SCREW M5X6 CPL.

Rubber cap do not open 22x5,5

Sticker set XPLOR PDS 90x40

Preload-Adjuster D46mm s10mm r

REP. KIT WASHERS

Main Spring (59) 95-210 shock

Rubber pad 17x50x54

Distance bush 12x15/18/24,5x10

O-ring 27x1,5 Viton70 green IS

shock upper part KTM 790 ADV R

shock bottom part KTM 790 ADV

Distance bush 10x15/18/24,5x10

SHOCK ABSORBER FLUID 5 LT

Repair kit ADV. R

mainspring (59) 88-210 shock w

Main spring (59) 102-210 dampe
