- 690 RALLY FACTORY REPLICA 2009
TANK, SEAT

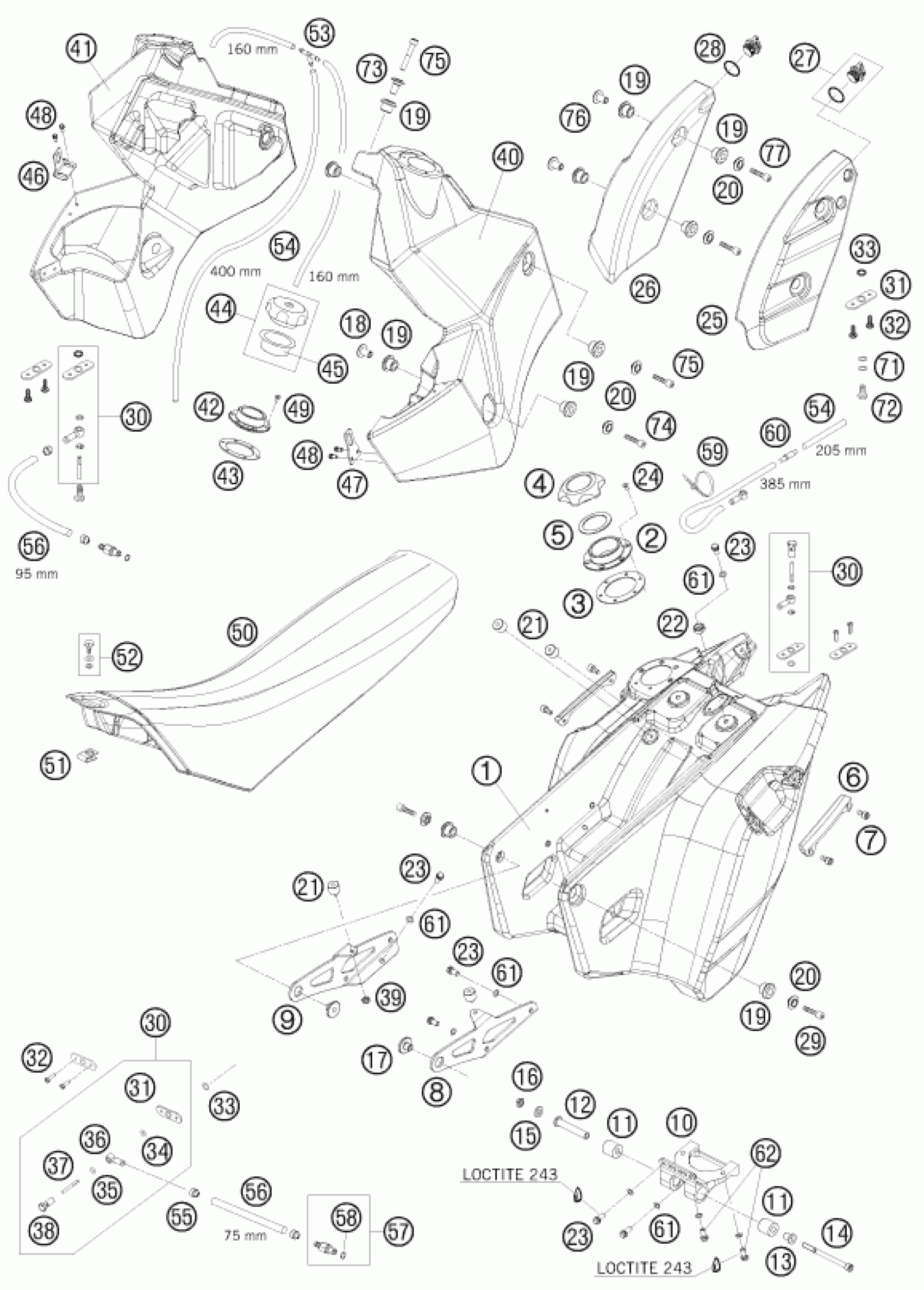

KTM 690 RALLY FACTORY REPLICA 2009 TANK, SEAT Diagram
#
1
REARTANK 5 KG VARNISHED
7620709600004
Unavailable
2
REAR FUEL TANK FILLER 07
76207096019
Unavailable
3
VITON GASKET FOR REAR TANK 07
76207096028
Unavailable
4
FILLER CAP REAR TANK 07
76207096026
Unavailable
5
VITON GASKET FOR REAR TANK 07
76207096027
Unavailable
6
GRAB HANDLE 07
76207096020
Unavailable
7
AH SCREW DIN0912-M 6X12
0912060123
$3.08
8
STIFF JOINT L/S 07
76207096017
Unavailable
9
STIFF JOINT R/S 07
76207096018
Unavailable
10
REAR TANK FITTING CONSOLE 07
76207096024
Unavailable
11
REAR TANK FITTING RUBBER
76207096034
Unavailable
12
FITTING BUSH1 FUEL TANK
76207096021
Unavailable
13
FITTING BUSH2 FUEL TANK
76207096035
Unavailable
14
AH SCREW DIN912 M8x110
0912081103
Unavailable
15
LOCK WASHER 8MM
36003014000
$2.05
16
SELF LOCKING NUT DIN0985-M 8
0985080003
$2.05
17
REAR TANK ANCHOR BOLT 07
76207096030
Unavailable
18
Inner bushing sleeve 34mm
58512063000
$24.39
19
rubber bushing
56401040000
$5.23
20
BUSHING SLEEVE OUT 2001
58512062000
$17.68
21
silentbloc 20x15-M6x10-(1)
43205062100
$13.92
22
SEAT FITTING ON REAR TANK 07
76207096029
Unavailable
23
HH COLLAR SCREW M8X16 TX40
0025080166
$4.11
24
FLAT HEAD SCREW DIN965 M5x12
0965050123
Unavailable
25
WATER TANK L/S CPL. 07
76212099052
Unavailable
26
WATER TANK R/S CPL. 07
76212099053
Unavailable
27
oil plug cpl. M24x3
58030020100
$5.23
28
O-RING 19,00X3,00 NBR
0770191015
$2.05
29
AH SCREW DIN912 M8X50
0912080503
$3.08
30
FUEL CONNECTION CPL. 01
58507008000
$35.24
31
FUEL FLANGE SHEET 01
58507008050
$10.84
32
Flat head screw DIN7991 M5X10
0991050102
$2.05
33
O-RING 12,00X2,00 NBR 70
0770120020
$2.05
34
COPPER GASKET 10,2X14X2 MM 01
0603101420
$3.08
35
CU-SEAL RING DIN7603-10X16X1
42013226000
$2.05
36
RING COMPONENT 10/6MM
49138493000
$10.74
37
FUEL FLANGE-STRAINER 03
58507008010
$5.60
38
HOLLOW SCREW M10X1X24 RALLY 02
58507025000
Unavailable
39
Self lock. nut DIN985-M6-A2
0985060003
$2.05
40
FUEL TANK CPL. FRONT L/S
7620701300004A
Unavailable
41
FUEL TANK CPL. FRONT R/S
7620711300004A
Unavailable
42
FRONT FUEL TANK FILLER 07
76207013007
Unavailable
43
VITON SEAL FOR FRONT TANK 07
76207013006
Unavailable
44
FILLER CAP CPL. SMALL
49007008044
$23.65
45
GASKET FOR FILLER CAP HIGH
59007009000
$8.03
46
BRACKET FOR FRONT MASK
76207013003
Unavailable
47
FIXING PLATE FOR FRONT MASK
76207013005
Unavailable
48
HH SCREW DIN0933-M 6X10
0933060103
$1.49
49
FLAT HEAD SCREW DIN0965-M 4X12
0965040123
$1.49
50
SEAT RALLY 06
76207040000
Unavailable
51
Clip
58307040552
Unavailable
52
QUICK RELEASE CPL. '96
58307040551
$24.21
53
T-connector TS-6 03
60015022000
$5.98
54
Hose 5x8mm
58507007001
Unavailable
55
OETIKER HOSE CLAMP 13,3MM
58007117200
$3.08
56
HOSE OG.ECO 1TBSE 7X13MM
58507116100
Unavailable
57
PLUG F. FUEL HOSE CPC 2003
58507010300
Unavailable
58
O-ring VITON f. plug CPC 0
58507012000
$6.26
59
CABLE TIE 100/2,5MM BLACK
44011076100
Unavailable
60
VALVE FOR TANK BREATHING 02
57307019000
Unavailable
61
LOCK WASHER 8MM
36003014000
$2.05
62
HH collar screw M8x20
0025080206
$2.05
71
CU-SEAL RING 10 X 14 X 1,5
58038022900
$2.05
72
HH PLUG M10X1 WS13
54630021000
$5.98
73
BEARING BUSHING OUTSIDE 03
60007060000
$11.12
74
AH SCREW DIN912 M8X55
0912080553
$2.05
75
AH collar screw DIN0912 M8x40
0912080403
$2.05
76
BUSHING SLEEVE IN. 30,5MM 2001
58512068000
Unavailable
77
AH collar screw DIN0912 M8x40
0912080403
$2.05
