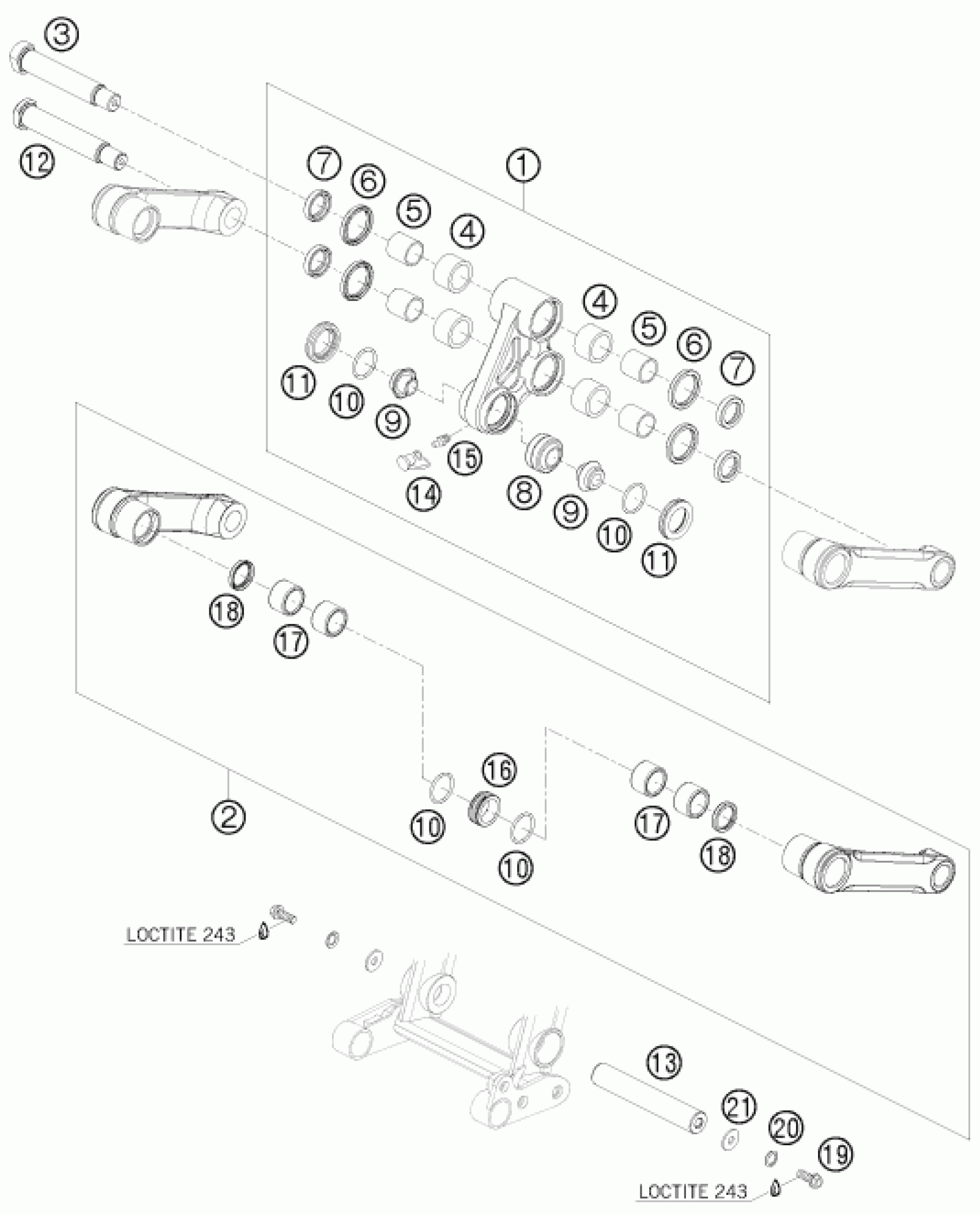

KTM 690 RALLY FACTORY REPLICA 2009 PRO LEVER LINKING Diagram

#

Description
Price

1

TRIANGLE LEVER CPL.

76203032044

Unavailable

2

PULL ROD CPL.

76203083044

Unavailable

3

BOLT FOR CANTILEVER 07

76203032010

Unavailable

4

Needle bushing HK 2016 / 20x26

54603097000

$15.04

5

INNER RING INA 17/20/20 07

76203083060

Unavailable

6

SHAFT SEAL RING 25X32X4

0760253240

Unavailable

7

BUCKET FOR SHAFT SEAL RING 07

76203090000

Unavailable

8

SPHERICAL BEARING INA GE14BW

76203083050

Unavailable

9

COLLAR BUSHING 07

76203085000

Unavailable

10

O-RING 21,00X2,00 NBR70

0770021020

$2.05

11

SUPPORT FOR SEAL RING

76203032020

Unavailable

12

BOLT FOR CANTILEVER PULL ROD

76203032015

Unavailable

13

PULL ROD ANCHOR BOLT

76203083010

Unavailable

14

CAP WITH LOOP RED

53003099000

$2.05

15

GREASE FITTING M6 STRAIGHT

72003035000

$2.05

16

SPACER RING

76203083005

Unavailable

17

NEEDLE BEARING HK 1816

56503195100

$13.92

18

SHAFT SEAL RING 18X24X4

0760182442

$5.79

19

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

20

LOCK WASHER 8MM

36003014000

$2.05

21

WASHER DIN9021-A 8,4

0021080003

$1.49
