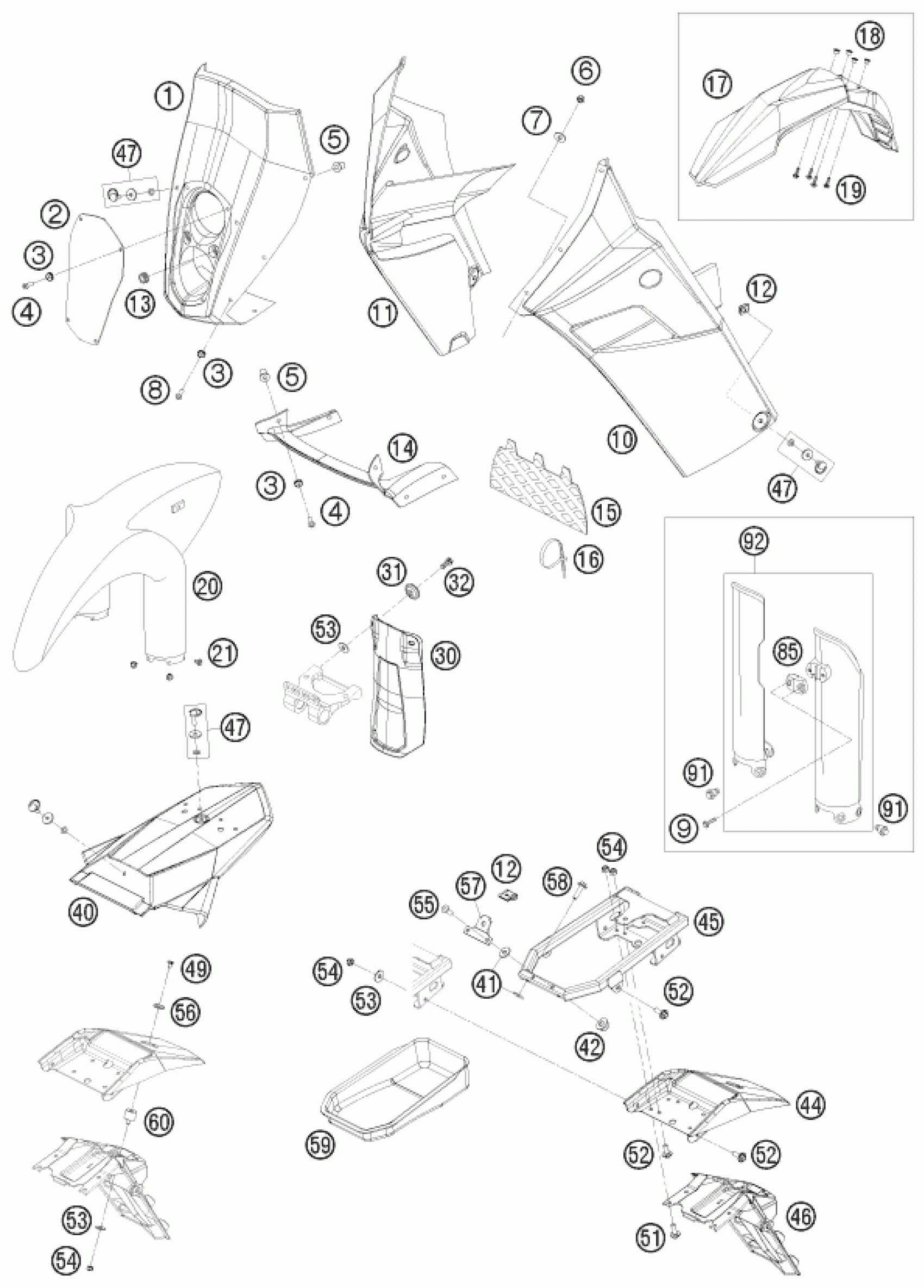

KTM 690 RALLY FACTORY REPLICA 2009 MASK, FENDERS Diagram

#

Description
Price

1

HEADLIGHT MASK 07

76211004000

Unavailable

2

HEADLIGHT PANE FRONT MASK

76214010020

Unavailable

3

SPECIAL WASHER D=12MM 03

60008046000

$4.11

4

O.H.SCREW DIN0966-M 5X20 BLACK

0966050208

$2.05

5

blind plug nut M5 WN16A

60008008050

$3.73

6

Self locking nut DIN 985 M5

0985050003

$2.05

7

washer DIN 9021 A - 5.3

0021050003

$1.49

8

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

9

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

10

FRONT MASK L/S 07

76211003000

Unavailable

11

FRONT MASK R/S 07

76211002000

Unavailable

12

Clip

45007040052

Unavailable

13

rubber grommet D=8mm open

31008060000

$2.05

14

AIR BAFFLE

76211004020

Unavailable

15

OIL RADIATOR GRID

76211004030

Unavailable

16

CABLE TIE 100/2,5MM BLACK

44011076100

$1.49

17

FENDER FRONT ORANGE 06

6300801000004

$33.17

18

COLLAR BUSHING

50213161000

$3.08

19

HH collar screw M6x20 TX30

0024060206

$3.08

20

FENDER FRONT BLACK

5850801020030

Unavailable

30

SPLASHBACK 08

76506010000

$10.46

31

BUCKET

72210079000

$3.00

32

HH collar screw M6x16 TX30

0025060166

$3.08

40

REAR FENDER 07

76208014000

Unavailable

44

NUMBER PLATE SUPPORT 07

76208015000

Unavailable

45

REAR FRAME

76203002100

Unavailable

46

NUMBER PLATE CARRIER 05

58608015000

$35.43

47

Quick lock

45007040051

$20.19

49

FLAT HEAD SCREW DIN7991 M6X10

0991060103

Unavailable

51

HH collar screw M6x13 TX30

0024060136

$3.08

52

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

53

Washer DIN9021-A 6.4

0021060003

$2.05

54

Self lock. nut DIN985-M6-A2

0985060003

$2.05

55

Flat head screw DIN7991 M6X35

0991060353

Unavailable

56

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

$4.11

58

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

59

REAR SHELL

76208019100

Unavailable

60

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

85

CLAMP F.SPEED.CABLE D=6MM 2001

59001085100

$3.08

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROTECT L/S+R/S BLACK 02

5900109400030

$40.20

42

Self locking nut M6 - 10

56509064100

$2.05

57

MOUNTING BRACKET REAR FENDER

76203002104

Unavailable

41

STEEL WASHER 6,4X17X3

50232050001

$5.23

21

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05
