Description

Price

1

FRONT WHEEL CPL.1,6X21EXL

7730900104430

$435.74

2

FRONT WHEEL HUB CPL. 08

78009010044

$305.64

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

$25.70

4

Grooved ball bearing 6906

0625069068

$34.68

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

SPACER BUSHING FRO. WHEEL 30MM

76209013044

Unavailable

10

SPOKE M4,5x226-21'' 08

78009174226

$4.11

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072100

$2.05

12

FRONTRIM 1,60X21''EXCELAL4 BLK

5460907010030

Unavailable

13

Tube protector 21"

50309073000

$10.09

14

Hose 21"

50309075000

$39.45

15

RING WRENCH 32MM

76212060032

Unavailable

20

FRONT AXLE D=30MM 04

58509081100

Unavailable

21

COLLAR SCREW FRONT AXLE WS32

76209082000

Unavailable

23

BRAKE DISC FRONT 07

58509060000

$351.27

24

HH collar screw M6x16 TX30

0025060166

$3.08

35

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

36

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

31

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05

32

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

$20.19

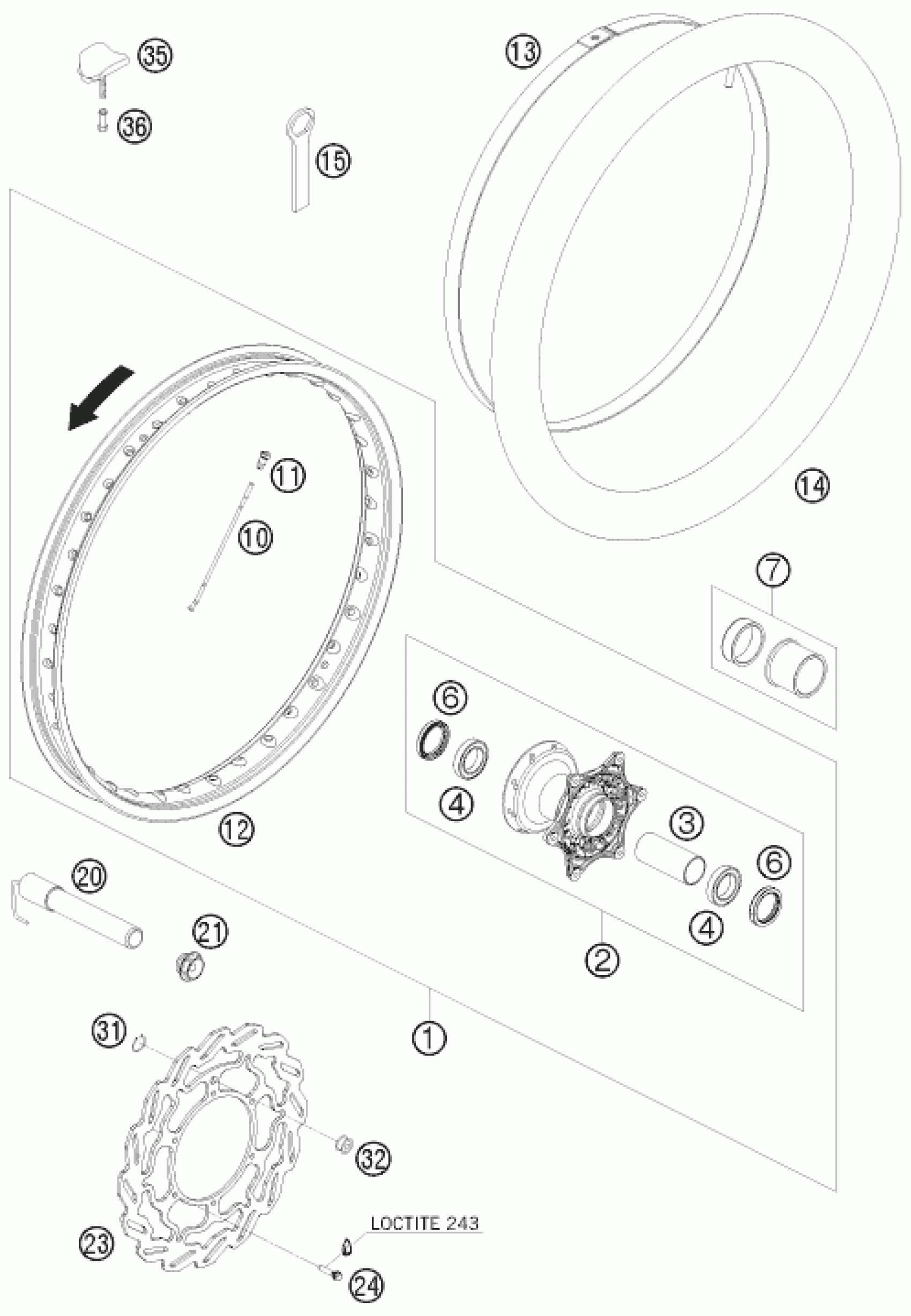

KTM 690 RALLY FACTORY REPLICA 2009 FRONT WHEEL Diagram

FRONT WHEEL CPL.1,6X21EXL

FRONT WHEEL HUB CPL. 08

BEA.SPACERTUBE 35X2 L=79,4 03

Grooved ball bearing 6906

Radial shaft seal 35X47X7 TC

SPACER BUSHING FRO. WHEEL 30MM

SPOKE M4,5x226-21'' 08

SPOKE NIPPLE M4,5X0,75 8X21

FRONTRIM 1,60X21''EXCELAL4 BLK

Tube protector 21"

Hose 21"

RING WRENCH 32MM

FRONT AXLE D=30MM 04

COLLAR SCREW FRONT AXLE WS32

BRAKE DISC FRONT 07

HH collar screw M6x16 TX30

RIM LOCK VM1 (1,60'')

NUT FOR WHEEL HOLDER '96

CIRCLIP DIN0471- 9X1 INOX

MAGNET FOR DIGITAL SPEEDOM. 03
