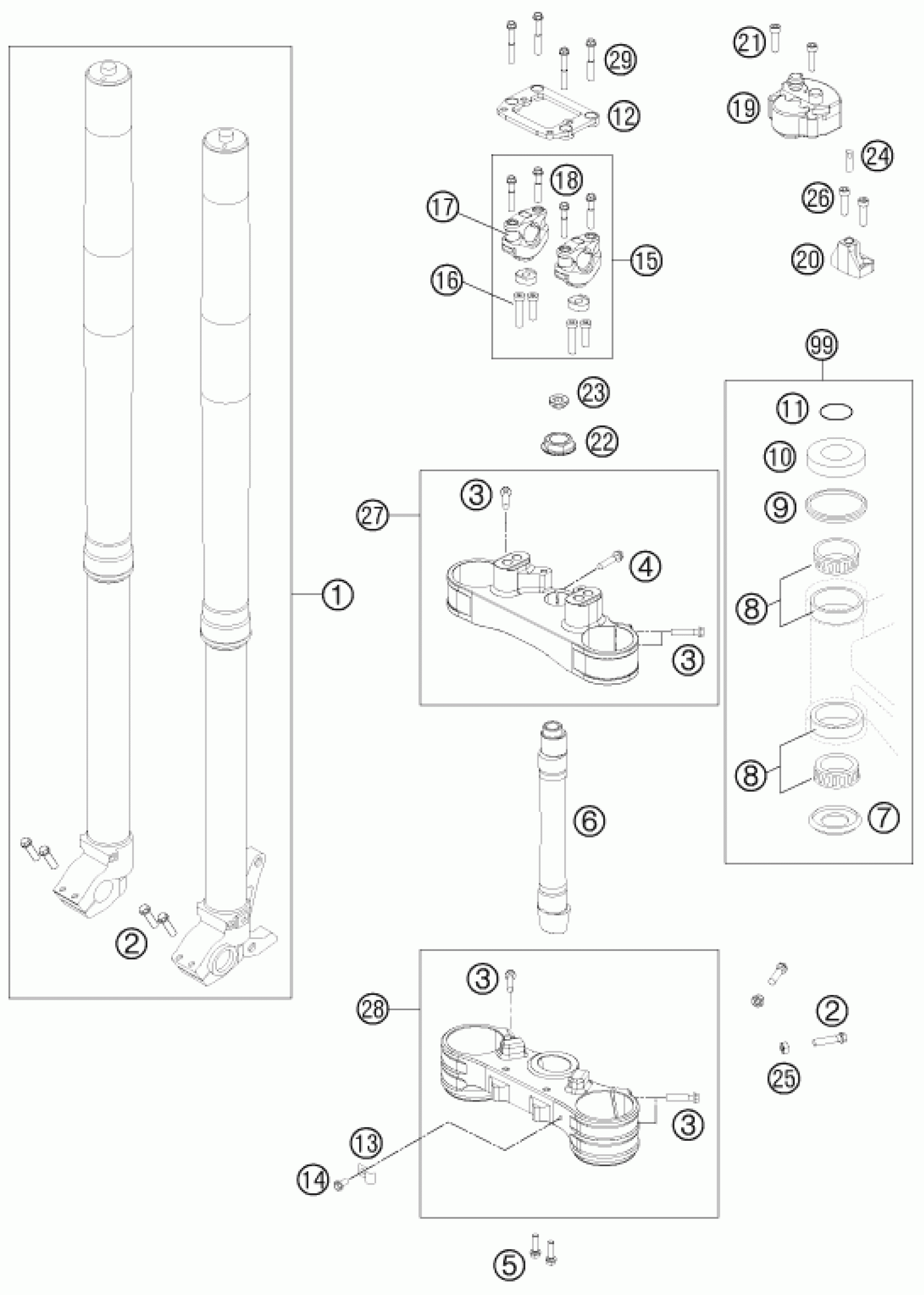

KTM 690 RALLY FACTORY REPLICA 2009 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

4

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

5

HH collar screw M8x20

0025080206

$2.05

6

FORK TUBE

76201033000

Unavailable

7

O-RING SUPPORT W. SEALINGLIP

54601084200

$19.35

8

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

9

STEARING HEAD GASKET TOP

54601184000

$7.10

10

STEERING HEAD COVER SHORTENED

76201086000

Unavailable

11

O-RING 25X3,55 NBR70 05

0770025035

$1.49

12

GPS SUPPORT MILLED 07

R0502003000

Unavailable

13

CLAMP FOR WIRING HARNESS

50211096000

Unavailable

1

FORK KTM RALLY FACT.REP. 2009

14187E1001

Unavailable

2

HH collar screw M8x25

0025080256

$2.05

3

HH collar screw M8x30

0025080306

$3.08

14

HH collar screw M5x16 TX30

0025050166

$2.05

15

PHDS PROGRESSIVE H-BAR DAMPING

SXS07125200

Unavailable

16

AH SCREW DIN0912-M10X25 10.9

0912100256

$4.11

16

AH SCREW DIN6912-M10X35 10.9

0912100356

$4.11

17

ELASTOMER GREEN/SOFT

SXS05125203

Unavailable

17

ELASTOMER YELLOW/MEDIUM

SXS05125204

$32.29

17

ELASTOMER RED/HARD

SXS05125205

Unavailable

18

HH collar screw M8x45 TX40

0025080456

$4.11

19

STEERING DAMPER

58512050100

$473.44

20

STEERING DAMPER BRACKET CPL 07

76203001079

Unavailable

21

AH SCREW DIN0912-M 6X25

0912060253

$2.05

22

LOCKING NUT M20 STEERING HEAD

76206450404

Unavailable

23

LOCKING SCREW M20

76206450405

Unavailable

24

PIN F.STEERING STAB. 8MM 05

58502006100

Unavailable

25

flanged nut M8 WS10

46030045000

$7.85

26

AH SCREW DIN6912 M6X16 SL

0012060164

$2.05

27

TOP TRIPLE CLAMP 22MM 07

76201034022

Unavailable

28

BOT. TRIPLE CLAMP CPL. 22MM 07

76201032022

Unavailable

29

HH collar screw M8x55 TX40

0025080556

$5.23

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
