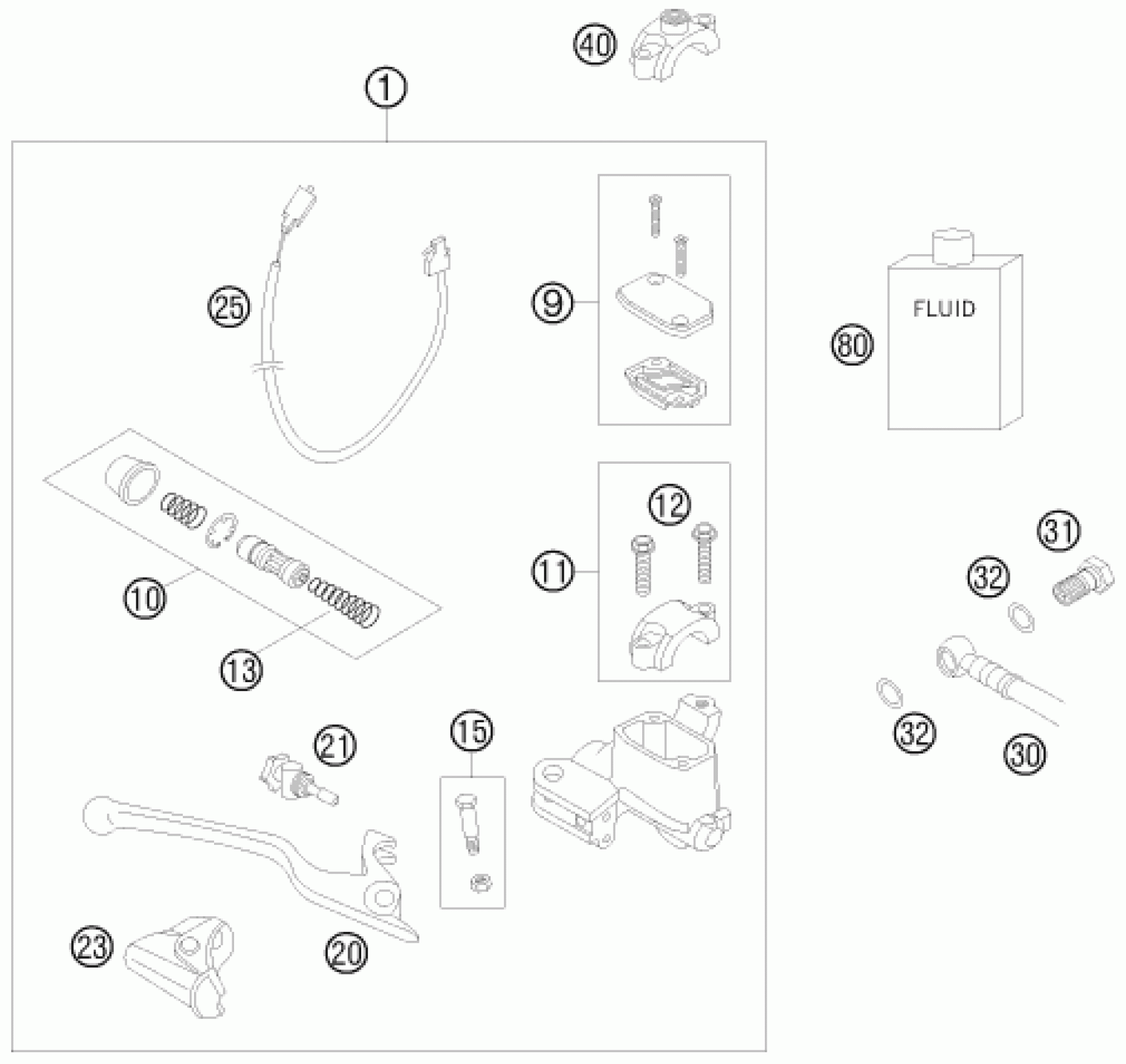

KTM 690 RALLY FACTORY REPLICA 2009 FRONT BRAKE CONTROL Diagram

#

Description
Price

1

HANDBRAKE CYL. NAT. SMALL 2004

50313001200

Unavailable

9

HANDBRAKE CYL.COVER CPL.NATURE

50313003000

$24.68

10

REP.SET PISTON D=11 EXC 2001

50313008300

$33.65

11

CLAMP CPL. NATURE

50313005000

Unavailable

12

HH collar screw M6x25 TX30

0025060256

$3.08

13

SPRING PISTON BRAKE FRONT 11MM

50213050050

Unavailable

15

LEVER SCREW CPL. 2001

50313006100

$12.61

20

HANDBRAKE LEVER SHORT 2001

50313002100

$30.10

21

ADJUSTING SCREW CPL. SX 2000

50313007000

$14.95

23

PROTECTION CAP HAND BRAKE CYL.

50313004000

$12.61

25

BRAKE LIGHT SWITCH FRONT 2002

50311050100

$64.60

30

BRAKE HOSE FRONT 1300MM

76213011000

Unavailable

31

banjo bolt M10x1x19 black

54813020100

$9.90

32

sealing ring DIN 7603 10x14x1

0603100141

$2.05

40

Clamp for mirror

58012040150

$22.81

80

Brake fluid DOT5.1 0,25L

00062030000

$12.52
