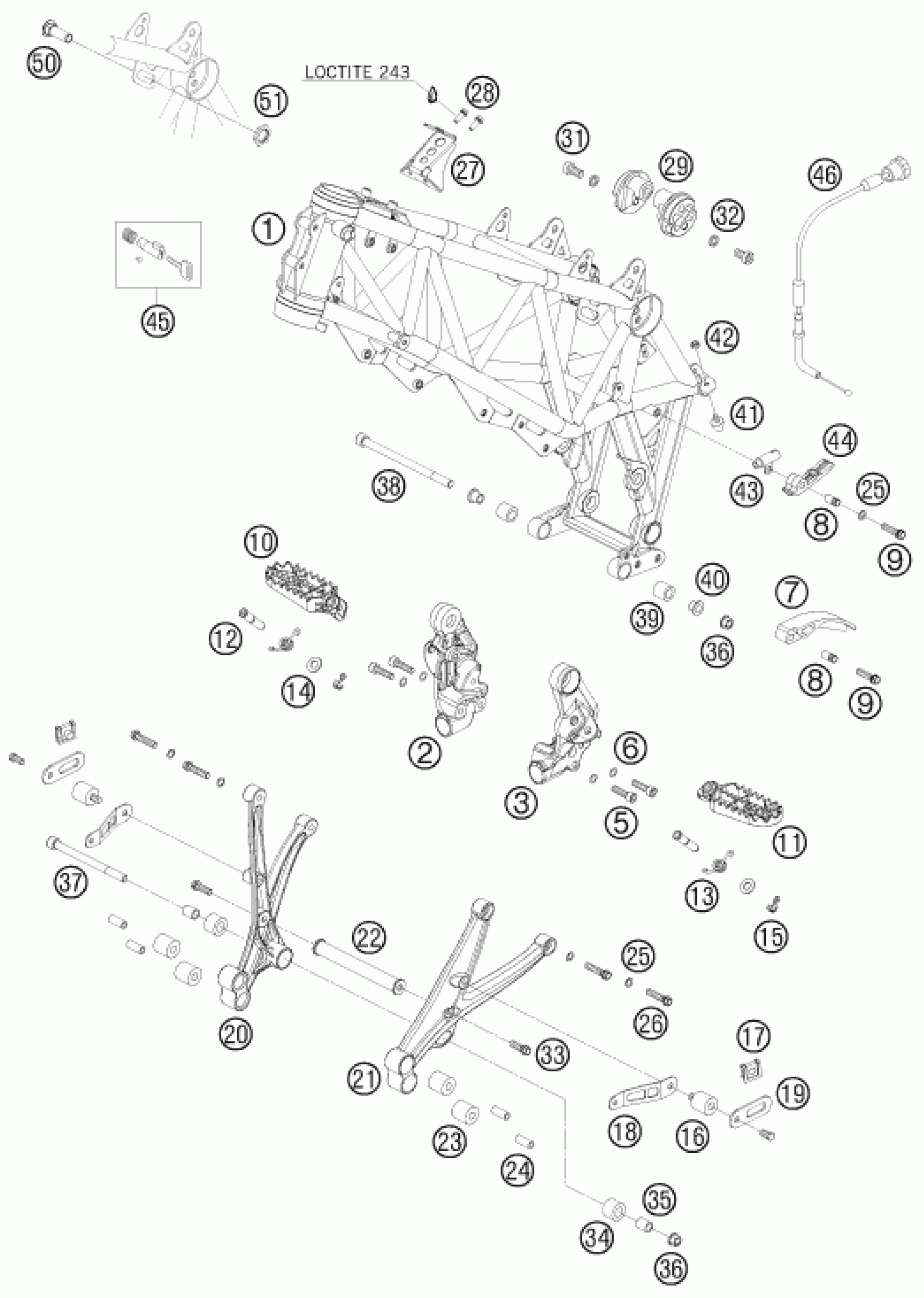

KTM 690 RALLY FACTORY REPLICA 2009 FRAME Diagram

#

Description
Price

1

FRAME RALLYE 07

7620300100090

Unavailable

2

FOOTREST BRACKET RIGHT 07

76203039000

Unavailable

3

FOOTREST BRACKET LEFT 07

76203038000

Unavailable

5

AH SCREW DIN0912-M 8X30

0912080303

$2.05

6

LOCK WASHER 8MM

36003014000

$2.05

7

CHAIN SLIDING PART 08

76204066000

Unavailable

8

BUSHING 8,2X10X20

51103053051

$4.11

9

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.08

10

FOOTREST RIGHT RALLY 07

76203041250

$108.17

11

FOOTREST LEFT RALLY 07

76203040250

$115.56

12

BOLT FOR FOOTREST 9,8 X 50

54603044000

$12.43

13

FOOTREST SPRING L/S & R/S

54603041000

$5.23

14

washer DIN 125 A 10.5

0125100003

$2.05

15

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

16

RUBBER GROMMET 30X20-M8X12

51005062100

$12.89

17

RANGE CHANGE METAL NUT M8

54603048000

$4.11

18

RADIATOR STRUT

76203005030

Unavailable

19

FUEL TANK SUPPORT PLATE

76203002420

Unavailable

20

ENGINE SUPPORT RIGHT 07

76203006000

Unavailable

21

ENGINE SUPPORT LEFT 07

76203005000

Unavailable

22

CROSS MEMBER CPL. 08

76203005040

Unavailable

23

RUBBER INSERT

76203005031

$25.89

24

BUSH ENGINE SUPPORT

76203005050

Unavailable

25

LOCK WASHER 8MM

36003014000

$2.05

26

HH collar screw M8x35 TX40

0025080356

$4.11

27

JOINT PLATE SEAT 07

76203001066

Unavailable

28

AH SCREW DIN0912-M 6X16

0912060163

$1.49

29

ADAPTER MONOSHOCK ANCHOR BOLT

76203001072

Unavailable

31

AH SCREW DIN0912-M10X16

0912100163

Unavailable

32

PAIR OF WASHERS M10 NORDLOCK

50233041100

$4.11

33

HH collar screw M8x20

0025080206

$2.05

34

ELASTOMER BEARING

76203018000

Unavailable

35

COLLAR BUSH FOR ELAST.BEARING

76203019000

Unavailable

36

COLLAR NUT M10 WS=13

54630044000

$1.49

37

AH SCREW DIN912 M10X140 10.9

0912101406

Unavailable

38

AH SCREW DIN 912 M10X190 10.9

0912101906

Unavailable

39

ELASTOMER BEARING

76203016000

Unavailable

40

COL. BUSH. F. EL. MOT. BEARING

76203017000

Unavailable

41

PUMP RUBBER KP PARABOLIC

76203001091

Unavailable

42

Self lock. nut DIN985-M6-A2

0985060003

$2.05

43

SLEEVE FOR CHOKE CABLE

76202095051

Unavailable

44

CHAIN SLIDING PIECE 03

54804067000

$5.23

45

STEERING HEAD LOCK CPL. ZADI

71003007000

$32.06

46

CHOKE-CABLE l = 235 07

76202095000

Unavailable

50

FIXING SCREW TANK REAR

58512068100

Unavailable

51

NUT F.TANK BRAKET REAR

60512063050

$26.55
