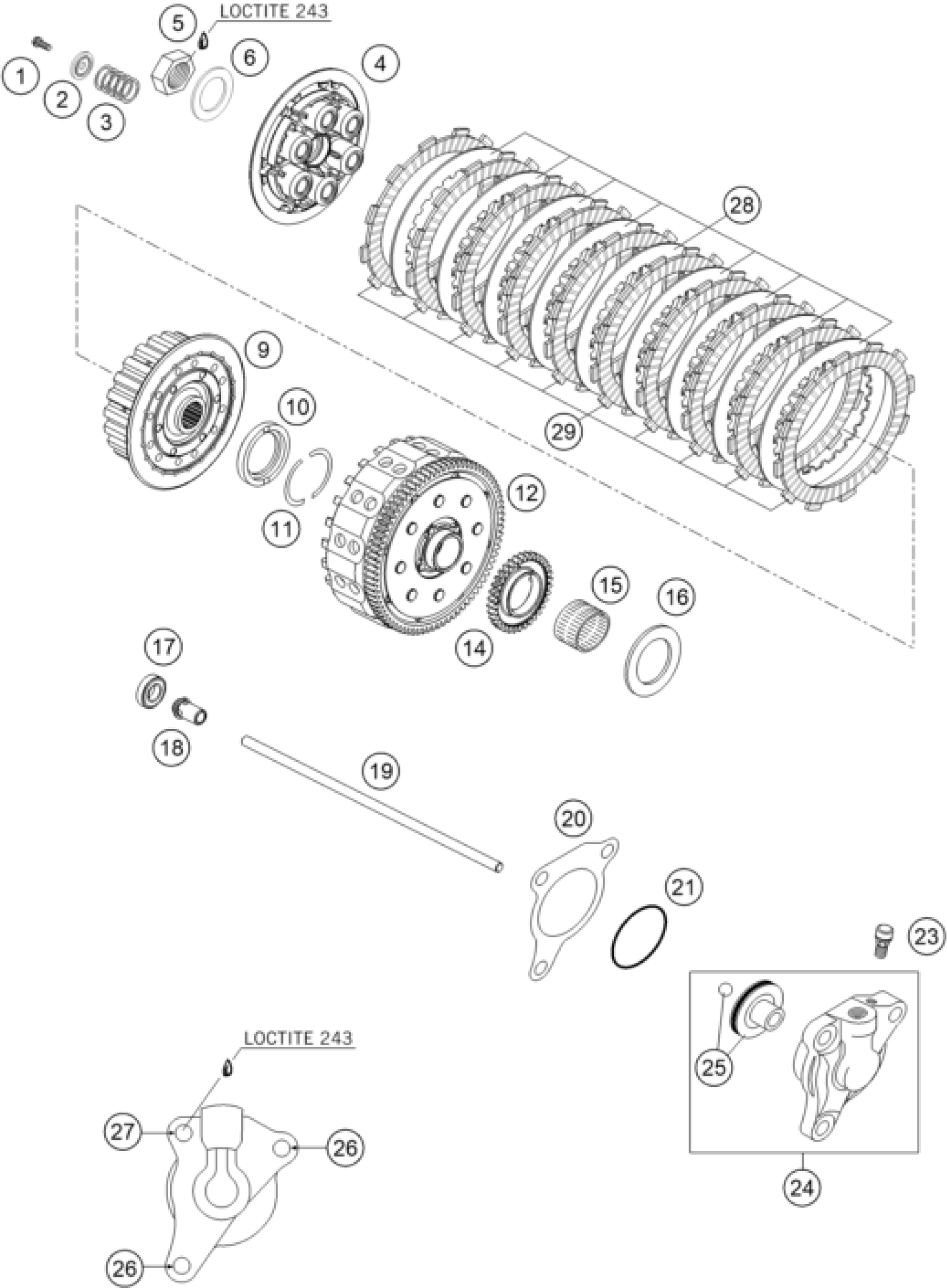

KTM 690 RALLY FACTORY REPLICA 2009 CLUTCH Diagram

AH SCREW DIN6912-M 6X20 8.8

0984060203

$2.05

SPRING RING 07

76232006000

Unavailable

CLUTCHSPRING 3,0X33,5

58532080000

$8.87

PRESSURE PLATE 07

76232003000

Unavailable

HEXAGON NUT M20X1,5 7MM

60036073050

$6.91

thrust washer 20x32x2

47032020000

$4.11

INNER CLUTCH HUB 07

76232002000

Unavailable

STEPPED WASHER 07

75032009000

$9.34

HALF-WASHER 07

75032007000

$11.12

OUTER CLUTCH HUB CPL.

76232001044

Unavailable

OIL PUMP DRIVE WHEEL 07

75032050001

$4.11

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

WASHER 26X40X2 07

75032017000

$6.35

deep groove ball bearing 6001.

0625060016

$18.88

PRESSURE BOLT 08

75032055100

$9.90

PUSH ROD 08

75032054200

$14.95

GASKET FOR SLAVE CYLINDER

59032065000

$5.60

O-ring 30x1.5 NBR 70

0770300015

$2.05

BLEEDER SCREW WITH CAP

54732064000

$21.96

OUTPUT CYLINDER CPL. 27MM 03

59032061044

$240.75

PISTON + O-RING + BALL 27MM

59032066000

$240.75

HH collar screw M6x35 TX30

0025060356

$3.08

HH collar screw M6x20 TX30

0025060206

$3.08

STEEL DISK 1,5 MM LC4'94

58332112000

$13.83

LINING DISK 2,7MM FCC 02

58332011300

$28.98
