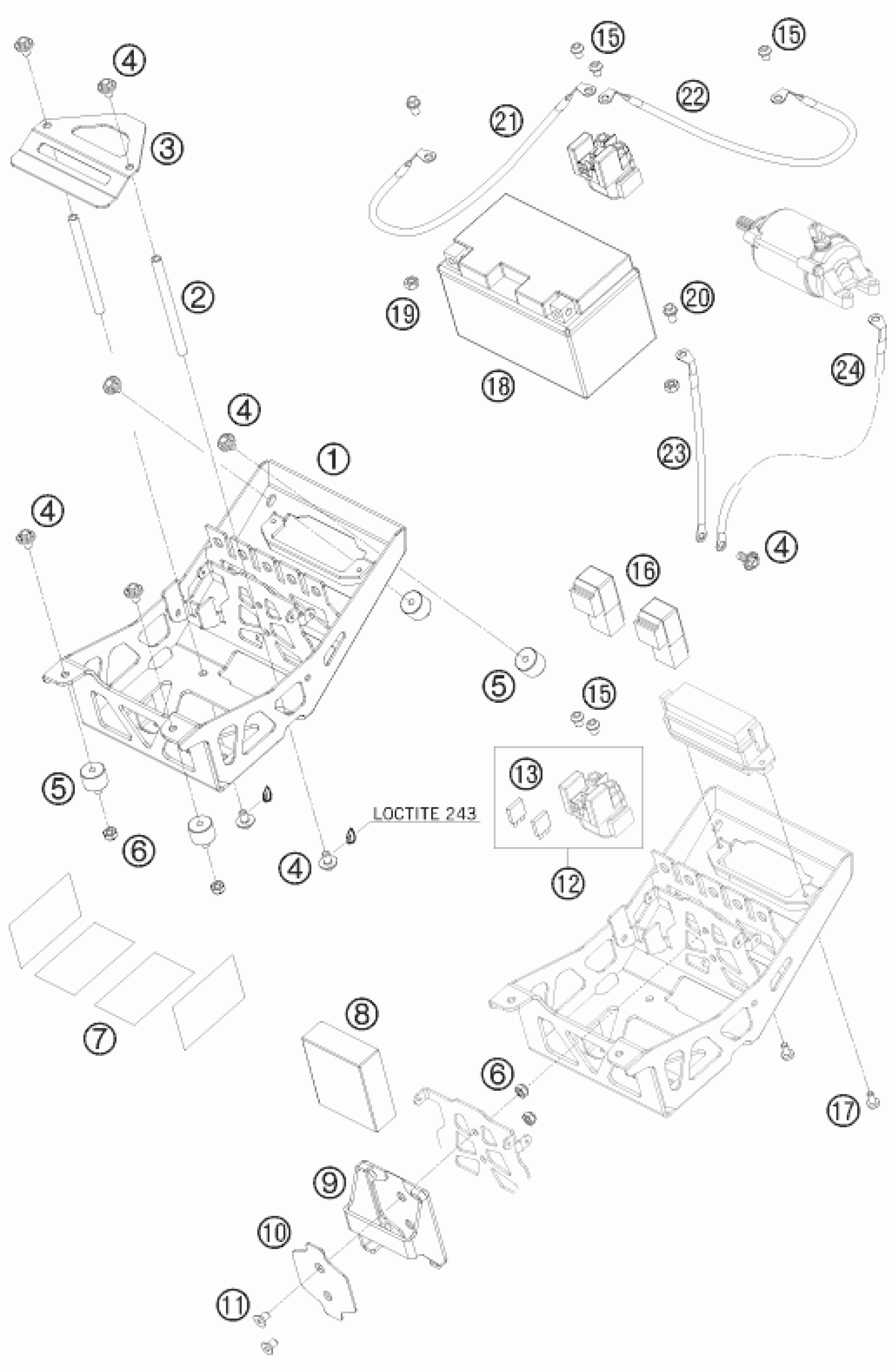

KTM 690 RALLY FACTORY REPLICA 2009 BATTERY Diagram

#

Description
Price

1

BATTERY BOX

76211000000

Unavailable

2

SPACER PIN BATTERY BOX

76211000070

Unavailable

3

HOLDER FOR BATTERY

76211000050

Unavailable

4

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

5

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

6

Self lock. nut DIN985-M6-A2

0985060003

$2.05

7

METAMOLL 90X45X3MM 03

59003001099

$2.05

8

CDI DIGITAL BOX

76239031000

Unavailable

9

RUBBER BRACKET FOR DIGI-BOX 03

58439030200

$7.25

10

SUPPORT FOR RUBBER BRACKET 03

58439030250

$15.51

11

FLAT HEAD SCREW DIN7991 M6X10

0991060103

Unavailable

12

Starter relay

76211058000

$79.19

13

Plug-in fuse, big 30A

58011109130

$2.05

15

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

16

STARTER RELAY '96

58411057000

$22.82

17

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

18

BATTERY 12V 8,6AH 03

58411053100

$309.38

19

Hex. nut DIN 934 M6

0934060003

$1.49

20

HH collar screw M6x10 TX30

0025060106

$3.08

21

BATTERY CABLE 07

76211086000

Unavailable

22

STARTER CABLE

76211059000

Unavailable

23

GROUND CABLE

76211097000

$21.87

24

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97
