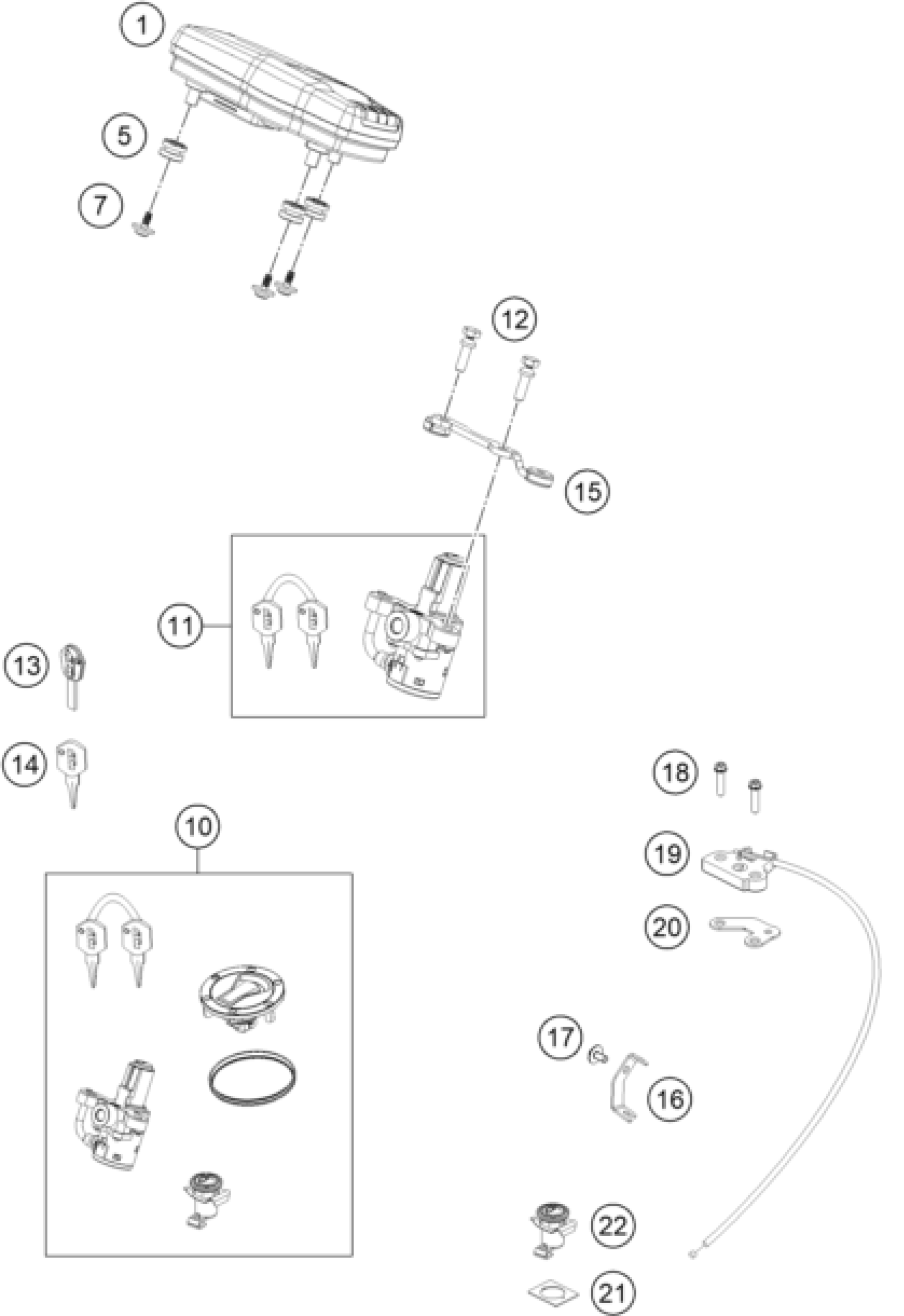

KTM 690 DUKE BLACK 2012 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

17

COLLAR SCREW M6X12 TX

0024060123

Unavailable

18

HH collar screw M6x25 TX30

0025060256

Unavailable

19

SEAT LOCKING MECHANISM

76007050050

Unavailable

20

BRACKET SEAT LOCKING MECHANISM

76007052000

Unavailable

21

ANTI-ROTATION ELEMENT SEATLOCK

76007053000

Unavailable

15

ALU PLATE IGNITION LOCK COVER

76011066095

Unavailable

5

RUBBER SLEEVE 7X10,8X16MM

76014069051

Unavailable

7

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

10

LOCK SET

76011066044

Unavailable

11

IGNITION + STEERING LOCK

76011066000

Unavailable

12

Tear-off screw M6 ignition loc

76011064200

Unavailable

16

SEAT LOCK BRACKET

76007051000

Unavailable

1

SPEEDOMETER

76014069000

Unavailable

1

SPEEDOMETER

76014069100

Unavailable

13

BLANK KEY 690

76011067100

Unavailable

22

SEAT LOCK

76007050000

Unavailable

14

KEY SET

76011067000

Unavailable
