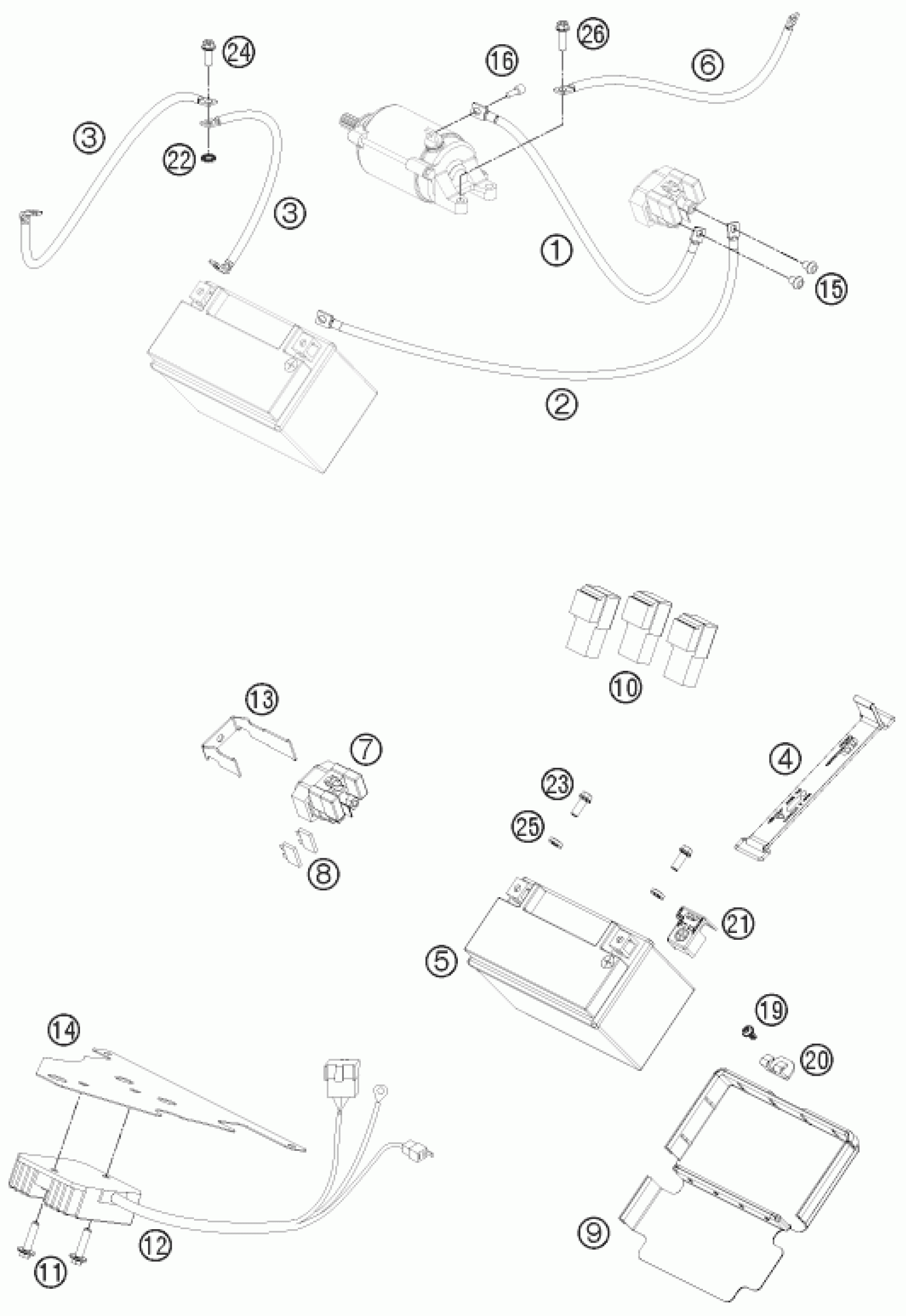

KTM 690 DUKE BLACK 2012 BATTERY Diagram

#

Description

Price

14

SPLASH GUARD

76003087000

Unavailable

24

HH collar screw M6x12 TX30

0025060126

Unavailable

26

HH collar screw M6x20 TX30

0025060206

Unavailable

6

GROUND CABLE L=450MM 05

61011097000

Unavailable

1

STARTER CABLE L=730 MM

76011059000

Unavailable

2

BATTERY CABLE L=430 MM

76011059050

Unavailable

3

GROUND CABLE L=470MM 03

60011097000

Unavailable

4

Rubber holder, battery

76011056000

Unavailable

5

BATTERY 12V/8AH

76011053100

Unavailable

7

Starter relay

76211058000

Unavailable

8

Plug-in fuse, big 30A

58011109130

Unavailable

9

BATTERY -BASE

76011054050

Unavailable

10

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

11

HH collar screw M6x30 TX30

0025060306

Unavailable

12

VOLTAGE REGULATOR

60011034100

Unavailable

13

BRACKET STARTER RELAY

76011058050

Unavailable

15

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

16

SHCS DIN 912 M5x8

0912050083

Unavailable

19

EJOT PT screw K50x12

0081050121

Unavailable

20

RETAINING PLATE BATTERY

76011055000

Unavailable

21

COVER POSITIVE POLE

62111059060

Unavailable

22

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

23

HH collar screw M6x16 TX30

0025060166

Unavailable

25

WASHER 6 X 12 X 3

12011016000

Unavailable
