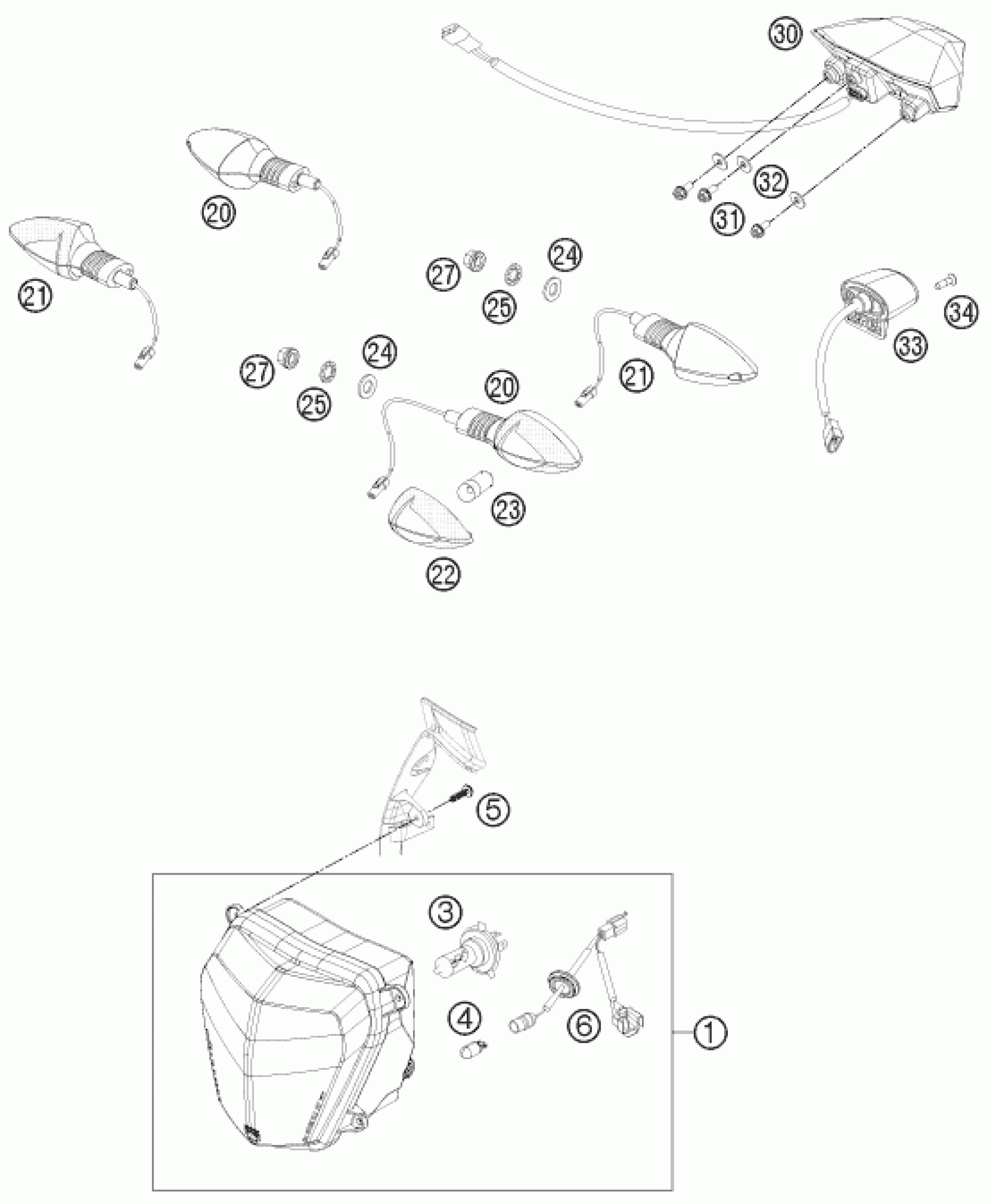

KTM 690 DUKE BLACK 2012 LIGHTING SYSTEM Diagram

#

Description

Price

3

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

6

HARNESS HEAD LIGHT

76011079000

Unavailable

1

HEAD LIGHT CPL.

76014001044

Unavailable

4

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

5

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

Unavailable

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

Unavailable

22

FLASHER LENS L/S R/S TRANSP.06

60114028000

Unavailable

23

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

24

Washer DIN0433-M10

0433100003

Unavailable

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

27

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

30

REAR LIGHT

76014040000

Unavailable

31

HH collar screw M5x12 TX30

0025050126

Unavailable

33

LICENSE PLATE ILLUMINATION LED

76014047000

Unavailable

34

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

32

washer DIN 9021 A - 5.3

0021050003

Unavailable
