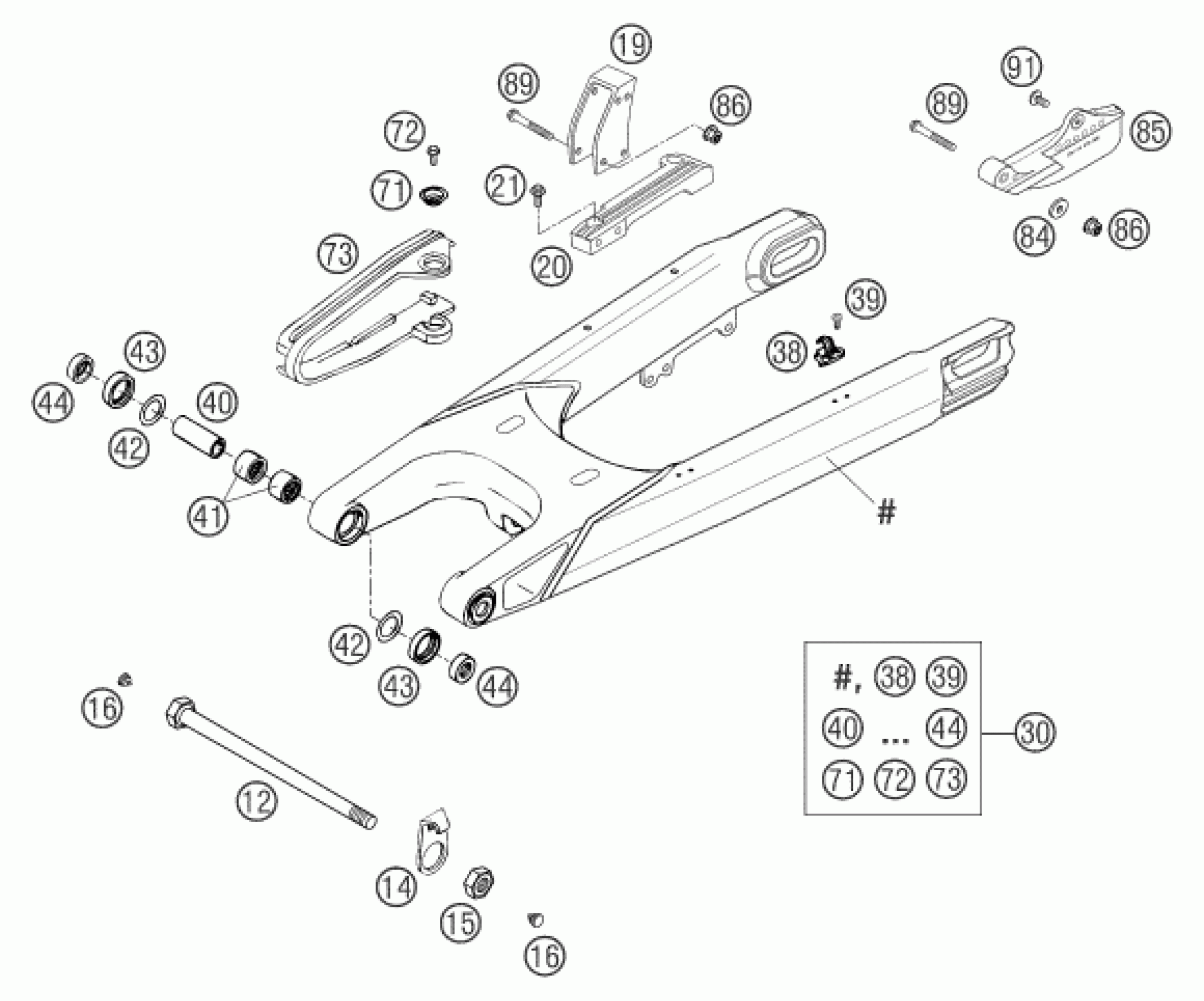

KTM 660 SMS <2004> SWING ARM Diagram

#

Description
Price

12

SWINGARM BOLT KPL. L=253

54603014100

$37.03

14

BRAKE HOSE GUIDE '89

50230211000

$3.98

15

Self locking nut M14x1.5 WS19

54603015000

$5.51

16

PLASTIC CAP SFL10

54403135000

Unavailable

19

CHAIN GUARD TOP SM 2003

57304067000

$180.52

20

CHAIN GUARD BOTTOM SM 2003

57304066100

$91.73

21

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

30

SWINGARM CPL. 660SM FACT. 04

57304030244

Unavailable

38

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

39

SPECIAL SCREW M 5,0X10

0010050103

$2.05

40

BUSHING SLEEVE 15X20X38,75

50203081700

$17.20

41

NEEDLE BUSH HK2012V

59004031000

$15.51

42

STOP DISK 22,2X31,7X1

54603036000

$3.08

43

radial shaft seal 25x32x7

0760253270

$6.63

44

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

71

BUCKET

72210079000

$3.00

72

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

73

CHAIN SLIDING GUARD DUKE'94

58307073000

$26.83

84

STEEL WASHER 6,4X17X3

50232050001

$5.23

85

CHAIN GUIDE CPL. REAR LC4 '98

58404070000

$20.41

86

Self locking nut M6 - 10

56509064100

$2.05

89

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

91

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08
