Description

Price

1

* NUMBER PLATE SMS 03

5730800700049

Unavailable

2

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

3

BUSHING FOR NUMBER PLATE

57308006000

Unavailable

4

SUPPORTING TUBE FOR GUIDE BOW

57308008000

Unavailable

5

THREAD PIN DIN0913-M 5X5

0913050050

Unavailable

6

SUPPORT FOR NUMBER PLATE 04

57301035200

Unavailable

7

CABLE GUIDE SMS 2003

57301025050

Unavailable

8

THREAD PIN DIN0914 M6X30

0914060030

Unavailable

9

rubber grommet D=8mm open

31008060000

$2.05

12

FENDER FRONT 660 SM FACTORY 02

5730801000004

Unavailable

18

BRAKE HOSE GUIDE 2000

59008019000

$4.11

20

SPACER BUSHING 7X10X7,5

50208020000

$4.11

22

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

24

FENDER REAR CARBON 03

5730801410049

Unavailable

27

RANGE CHANGE METAL NUT M5

54603048200

$5.23

28

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

29

RUBBER WASHER 5X21X3

51005082200

$1.49

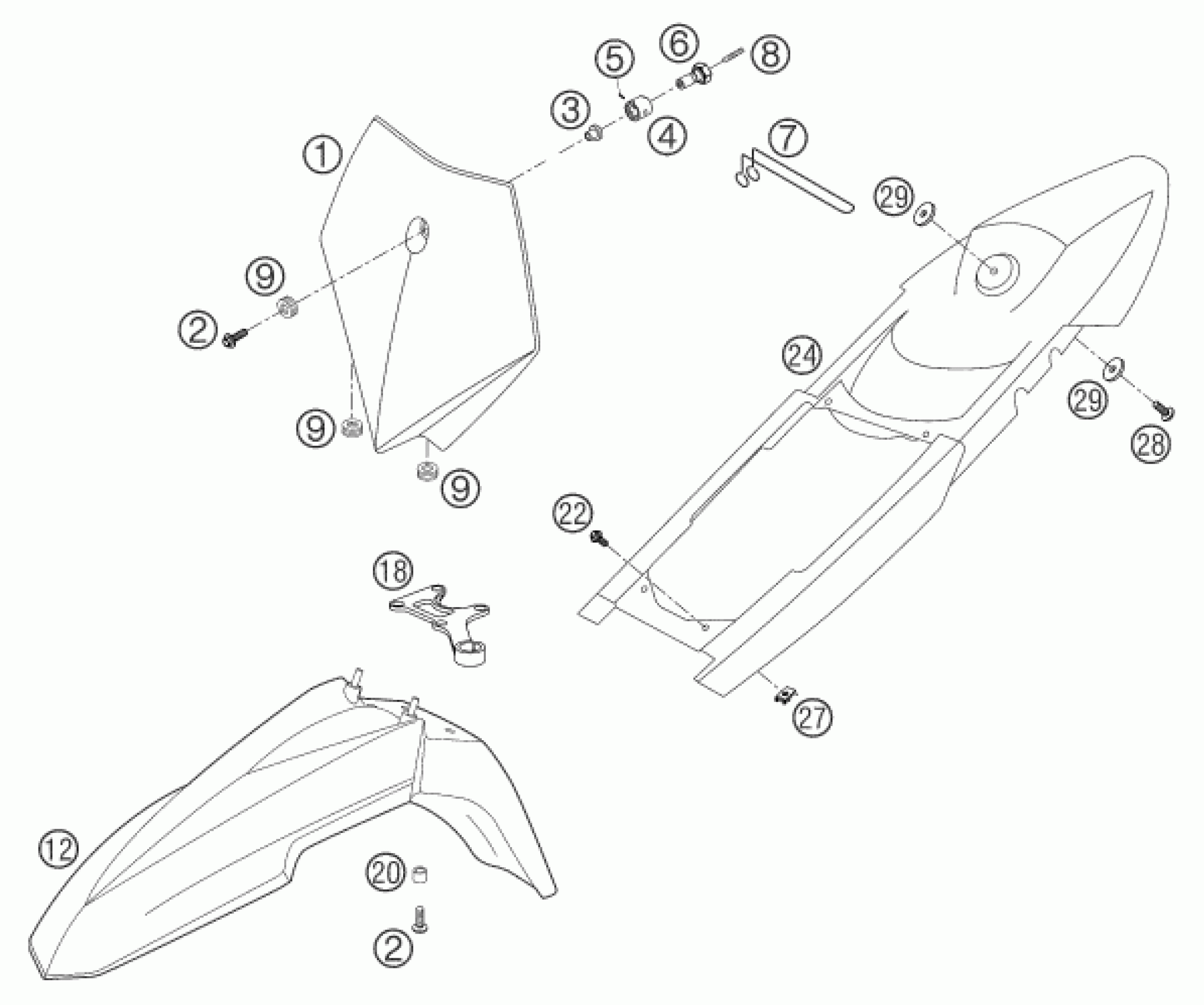

KTM 660 SMS <2004 MASK, FENDERS Diagram

* NUMBER PLATE SMS 03

HH COLLAR SCREW M 6X20 WS=8

BUSHING FOR NUMBER PLATE

SUPPORTING TUBE FOR GUIDE BOW

THREAD PIN DIN0913-M 5X5

SUPPORT FOR NUMBER PLATE 04

CABLE GUIDE SMS 2003

THREAD PIN DIN0914 M6X30

rubber grommet D=8mm open

FENDER FRONT 660 SM FACTORY 02

BRAKE HOSE GUIDE 2000

SPACER BUSHING 7X10X7,5

HH COLLAR SCREW M 5X12 WS=6

FENDER REAR CARBON 03

RANGE CHANGE METAL NUT M5

HH COLLAR SCREW M 6X15 WS=8

RUBBER WASHER 5X21X3
