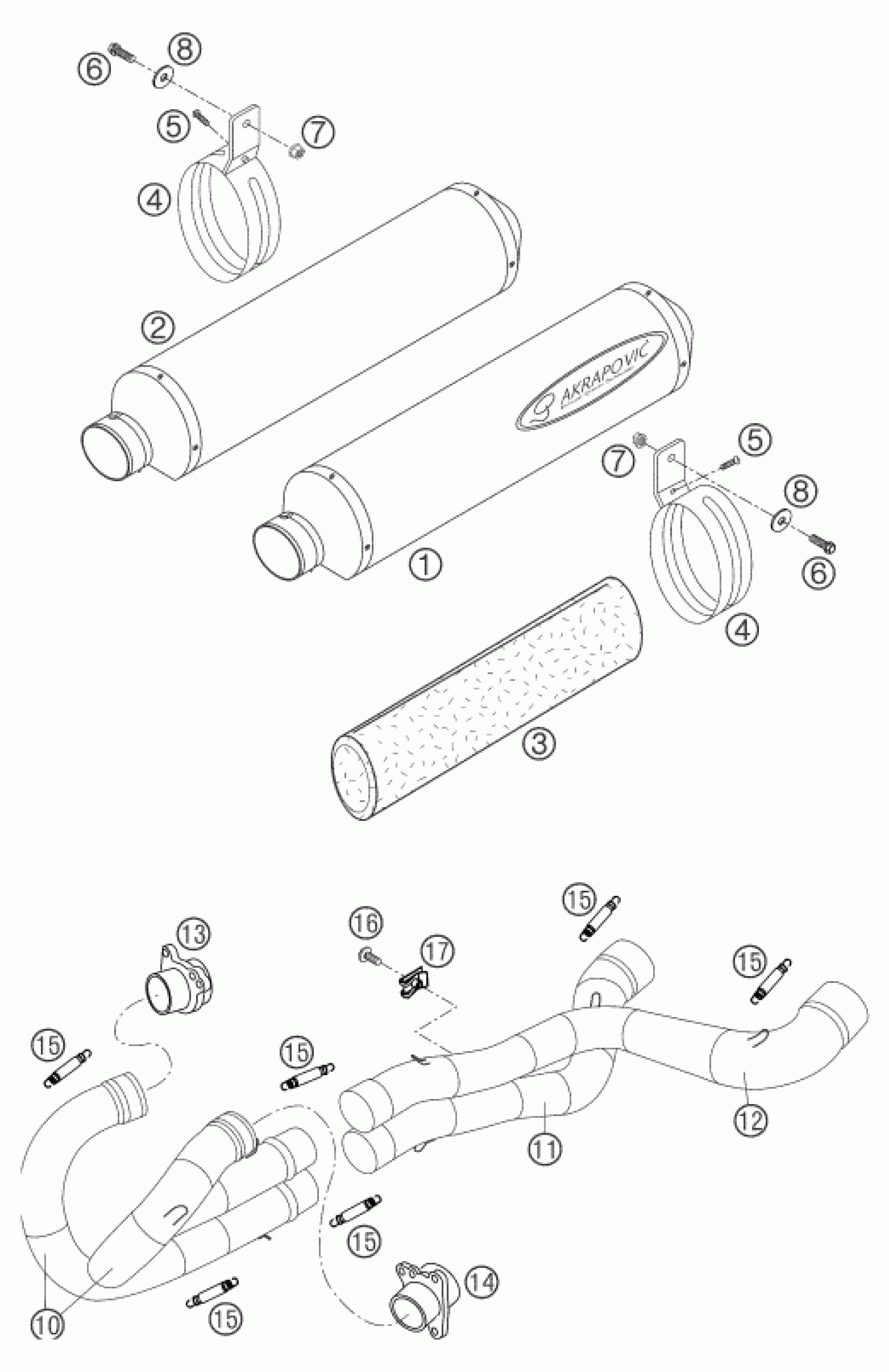

KTM 660 SMS <2004> EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST SILENCER L/S 03

57305079110

Unavailable

2

EXHAUST SILENCER R/S 03

57305079120

Unavailable

3

% STUFFING YARN 840G L=550MM

57305078840

Unavailable

4

CLAMP FOR SILENCER CARBON 04

57305095200

Unavailable

5

COUNTERSUNK SCREW DIN964 M5X16

0964050163

$1.49

6

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

7

Self locking nut M8 10.9

54310086200

$3.08

8

WASHER DIN9021-A 8,4

0021080003

$1.49

10

COLLECTOR L/S+R/S FRONT 03

57305007201

Unavailable

11

EXHAUST PIPE MID. PART R/S 03

57305007203

Unavailable

12

EXHAUST PIPE MID. PART L/S 03

57305007202

Unavailable

13

EXHST FLANGE TITAN R/S 03

57305007002

Unavailable

14

EXHST FLANGE TITAN L/S 03

57305007001

Unavailable

15

EXHAUST-SPRING WITH RUBBER 02

57305016000

$8.49

16

HH COLLAR SCREW M 6X13 WS=8

0014060133

$3.08

17

clip nut M6

54603048100

$4.11
