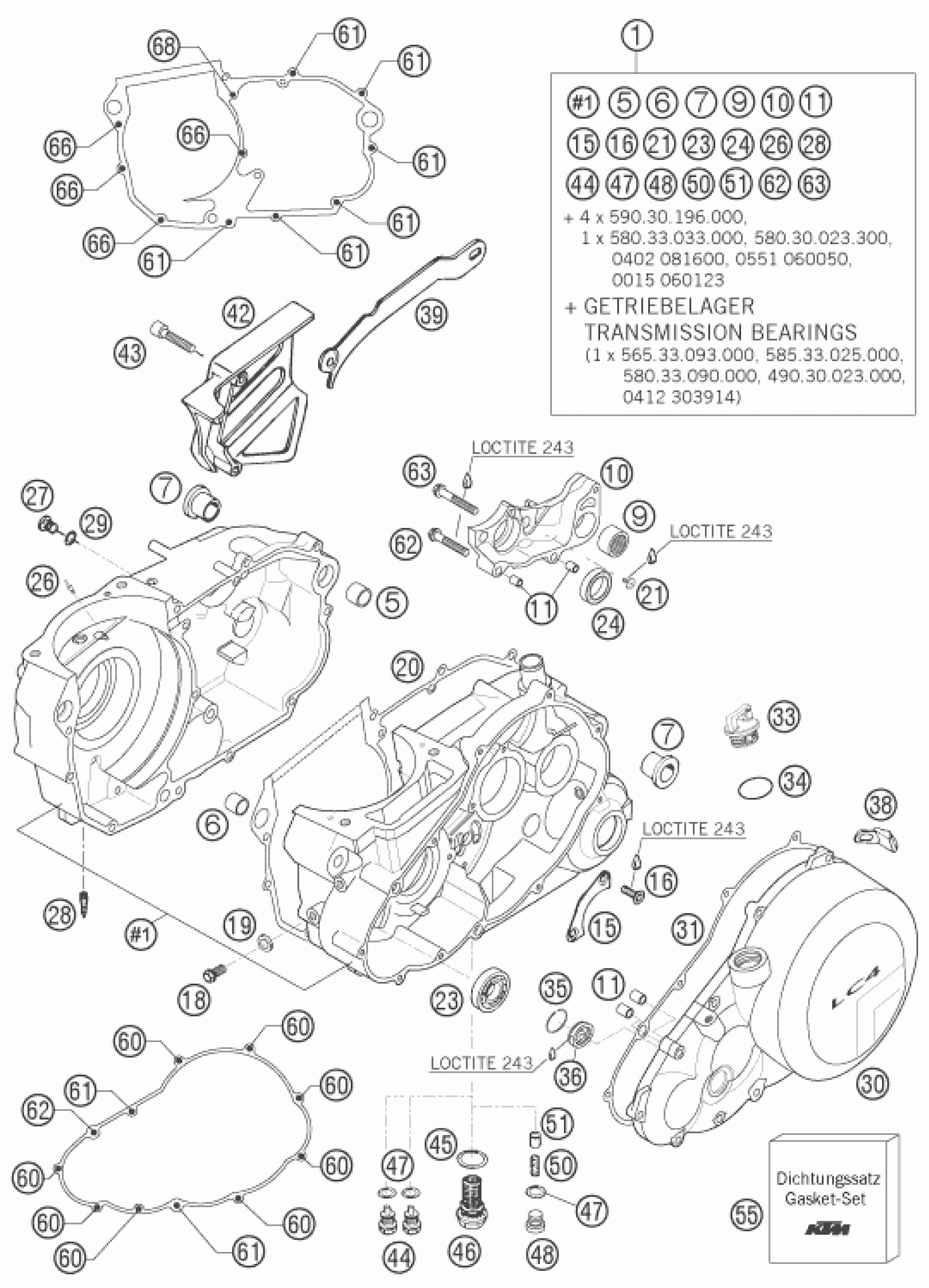

KTM 660 SMC 2006 ENGINE CASE Diagram

DOWEL 19 X15,1X12

50130027000

$5.30

DOWEL 17 X 13 X 12

51030026100

$6.44

CRANK CASE BUSH

50130010000

$21.78

ENGINE CASE CPL.W.TRAN.BEAR.03

5733000004423

Unavailable

NEEDLE BEARING HK 2216

58033097000

$14.02

SHIFT MECHANISM SUPPORT LC4'94

58330011000

$90.03

DOWEL 9,8 X 7 X 10

49030090000

$2.05

RETAINING PLATE

56530017000

$12.03

FL.HEAD SCR.DIN7991-M6X16

0991060166

$1.49

HH COLLAR SCREW M 8X16 WS=10

0015080163

$4.11

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

ENGINE CASE SIL C4302 0,5

58530039400

$23.93

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

CYLIND.ROLL.NJ 203 ECP/C3 2001

0412174012

$53.15

BALL BEARING 61805 C3

0625618050

$43.94

OIL JET 70 M6X0,75 WS8 03

60030064070

$11.49

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

$5.79

TUBE LW 3

49130450050

Unavailable

sealing ring DIN 7603 10x14x1

0603100141

$2.05

CLUTCH COVER CPL. GREY 03

5833010124423

$94.03

CLUTCH COVER GASKET 2001

58530025000

$21.96

oil plug cpl. M24x3

58030020100

$5.23

O-RING 19,00X3,00 NBR

0770191015

$2.05

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

OIL LEVEL GLASS G 1777 Y

59030019000

$21.31

BUMP RUBBER

58333041000

$6.62

CHAIN DAMPER SHEET 05

58630047100

Unavailable

CHAIN COVER BLACK '99

58030050700

$10.70

AH SCREW DIN0912-M 6X30

0912060303

$2.05

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

CU-SEAL RING DIN7603-22X27X2

58038017100

$3.08

OIL DRAIN PLUG M22X1,5

58038019100

$26.97

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

threaded plug DIN 908 M12x1.5

0908120153

$4.11

OIL PRES.SPRING 5 BAR RED 2001

58538023000

$7.94

VALVE PISTON D=10MM

58038028000

$37.77

GASKET SET LC4 2003

58430099200

$269.09

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

HH COLLAR SCREW M 6X65 WS=8

0015060653

$2.05
