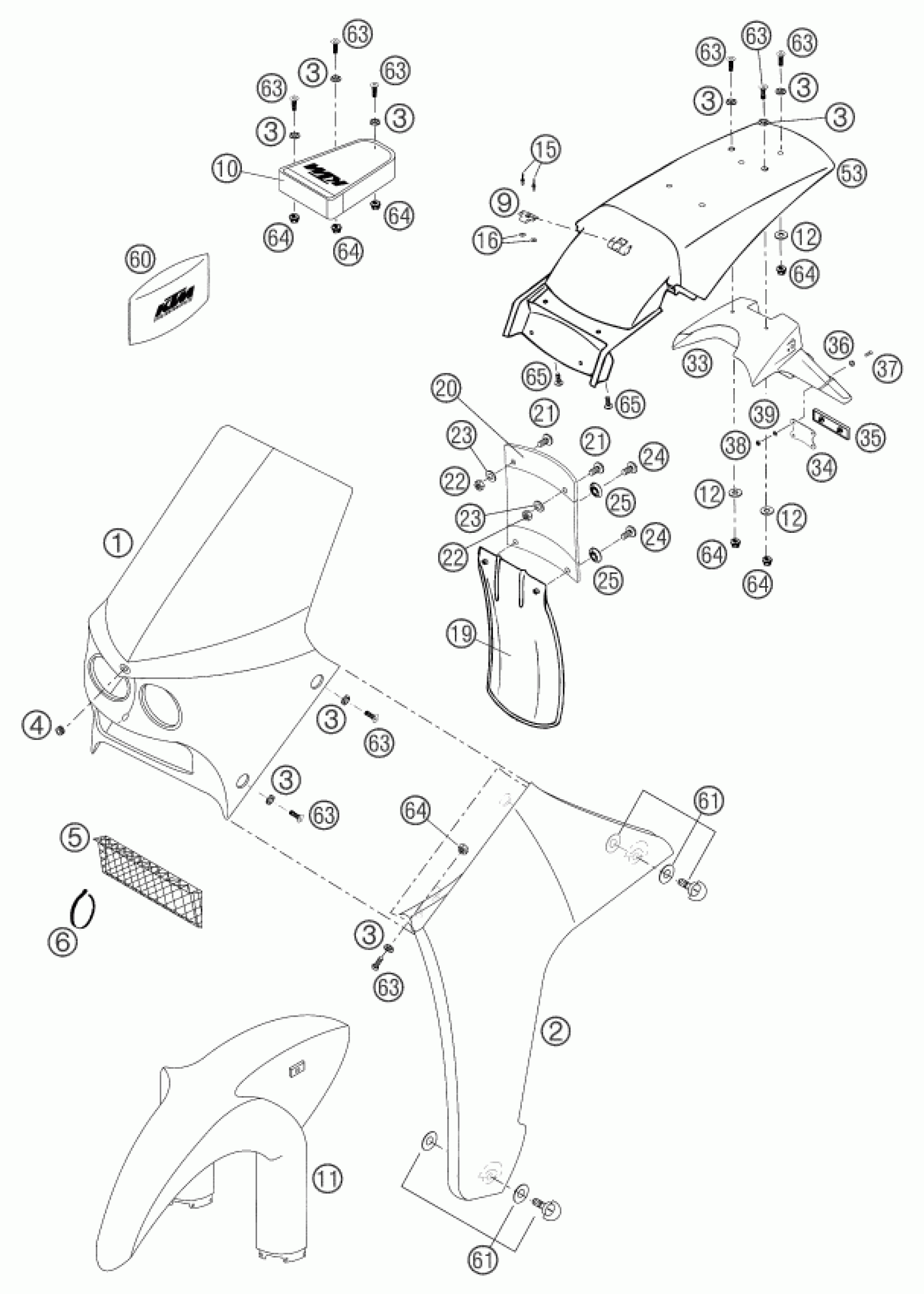

KTM 660 RALLYE FACTORY REPL. 2003 MASK, FENDERS Diagram

#

Description
Price

1

COVER MIDDLE CPL. 01

5851100400090

Unavailable

2

COVER L/S CPL. 03

5851100310090

Unavailable

2

COVER R/S CPL. 03

5851100210090

Unavailable

3

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

$4.11

4

RUBBER SLEEVE D=12MM

41001052000

$4.11

5

OIL RADIATOR GRID RALLYE 01

58512060000

Unavailable

6

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

6

Cable tie 200/4.6mm black

44011076200

Unavailable

9

THRUST BEARING QUICK RELEASE

58307042051

$4.52

10

TOOL BAG BLACK SC '99

58312078000

$16.14

11

% FENDER FRONT RALLYE SILVER

5850801010090

Unavailable

12

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

$1.49

15

DUMMY RIVET 3,0X 8 STEEL

0011320800

$1.49

16

WASHER DIN0134- 3,2

0134030003

$1.49

19

SPLASH PROTECT.FOR FILTER BOX

54606010000

$18.25

20

SPLASH PROTECTION TOP 01

58506010000

Unavailable

21

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

22

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

23

washer DIN 9021 A - 5.3

0021050003

$1.49

24

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

25

BUCKET

72210079000

$3.00

33

NUMBER PLATE CARRIER EGS '93

58308013051

$45.04

34

BRACKET FOR REFLECTOR

58412080050

$6.07

35

REFLECTOR RED

58412080000

$5.23

36

WASHER 6MM

40006006000

$1.49

37

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

38

Self locking nut DIN 985 M5

0985050003

$2.05

39

WASHER DIN0125-A 5,3

0125050003

$1.49

53

FENDER REAR RALLYE 02

5850801300004

Unavailable

60

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable

61

Quick lock

45007040051

$20.19

62

FL.HEAD SCR.DIN7991-M6X16

0991060166

$1.49

63

Flat head screw DIN7991 M6X20

0991060202

$2.05

64

Self locking nut M6 - 10

56509064100

$2.05

65

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08
