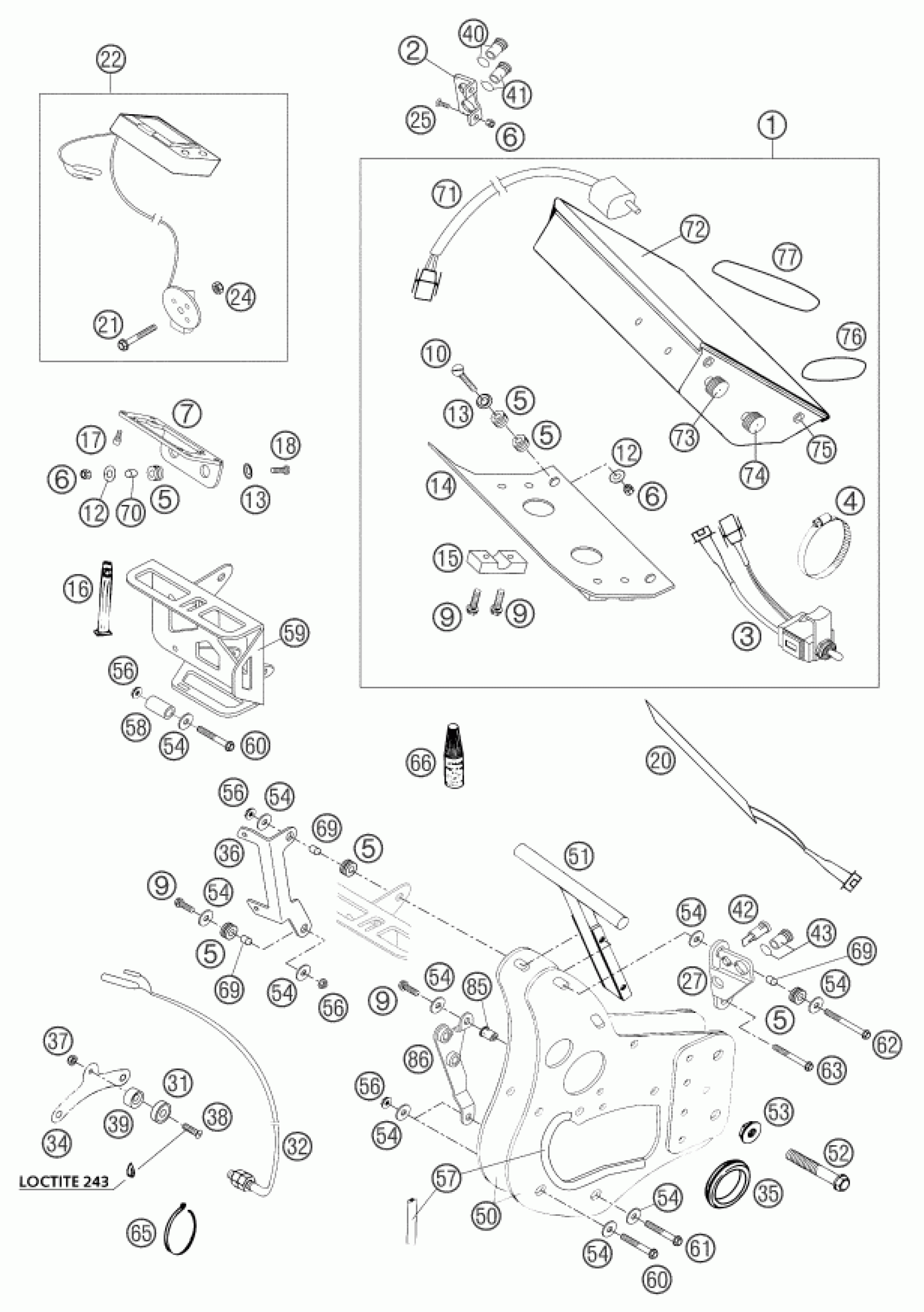

KTM 660 RALLYE FACTORY REPL. 2003 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

ROADBOOK ELECTRONIC CPL.

58512098033

Unavailable

2

BRACKET INDICATOR WATER OIL 01

58511086000

Unavailable

3

ROADBOOK SWITCH CPL. 03

58512075044

Unavailable

4

HOSE CLAMP GEMI 18-29

10001020000

$2.05

5

rubber grommet D=8mm open

31008060000

$2.05

6

Self locking nut DIN 985 M5

0985050003

$2.05

7

58512085150

Unavailable

9

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

10

FLAT HEAD SCREW DIN7991-M 5X25

0991050253

$1.49

12

washer DIN 9021 A - 5.3

0021050003

$1.49

13

WASHER 6MM

40006006000

$1.49

14

ROAD BOOK BRACKET RALLYE 2001

58312098150

Unavailable

15

MOUNTING CLAMP FOR ROADBOOK

58312098003

$17.84

16

RUBBER BAND

54611186000

$5.23

17

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

18

CYL.HEAD SCREW DIN0084-M 5X16A

0084050163

$1.49

20

LIGHT DIODE BRACKET CPL.RALLYE

58512098100

Unavailable

21

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

22

TRIPMASTER Q1 RALLYE 2001

58512085000

Unavailable

24

Self lock. nut DIN985-M6-A2

0985060003

$2.05

25

FLAT HEAD SCREW DIN0965-M 5X10

0965050103

$2.05

27

BRACKET SWITCH INDICATOR 01

58511086200

Unavailable

31

MAGNET LOOSE '97

58314069050

$27.46

32

% TRIPPMASTER CABLE CPL. RALLY

58512090050

Unavailable

34

BRACKET SENSOR MAGNET ADV. '97

58214050050

$7.79

35

SLEEVE FOR STEERING HEAD

54635022000

$1.54

36

BRACKET F. FUSE BOX 2001

58511084000

Unavailable

37

SELF LOCKING NUT DIN0985-M 4

0985040003

$1.49

38

OVAL HEAD SCREW DIN966 M4X20

0966040203

$1.49

39

BRAKE LEVER STOP '93

58303063000

$5.98

40

OIL INDICATOR LIGHT RED

58011025000

$6.44

41

TEMPERATURE WARN. LIGHT RED'98

58011022400

$6.54

42

HIGH BEAM INDICATOR LIGHT BLUE

58011021200

$9.66

43

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

50

NAVIGATIONSEQU. SUPPORT

58512189044

$186.91

51

SUPPORT FOR ROADBOOK

58512090000

Unavailable

52

HH COLLAR SCREW M 8X50 WS=10

0015080503

$2.05

53

Self locking nut M8 10.9

54310086200

$3.08

54

Washer DIN9021-A 6.4

0021060003

$2.05

56

Self locking nut M6 - 10

56509064100

$2.05

57

EDGE PROTECTOR PER METER

58312085100

Unavailable

58

SPACER BUSHING NAV.SUPPORT 01

58512005000

Unavailable

59

SUPPORT F.TROUBL.ST. RALLYE'01

58512077100

Unavailable

60

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

61

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

62

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

63

HH COLLAR SCREW M 6X65 WS=8

0015060653

$2.05

65

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

65

Cable tie 200/4.6mm black

44011076200

Unavailable

65

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

66

LOCTITE 243 BLUE 5 ML

6899785

$28.04

69

SPACER BUSHING 6X8X8,5

54431032050

$1.49

70

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.05

71

ROADBOOK ENGINE CPL. 03

58512074044

Unavailable

72

PLASTIC COVER FOR ROADBOOK 03

58512074020

Unavailable

73

ALU-BUTTON TOP FOR ROADBOOK 03

58512074030

Unavailable

74

ALU-BUTTON BASE F. ROADBOOK 03

58512074040

Unavailable

75

PLASTIC BUSHING F. ROADBOOK 03

58512074050

Unavailable

76

O-RING FOR ROADBOOK SHORT 03

58512074060

Unavailable

77

O-RING FOR ROADBOOK LONG 03

58512074070

Unavailable

85

BLIND RIVET NUT M 6X15,5 STEEL

55003139600

$1.49

86

BRACKET FOR DIGI-BOX RALLYE

58512086050

$19.83
