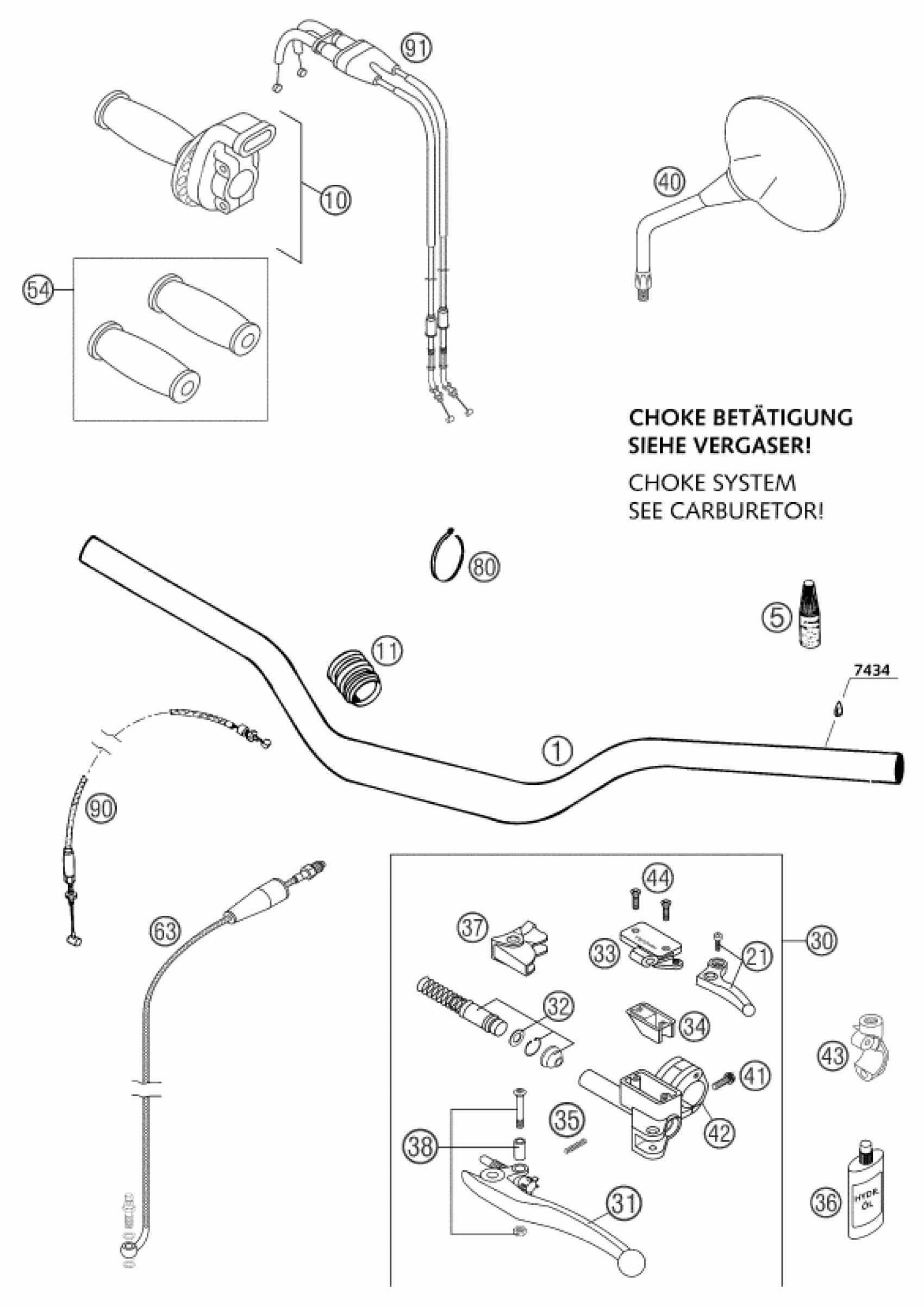

KTM 660 RALLYE FACTORY REPL. 2003 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR ALU LC4, ADVENTURE02

58402001000

$138.10

5

GRIP GLUE

6899792

Unavailable

10

THROTTLE GRIP 02

58502010000

Unavailable

11

RUBBER SLEEVE D=21MM/23MM '93

54605057000

$20.66

21

LEVER CPL. RACING 2000

59002047000

$23.00

30

MASTER CYLINDER CPL. RACING 03

59002030100

$278.41

31

CLUTCH LEVER LONG CPL. 2003

59002031000

$40.10

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

Unavailable

32

REP.KIT PISTON 9,5MM RAC. 2000

59002032000

$62.71

33

COVER HYD.CLUTCH RACING 2000

59002033000

$41.51

34

RUBBER FOR RESERVOIR '98

50302034000

$18.97

35

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

38

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

40

Rear view mirror, left/right

58412040100

$65.63

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

42

CLAMP WITH PIN 2000

50302030150

$33.18

43

CLAMP MIRROR WITH PIN

59002044000

$39.26

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

54

RUBBER GRIPS PER GRIP 96-05

58502039044

Unavailable

63

CLUTCH PIPE 125/200 2003

50332063100

$70.18

80

Cable tie 200/4.6mm black

44011076200

Unavailable

90

DECOMPRESSION CABLE LC4 '93

58302094000

$29.35

91

THR.CABLE''OPEN-CLOSE'' RAC.20

59002091200

$54.59
