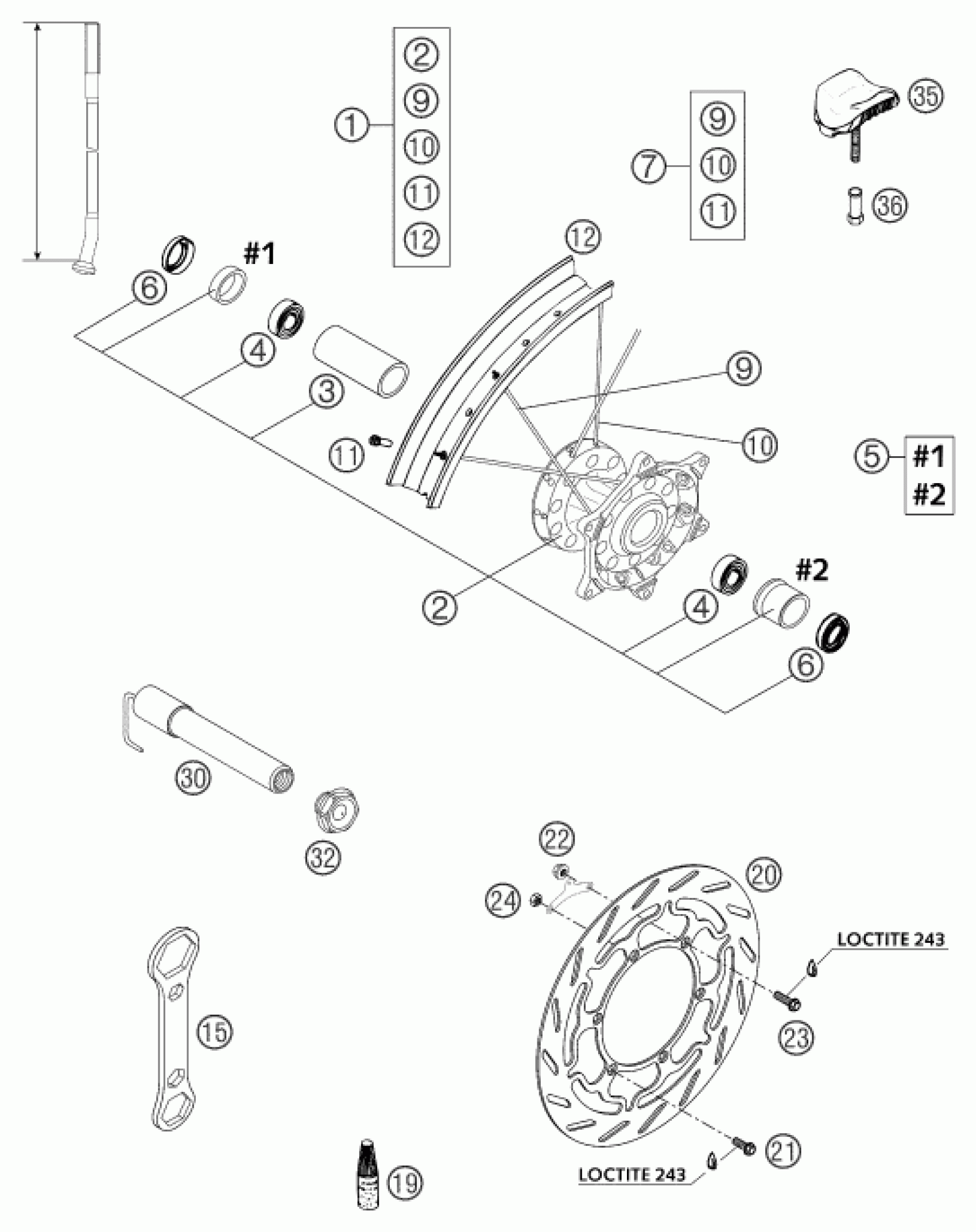

KTM 660 RALLYE FACTORY REPL. 2003 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. RALLY 2001

58509010000

Unavailable

2

FRONT HUB MILLED RALLY 01

58509009000

Unavailable

3

BEAR.SPACER BUSHING

58509011000

Unavailable

4

GROOV.BALL BEAR. 61906-2RS1

0625061906

Unavailable

5

SPACER BUSHINGS SET FR.WHEEL02

58509013044

$39.74

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

SPOKES CPL. RALLY 2001

58509069000

Unavailable

9

SPOKE L/S FR. WHEEL RALLYE 01

58509071000

Unavailable

10

SPOKE R/S FR. WHEEL RALLYE 01

58509171000

Unavailable

11

SPOKE NIPPLE FOR RALLY 2001

58509072000

Unavailable

12

FRONT RIM 1,60X21'' 36H RALLY0

58509070100

Unavailable

15

KEY F. FRONT AXLE SCREW

58509083000

Unavailable

19

LOCTITE 243 BLUE 5 ML

6899785

$28.04

20

BRAKE DISK FRONT D=300MM '96

58309060100

$287.50

21

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

22

Self locking nut M6 - 10

56509064100

$2.05

23

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

24

HEXAGON NUT DIN0439-M 6 LOW

0439060003

Unavailable

30

FRONT AXLE D=30MM

58509081000

Unavailable

32

COLLAR SCREW FRONT AXLE 03

58509082000

Unavailable

35

RIM LOCK VM1 (1,60'')

51009100100

$17.57

36

NUT FOR WHEEL HOLDER '96

50310090050

$5.23
