1987 Kawasaki 650 SX Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1987 Kawasaki 650 SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

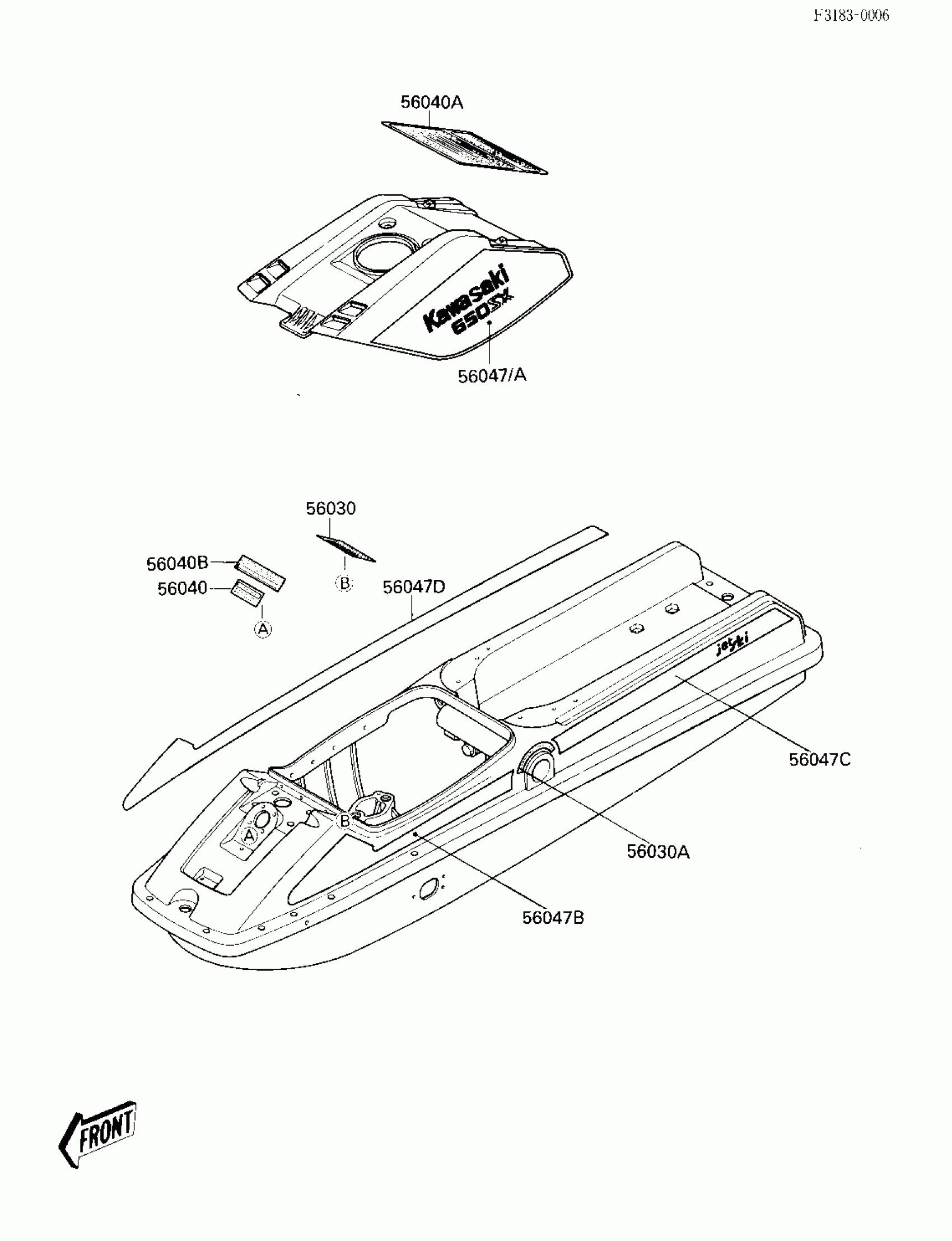

1987 Kawasaki 650 SX Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56030

LABEL,OIL

56030-3721

1

$1.81

In stock

56030A

LABEL,FIRE EXTINGUISHER

56030-3726

1
Out of stock

56040

LABEL-WARNING,FUEL

56040-3712

1
Out of stock

56040A

LABEL-WARNING,MAINTENANCE

56040-3729

1
Out of stock

56040B

LABEL-WARNING,BREAK-IN

56040-3738

1
Out of stock

56047

PATTRN,ENGINE HOOD,LH

56047-1513

1
Out of stock

56047A

PATTRN,ENGINE HOOD,RH

56047-1514

1
Out of stock

56047B

PATTRN,HULL-COMP,LH F

56047-1515

1
Out of stock

56047C

PATTRN,HULL-COMP,LH R

56047-1516

1
Out of stock

56047D

PATTERN,HULL-COMP,RH

56047-1517

1
Out of stock
