1987 Kawasaki 650 SX Hull Fittings Diagram

← All diagrams

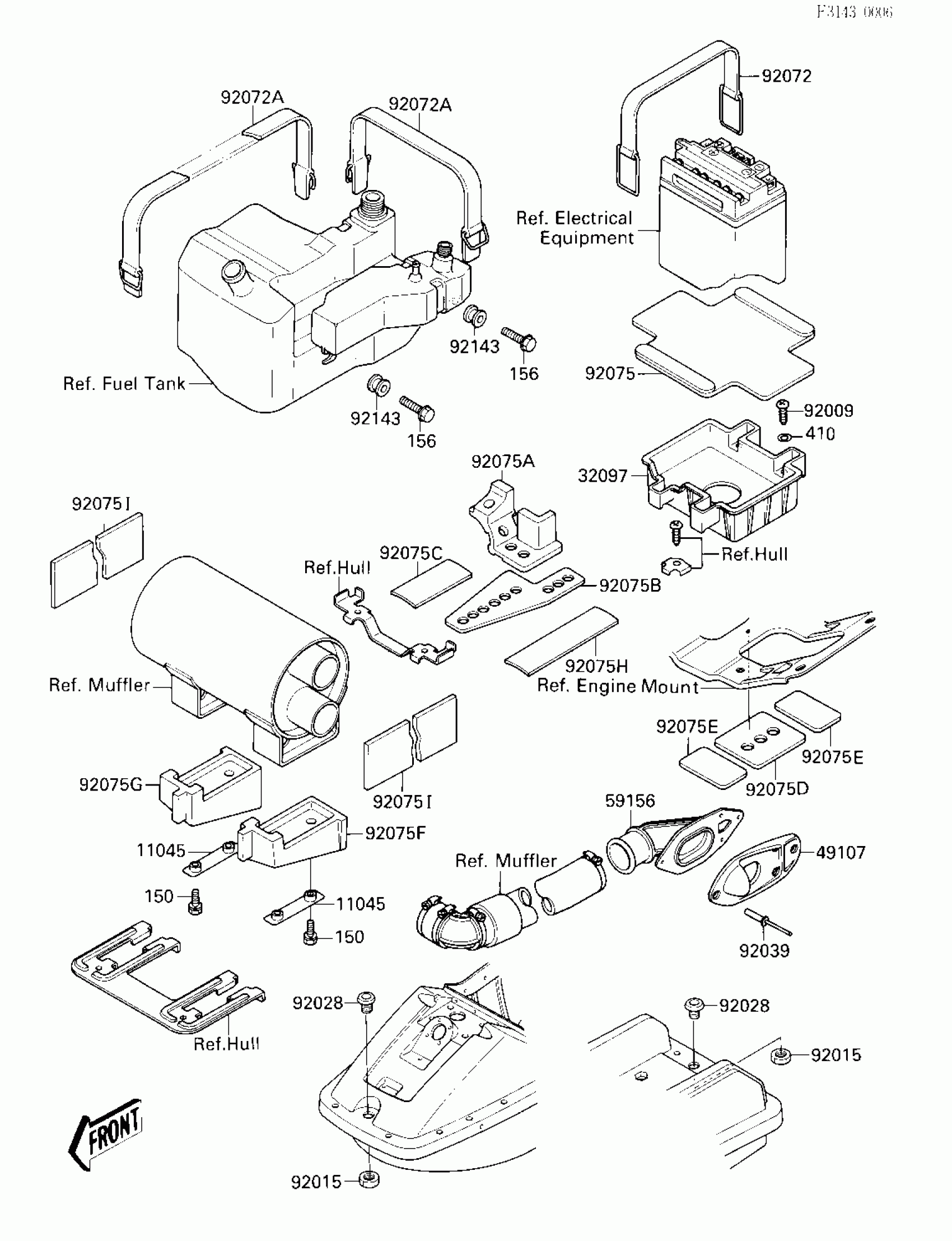

Find the part on the Hull Fittings diagram for your 1987 Kawasaki 650 SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki 650 SX Hull Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET

11045-3764

1
Out of stock

32097

CASE-BATTERY

32097-3702

1
Out of stock

49107

COVER-EXHAUST PIPE

49107-3705

1
Out of stock

59156

PIPE-TAIL

59156-3703

1
Out of stock

92009

SCREW,TAPPING

92011-561

1
Out of stock

92015

NUT,20MM

92015-3721

1
Out of stock

92028

BUSHING,L=18

92028-3724

1
Out of stock

92039

RIVET

92039-3722

1
Out of stock

92072

BAND,BATTERY,L=366

92072-3706

1
Out of stock

92072A

BAND,L=544

92072-3709

1
Out of stock

92075

DAMPER,BATTERY

92075-3714

1
Out of stock

92075A

DAMPER,FUEL TANK,RR

92075-3754

1
Out of stock

92075B

DAMPER,FUEL TANK,CNT

92075-3755

1
Out of stock

92075C

DAMPER,FUEL TANK,RH

92075-3756

1
Out of stock

92075D

DAMPER

92075-3758

1
Out of stock

92075E

DAMPER

92075-3759

1
Out of stock

92075F

DAMPER

92075-3763

1
Out of stock

92075G

DAMPER

92075-3764

1
Out of stock

92075H

DAMPER,FUEL TANK

92075-521

1
Out of stock

92075I

DAMPER,MUFFLER

92075-522

1
Out of stock

92143

COLLAR

92143-3705

1
Out of stock

150

BOLT-WS,6X22

150R0622

1
Out of stock

156

BOLT-WP,6X22

156R0622

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock
