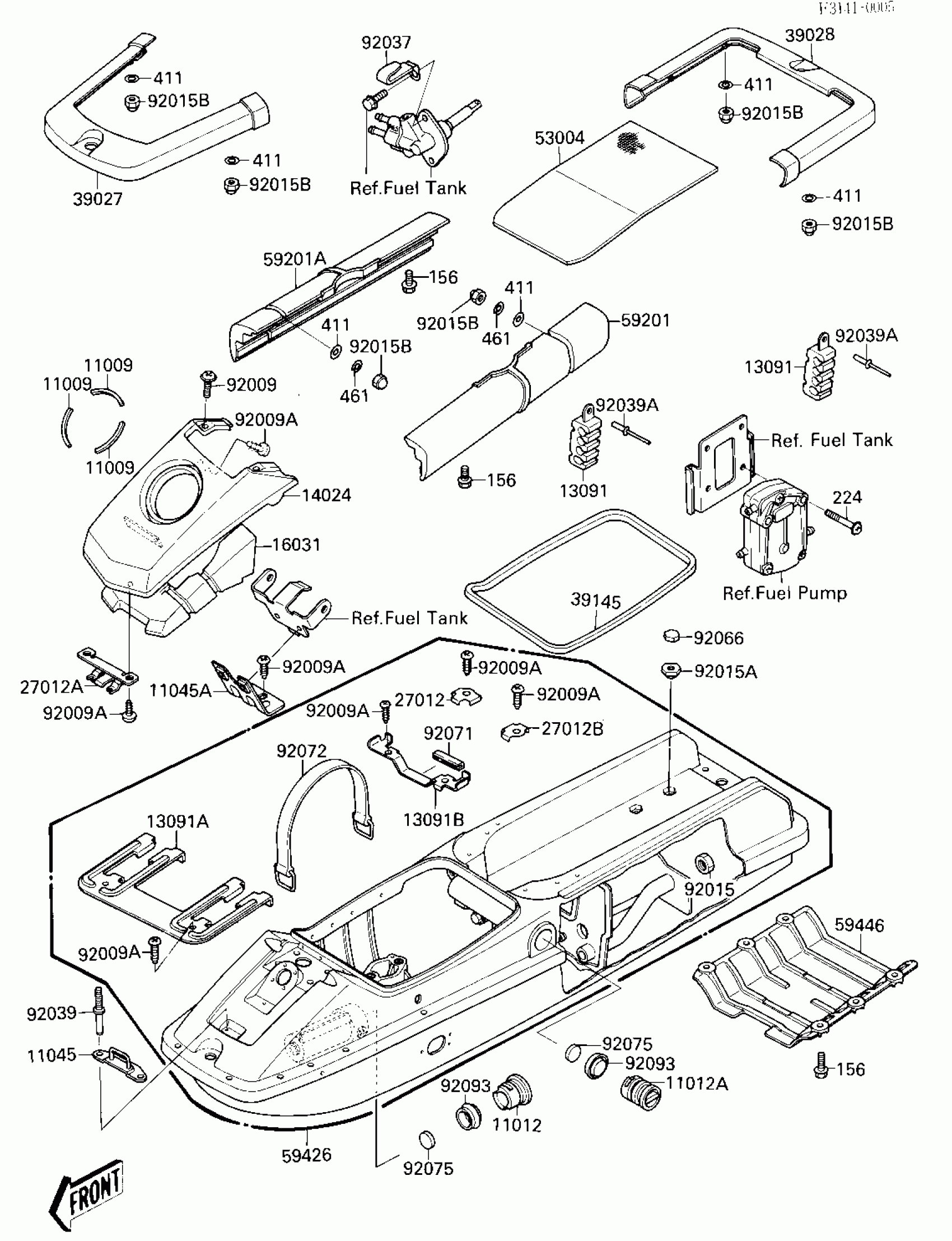

Kawasaki 650 SX HULL Diagram

#

Description
Price

11009

GASKET,CAP

11009-3732

$1.95

11012

CAP

11012-3708

$8.81

11012A

CAP

11012-3746

Unavailable

11045

BRACKET,FRONT DECK

11045-3730

Unavailable

11045A

BRACKET,CENTER

11046-3836

Unavailable

13091

HOLDER

13091-3715

Unavailable

13091A

HOLDER

13091-3722

Unavailable

13091B

HOLDER

13091-3725

Unavailable

14024

COVER,TANK CAP,S,RED

14024-5197-H1

Unavailable

16031

FLOAT

16031-3784

Unavailable

27012

UNAVAILABLE IN PRICE BOOK

127012-3713

Unavailable

27012A

HOOK,FRONT DECK

27012-3755

Unavailable

27012B

HOOK

27012-501

Unavailable

39027

BUMPER-FRONT

39027-3706

$123.20

39028

BUMBER,SET

99996-1140

Unavailable

39145

TRIM-SEAL

39145-3706

Unavailable

53004

MAT,DECK

53004-3722

$184.44

59201

BUMPER,SIDE,LH

59201-3707

$575.90

59201A

BUMPER,SIDE,RH

59201-3708

$544.34

59426

HULL-COMP,JET WHITE

59426-5510-8C

$1,240.21

59446

COVER-JET PUMP

59446-3705

$149.87

92009

SCREW,5X16

92009-3726

Unavailable

92009A

SCREW,TAPPING

92011-561

Unavailable

92015

NUT,20MM

92015-3738

$7.22

92015A

NUT,8MM

92015-3744

$14.03

92015B

NUT,CAP,6MM

92015-3755

$4.59

92037

CLAMP,L=100

92037-3736

$4.85

92039

RIVET

92039-3702

Unavailable

92039A

RIVET

92039-3714

$0.79

92066

PLUG

92066-3713

$3.81

92071

GROMMET

92071-3755

$1.24

92072

BAND,L=384

92072-3713

Unavailable

92075

DAMPER

92075-3719

$7.48

92093

SEAL,OSR70X82X7.5

92093-3704

Unavailable

156

BOLT-WP,6X20

156R0620

$2.76

224

SCREW-PAN-WP-CROS,6X40

224R0640

$2.95

411

WASHER-PLAIN,6MM

411S0600

$1.49

461

WASHER-SPRING,6MM

461S0600

$0.84
