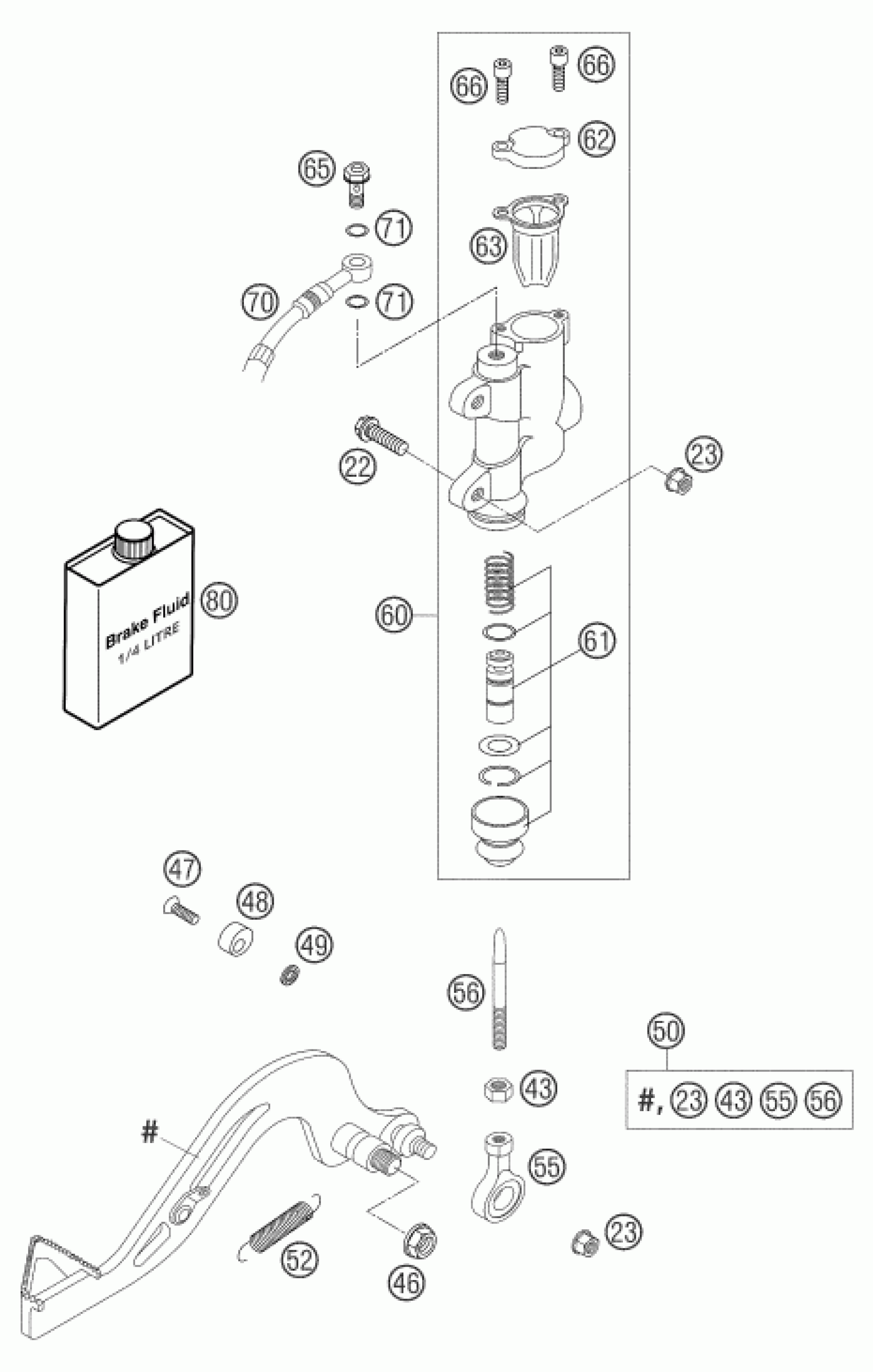

KTM 65 SX 2004 REAR BRAKE CONTROL Diagram

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

Self locking nut M6 - 10

56509064100

$2.05

Hex. nut DIN 934 M6

0934060003

$1.49

Self locking nut M8 10.9

54310086200

$3.08

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

BRAKE LEVER STOP '93

58303063000

$5.98

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

REAR BRAKELEVER CPL.60/65 20

46003060244

Unavailable

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

PRESSURE ROD ALU 250 '90

54603068000

$6.35

REAR BRAKE CYL. 50+65 04

46113060000

$152.12

REP. SET PISTON REAR D=11 2003

47013061000

$42.16

CYLINDER COVER REAR 85 SX 03

47013062000

$8.87

GASKET CYLINDER COVER REAR 03

47013063000

$10.74

HOLLOW SCREW M6

46113325000

$19.63

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

BRAKE HOSE REAR 65 SX 04

46113070000

$70.40

O-ring 6.00X1.00 FORMULA

0770060019

$2.05

BRAKE FLUID DOT 4.0

306054

Unavailable
