Description

Price

1

RADIATOR 65SX 2002

46135008000

$182.92

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

4

RADIATOR PROTECTOR L/S 60165

54535034000

$11.36

6

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

8

PREFORMED HOSE CYL.-RADI. 2002

46135026000

$13.74

10

PREFORMED HOSE WAPU-RADI. 2002

46135027000

$17.85

13

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

15

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

18

Washer DIN9021-A 6.4

0021060003

$2.05

19

RUBBER SLEEVE D=12MM

41001052000

$4.11

20

HOSE CLAMP GEMI 12/22

42013037200

$2.05

23

Cable tie 200/4.6mm black

44011076200

Unavailable

23

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

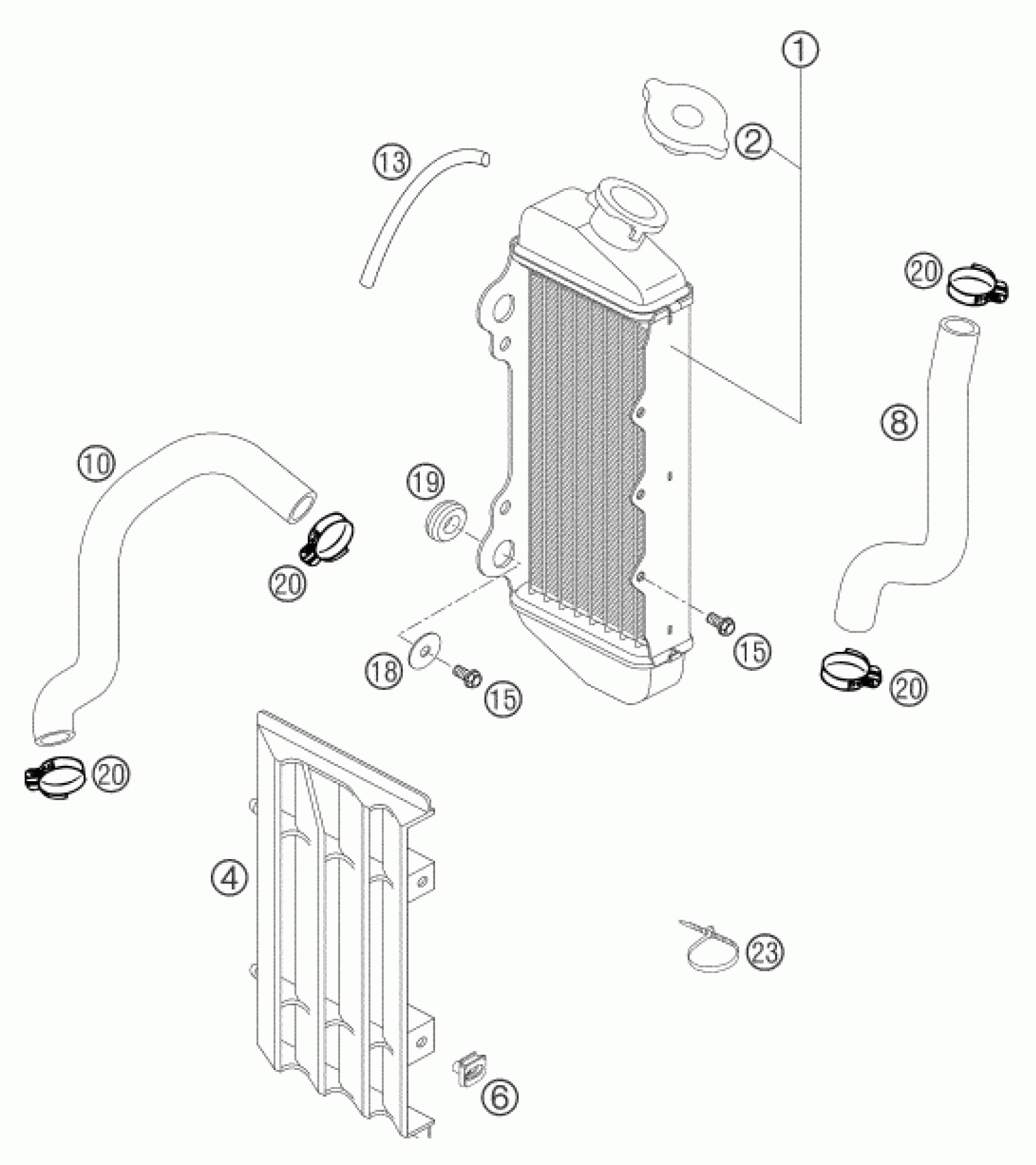

KTM 65 SX 2004 COOLING SYSTEM Diagram

RADIATOR 65SX 2002

RADIATOR CAP SMALL 20,3 PSI

RADIATOR PROTECTOR L/S 60165

SNAP-NUT HOLDER M6 KP142

PREFORMED HOSE CYL.-RADI. 2002

PREFORMED HOSE WAPU-RADI. 2002

PVC-HOSE 6X9 MM PER METER

HH COLLAR SCREW M 6X12 WS=8

Washer DIN9021-A 6.4

RUBBER SLEEVE D=12MM

HOSE CLAMP GEMI 12/22

Cable tie 200/4.6mm black

CABLE TIE 300/4,8MM BLACK
