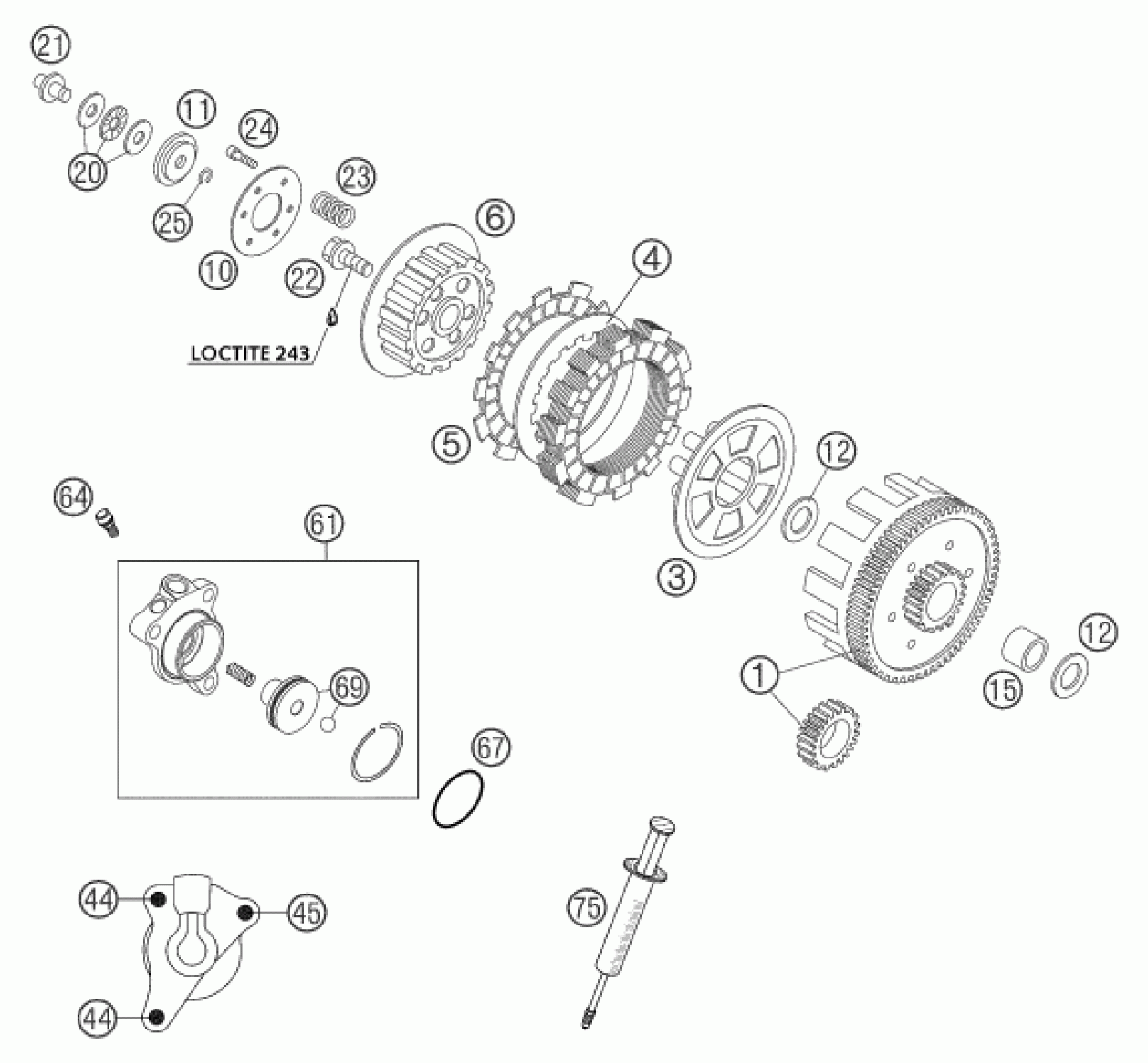

KTM 65 SX 2004 CLUTCH Diagram
#
Description
Price
1
PRIM.DR.W.CLUTCH HUB 23:75 '99
46032000144
$393.91
3
PRESSURE CAP 60/65 CCM '98
46032003000
$76.10
4
INTERMEDIATE DISK STEEL
46032010000
$12.33
5
LINING DISK
46032011000
$13.40
6
INNER CLUTCH HUB 60/65 CCM '98
46032002000
$95.92
10
SPRING RETAINER 25X63,5X2
46032006000
$28.70
11
CARRIER FOR AXIAL BEARING
46032008000
$6.13
12
STOP DISK 17,2X30X1,5
49032012000
$3.48
15
INNER RING 22X17X20,5
46032015000
$30.05
20
AXIAL BEARING 6X19X2
46032056000
$24.55
21
PRESSURE PIECE 65 SX 2002
46032054100
$15.57
22
HH COLLAR SCREW M10X20
46032019000
$5.70
23
CLUTCH SPRING REINFORCED 60/65
46032005100
$3.08
24
FLAT H.SCREW DIN7991-M6X20
0991060203
$2.05
25
CIRCLIP DIN0471-6X0,7
0471006007
$1.49
44
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
45
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
61
OUTPUT CYLINDER CPL. 27MM 03
59032061044
$240.75
64
BLEEDER SCREW WITH CAP
54732064000
$21.96
67
O-ring 30x1.5 NBR 70
0770300015
$2.05
69
PISTON + O-RING + BALL 27MM
59032066000
$240.75
75
VENT INJEKTION HYDR. CLUTCH
50329050000
$75.26
