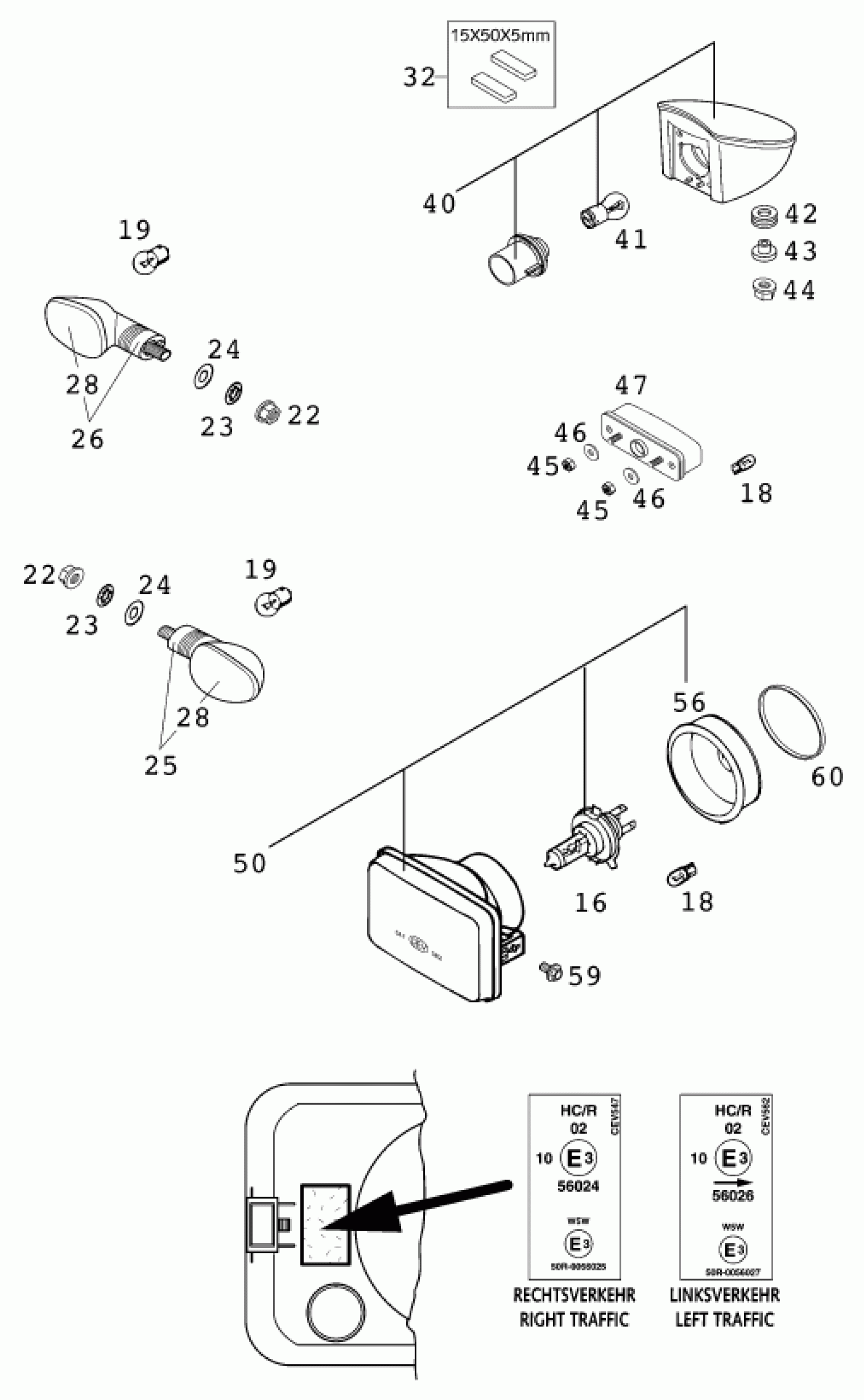

KTM 640 LC4-E S.MOTO PRESTIGE 2000 LIGHTING SYSTEM Diagram

BULB H4 12V 60/55W (P43T)

57111038000

$43.56

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

BULB 12V 10W (BA15S)

44111015100

$3.08

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

washer DIN 125 A 10.5

0125100003

$2.05

FLASHER CPL.FRONT L/S REAR R/S

5841402500030

$28.70

FLASHER CPL.FRONT R/S REAR L/S

5841402600030

$27.95

FLASHER LENS L/S & R/S '98

58414028000

$6.72

METAMOLL FOR BATTERY BRACKET

58411055150

$4.20

REAR LIGHT CPL. LC4 '98

58414040000

Unavailable

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

RUBBER SLEEVE D=12MM

41001052000

$4.11

BUSHING

54635036000

$1.49

Self locking nut M6 - 10

56509064100

$2.05

Self locking nut DIN 985 M5

0985050003

$2.05

washer DIN 9021 A - 5.3

0021050003

$1.49

LICENSE-PLATE ILLUMINATION '98

58414047000

$14.67

HEAD LIGHT CEV 547 RIGHT/S. H4

58414001100

$107.31

RUBBER CAP

50211537000

$3.48

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

* RING D=50X1,5X6

58414002000

Unavailable
