TANK, SEAT

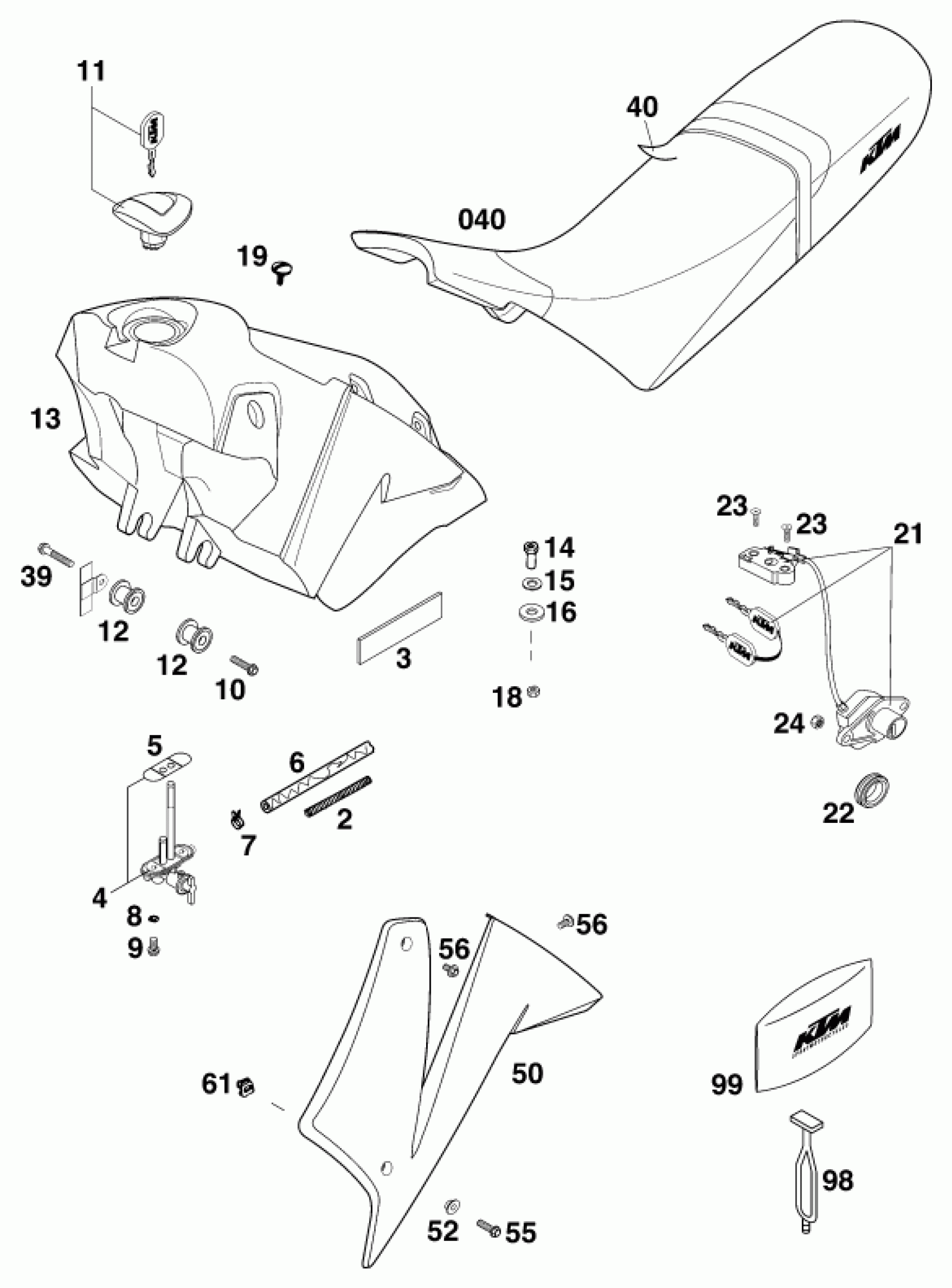

KTM 640 DUKE II - LIME <2000 TANK, SEAT Diagram
#
Description
Price
2
PRESSURE SPRING 0,9MM
58036006100
$1.49
3
RUBBER STRIP 85X25X3 MM
54601097000
$1.49
4
FUEL COCK CPL.MIKUNI CK-69 '96
51107004000
$69.37
5
GASKET FUEL COCK MIKUNI
58307106100
$6.82
6
HOSE ID 7,5 PER METER
54435024001
Unavailable
7
CLAMP YDNAC 10128 12MM
58031005000
$3.08
8
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
9
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
10
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
11
TANK PLUG LC4 USA '99
58407008100
$112.94
12
TANK BUSHING CPL. 12 X 34 X 25
58307113250
$10.20
13
58407013144
Unavailable
14
SPECIAL NUT M8
58307014000
$6.26
15
WASHER 10,5 X 25 X 1,5
58307019000
$2.05
16
INSOLATE WASHER 12X28X3
51005067100
$2.05
18
Hexagon nut DIN934 M8
0934080003
$2.05
19
OVAL HEAD SCREW M6X15
58007044000
$4.35
21
SEAT LOCK DUKE '99
58707050000
$51.72
22
RUBBER SLEEVE F.SEAT LOCK '99
58707050050
$3.08
23
FLAT HEAD SCREW DIN7991-M 5X25
0991050253
$1.49
24
Self locking nut DIN 985 M5
0985050003
$2.05
39
HH COLLAR SCREW M 6X30 SW=8
0015060303
$3.08
40
SEAT TITAN/BLACK DUKE '99
58707040000
Unavailable
40
SEAT COVER TITAN/SCHW. '99
58707040050
$38.48
40
SEAT LIME/BLACK DUKE '99
58707040100
$105.33
40
SEAT COVER LIME/BLACK '99
58707040150
$45.90
50
SPOILER L/S TITAN/METAL '99
58408050000
Unavailable
50
SPOILER L/S LIME/METAL '99
5840805000036
Unavailable
50
SPOILER R/S TITAN/METAL '99
58408051000
Unavailable
50
SPOILER R/S LIME/METAL '99
5840805100036
Unavailable
52
BUSH FOR SPOILER 6X11X16X5 MM
50308052000
$1.96
55
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
56
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
61
SNAP-NUT HOLDER M6 KP142
50235033300
$4.11
98
RUBBER L=145MM
50303018000
$6.44
99
TOOL SET DUKE '99
58729099000
$78.49
