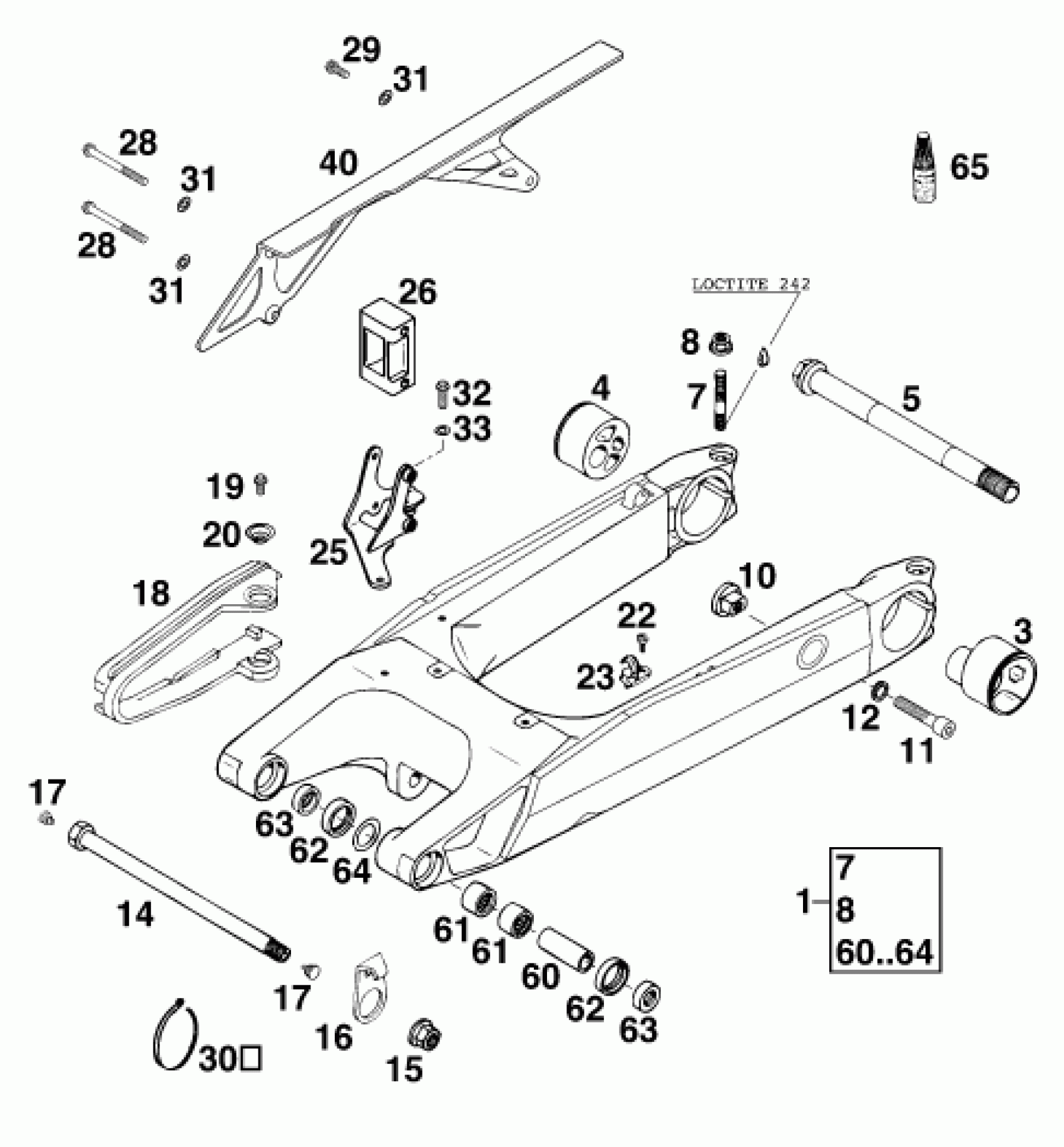

KTM 640 DUKE II - LIME <2000> SWING ARM Diagram

#

Description

Price

1

SWINGARM CPL. 563MM DUKE'99

58704030044

Unavailable

3

ECCENTRICS L/S '94

58303030011

Unavailable

4

ECCENTRICS R/S '94

58303130011

Unavailable

5

WHEEL SPINDLE REAR L=232MM '94

58310085000

Unavailable

7

STUD DIN0835-M10X45

0835100456

Unavailable

8

COLLAR NUT M10 WS=13

54630044000

Unavailable

10

BRAKE CARRIER SUPPORT

58313050000

Unavailable

11

AH SCREW DIN0912-M10X45

0912100453

Unavailable

12

PAIR OF WASHERS M10 NORDLOCK

50233041100

Unavailable

14

54603014000

Unavailable

15

Self locking nut M14x1.5 WS19

54603015000

Unavailable

16

BRAKE HOSE GUIDE '89

50230211000

Unavailable

17

PLASTIC CAP SFL10

54403135000

Unavailable

18

CHAIN SLIDING GUARD DUKE'94

58307073000

Unavailable

19

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

20

BUCKET

72210079000

Unavailable

22

SPECIAL SCREW M 5,0X10

0010050103

Unavailable

23

RETAINING CLAMP FOR BRAKE HOSE

54611076000

Unavailable

25

BRACKET CHAIN GUIDE DUKE

58307068000

Unavailable

26

CHAIN GUIDE DUKE'

51007066400

Unavailable

28

HH COLLAR SCREW M 6X55 WS=8

0015060553

Unavailable

29

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

30

Cable tie 200/4.6mm black

44011076200

Unavailable

31

WASHER DIN0125-A 6,4

0125060003

Unavailable

32

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

33

WASHER DIN0125-A 6,4

0125060003

Unavailable

40

CHAINGUARD ALU DUKE '

58707060000

Unavailable

60

BUSHING SLEEVE 15X20X38,75

50203081700

Unavailable

61

NEEDLE BUSH HK 2012

50203097000

Unavailable

62

radial shaft seal 25x32x7

0760253270

Unavailable

63

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

Unavailable

64

STOP DISK 22,2X31,7X1

54603036000

Unavailable

65

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
